4
5 Connecting the CDA-SV20 and CDA-V20
This section describes how to connect the:
CDA-SV20 1:2 s-Video DA, see section 5.1
CDA-V20 1:2 Video DA, see section 5.2
5.1 Connecting the CDA-SV20 1:2 s-Video DA
To connect the CDA-SV20 1:2 s-Video DA, as the example in Figure 3
illustrates, connect the following 1 :
1. Connect an s-Video source (for example, an s-Video player) to the
INPUT 4p connector.
2. Connect the 2 OUT 4p connectors to up to 2 acceptors, as follows:
The OUT 1 connector to acceptor 1 (for example, an s-Video recorder 1)
The OUT 2 connector to acceptor 2 (for example, an s-Video recorder 2)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. Adjust the C and Y Gain levels, if required.

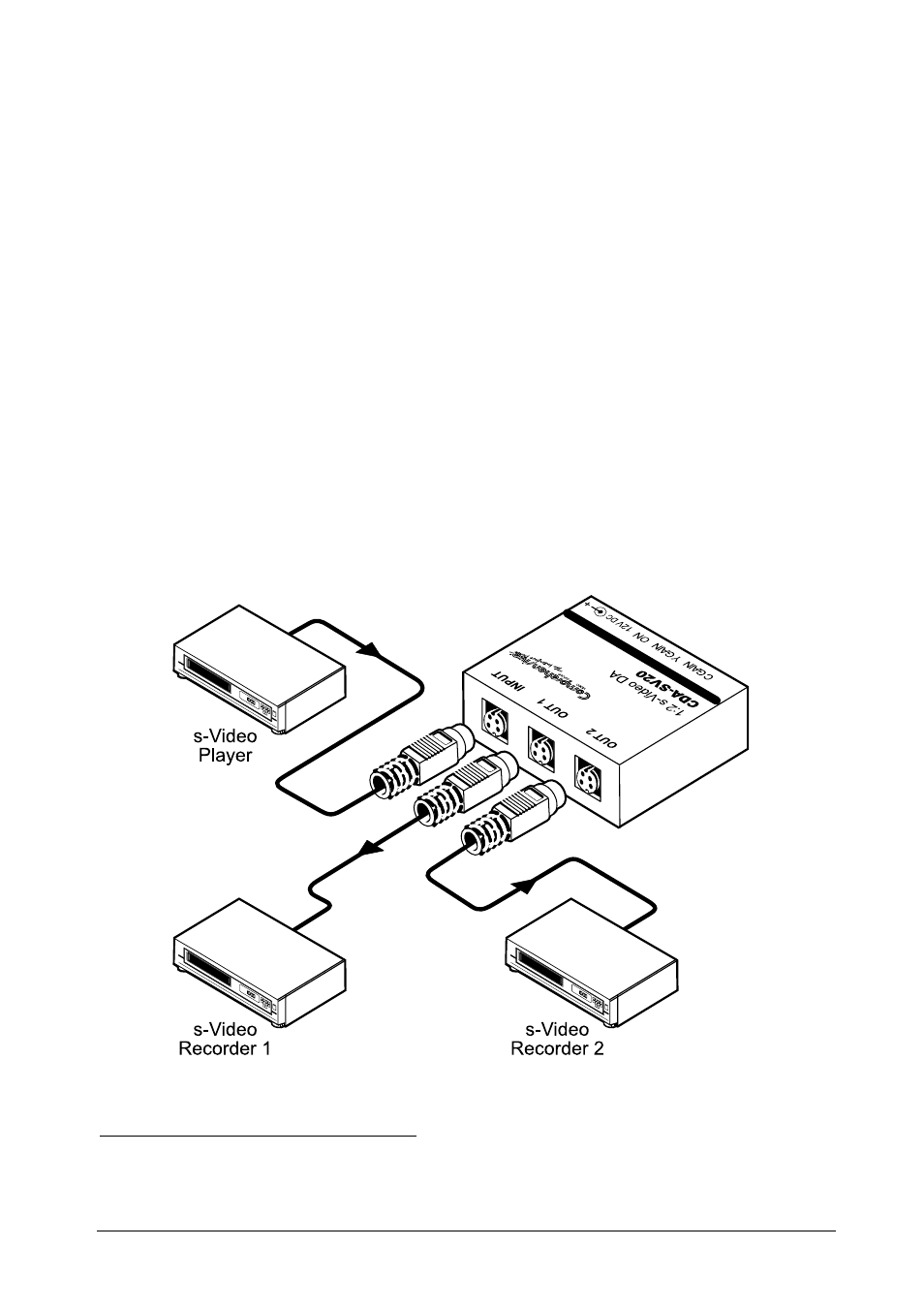

Figure 3: Connecting the CDA-SV20 1:2 s-Video DA
1 Switch OFF the power on each device before connecting it to your CDA-SV20. After connecting your CDA-SV20, switch
on its power and then switch on the power on each device
