3
4.2 Your CDA-V20 1:2 Video DA
The CDA-V20 1:2 Video DA is a micro-sized high performance 1:2
distribution amplifier for composite video signals. The CDA-V20:
Accepts a single input and distributes it to 2 identical outputs using BNC
connectors
Has a bandwidth of 470MHz, ensuring that it remains transparent even in
the most critical applications
Has gain and equalization (EQ.) controls to compensate for cable losses
Figure 2 and Table 2 define the CDA-V20 1:2 Video DA:

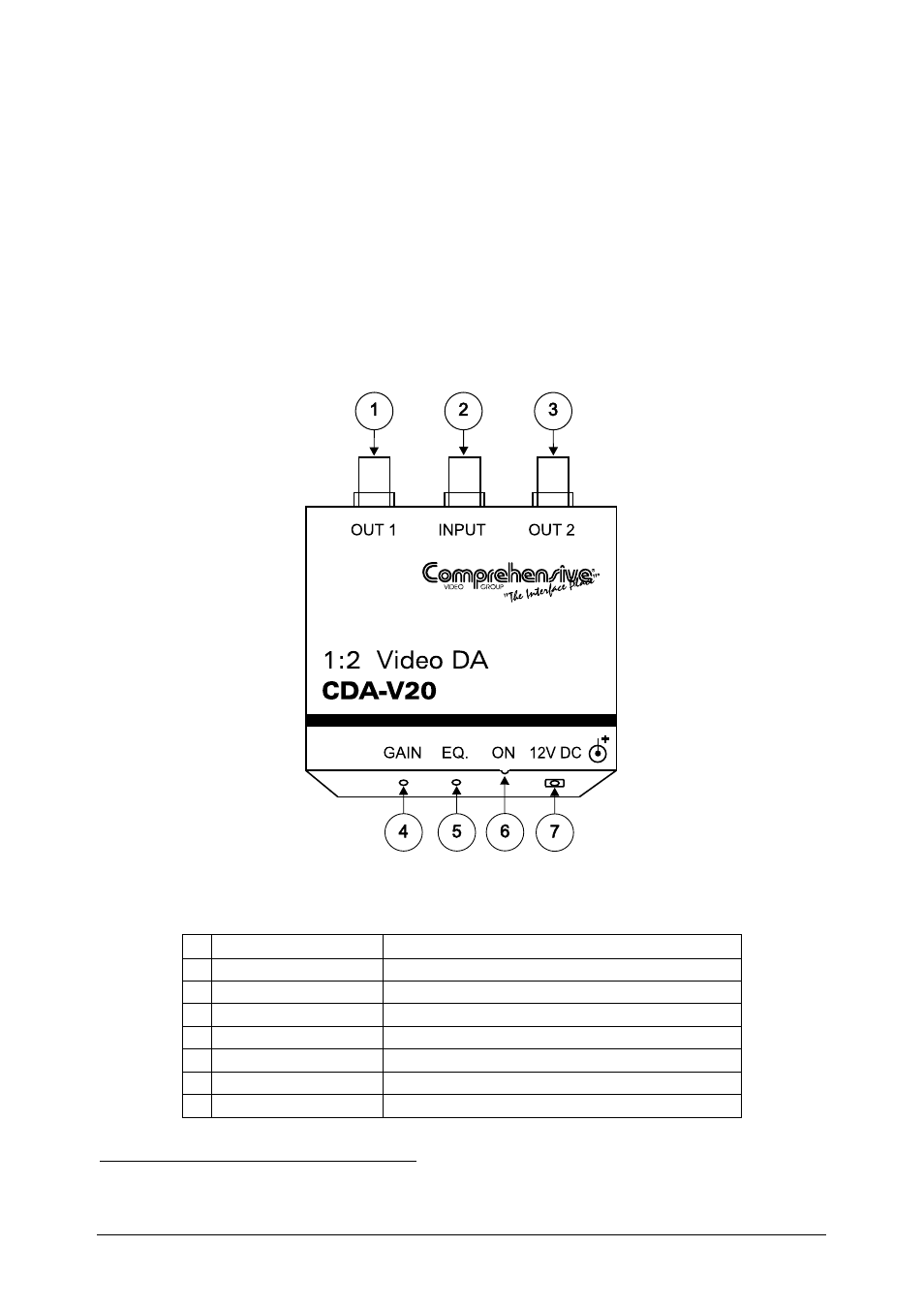

Figure 2: CDA-V20 1:2 Video DA
Table 2: Features and Functions of the CDA-V20 1:2 Video DA
# Feature Function
1 OUT 1 BNC Connector Connects to composite video acceptor 1
2 INPUT BNC Connector Connects to the composite video source
3 OUT 2 BNC Connector Connects to the composite video acceptor 2
4 GAIN Trimmer
Adjusts 1 the video signal level for outputs 1 and 2
5 EQ. Trimmer Adjusts 1 the cable compensation equalization level
6 ON LED Illuminates when receiving power
7 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
