step 6
Apply the front and back plates with the neoprene
seals in position against the door, over the protruding
ends of the spindles.
IMPORTANT NOTE: To ensure correct functioning
of the lock it is essential that the gear train on
the code plate is aligned correctly before fitting
over the spindles (fig. 1).
If the inner red or blue spindle hub alignment lines
cannot be seen place a screw driver approximately
5mm deep into the spindle hub and turn fully until
it comes to a stop and both the inner and outer
coloured lines can be seen vertically and aligned
(fig. 1).
To align the blue lines for right hand doors turn
the spindle hub fully to the right.
To align the red lines for left hand doors turn
the spindle hub fully to the left.
step 7
Fix the two plates together using the Philips head
bolts, starting with one top fixing and one bottom
fixing. Ensure that the two plates are truly vertical,
tighten fully and fit remaining two bolts.
step 8
Before closing the door, carry out the
following checks:
Enter the code and ensure that the latch retracts
when the lever handle is depressed. Now check
the operation of the inside lever handle. If there is
any binding of the handles loosen the bolts slightly
and reposition the plates slightly until the correct
position is found and then re-tighten the bolts.
To retract the latch with the key
Turn clockwise for a right hand hung door and
anticlockwise for a left hand hung door until the
latch is fully retracted.
To lock out code users by key
For right hand hung doors turn the key 360
degrees anticlockwise from the rest position and
remove the key. For left hand hung doors turn
the key 360 degrees clockwise from the rest
position and remove the key.
step 9
Passage set/Code free operation:
(types 0465/0475 only)
Note that on these locks the ‘Y’ button has a
black dot. To engage code free operation enter
the correct code followed by the ‘Y’ button. The
lever will now retract the latch without having to
enter the code.
To reset to code entry mode press the ‘Y’ button
followed by the ‘C’ button.
N.B. If the ‘C’ button is not pressed the lock
will revert to code free operation after the
next coded entry.

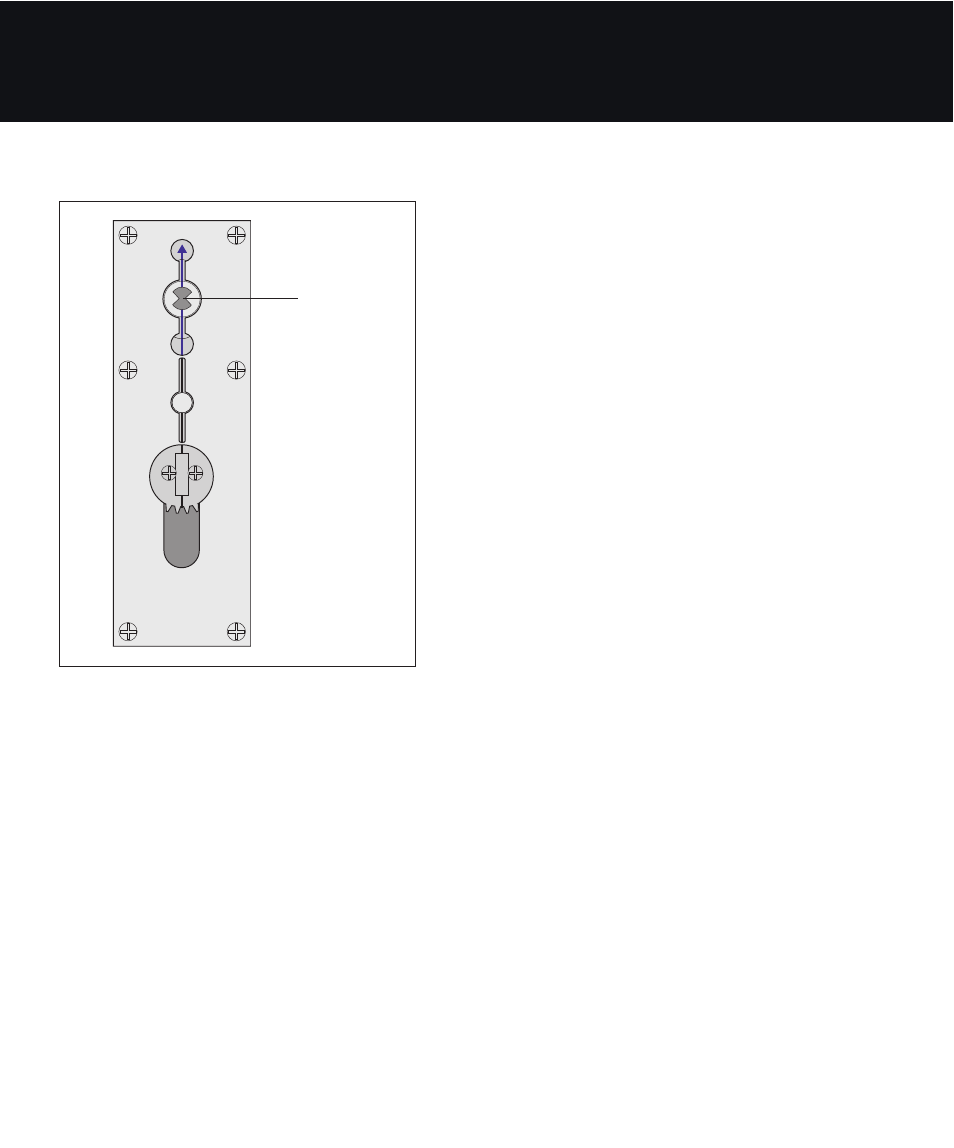

figure 1
spindle hub
