You should familiarise yourself with the operation of the lock and
check that all parts work properly.
Remove the battery cover from the back plate and install the 4 x AA
cells supplied.
Connect the cables from the front plate and back plate. A BLEEP
should be heard when you do this. If no BLEEP is heard then check
that the batteries are correctly installed.
Place the long spindle in the front plate socket and using finger grip
only, test that the spindle is easily moved 80
o in both directions.
Leave socket in the centred position.
Enter the factory Master Code (#1234 for the CL5000) (Badge Bar
1234 for the CL4000).
N.B.
When the Master Code is entered 3 times consecutively
without performing a programming function, a penalty time of 10
seconds is activated.
The Blue light should flash and the spindle should not turn as
before. After 5 seconds the Red light should flash and the spindle
should turn easily again. This confirms that the clutch engaged
correctly when the code was entered.
Disconnect the cables.
Turn the key in the front plate cylinder 90 o clockwise and confirm
that the spindle will not turn with the key in this position.
Remove the key and confirm that the spindle again turns easily.
This confirms that the key bypass function operates correctly.
For the CL4020 and the CL5020 locks see page 10 to check the
operation of the mortice lock.
REMOTE RELEASE OPTION

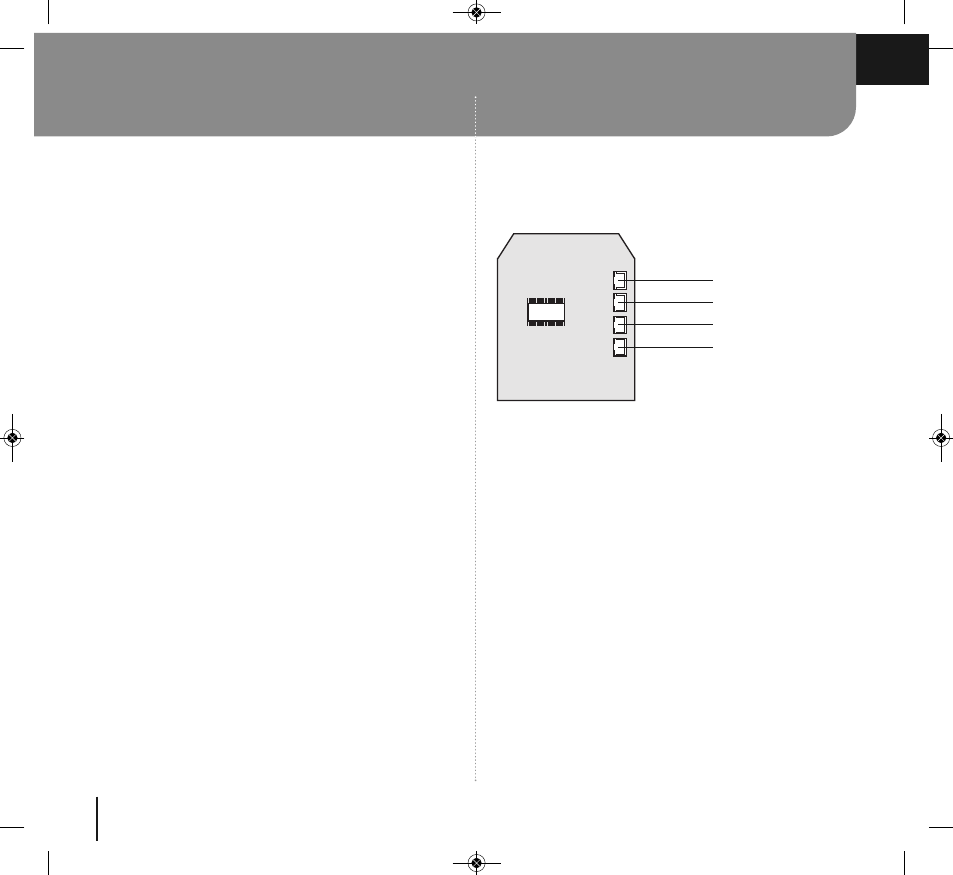

Cables are provided for the REM 1 and REM 2 terminals on the
circuit board. (Fig 1 below).
OPERATIONS CHECK SPECIAL FIXING NOTE
REM 1 is for connection to a reception desk push button or a door
intercom system. Pressing the button will cause the Blue light to
flash on the lock and release the lock for the pre-set time.
REM 2 is for connection to the building alarm system to release a
door in an emergency. This allows rooms, wards, offices to be
easily checked to ensure that no person is trapped or overlooked
during an emergency evacuation. When activated REM 2 will
maintain the unlocked condition for 30 minutes, the Red LED will
flash and BLEEP during this time.
The lock will automatically lock again after 30 minutes. If
necessary Program 11 can be used to re-lock before the end of the
30 minutes.
REM 1 and REM 2 do not require additional power.They are
normally open contacts requiring a momentary or maintained
signal to close.
1. Battery
2. Remote 1
3. Remote 2
4. Clutch/Actuator
