Section 9–Device Test, Alarm Status, Device Info. ATC200-Lite Teletilt ® Remote Control Downtilt System
9-4 May 2005 Bulletin 639510
1. To perform a self test on a device, click
on the device in the ‘Device Informa-
tion’ list (Figure 9-1).
2. Click ‘Self Test’ to initiate movement
(Figure 9-1).
3. At the completion of the self test, a
pop-up notification will appear showing
the results of the test (Figure 9-5).
4. Click ‘OK’ to dismiss the self test re-
sults pop-up notification (Figure 9-5).

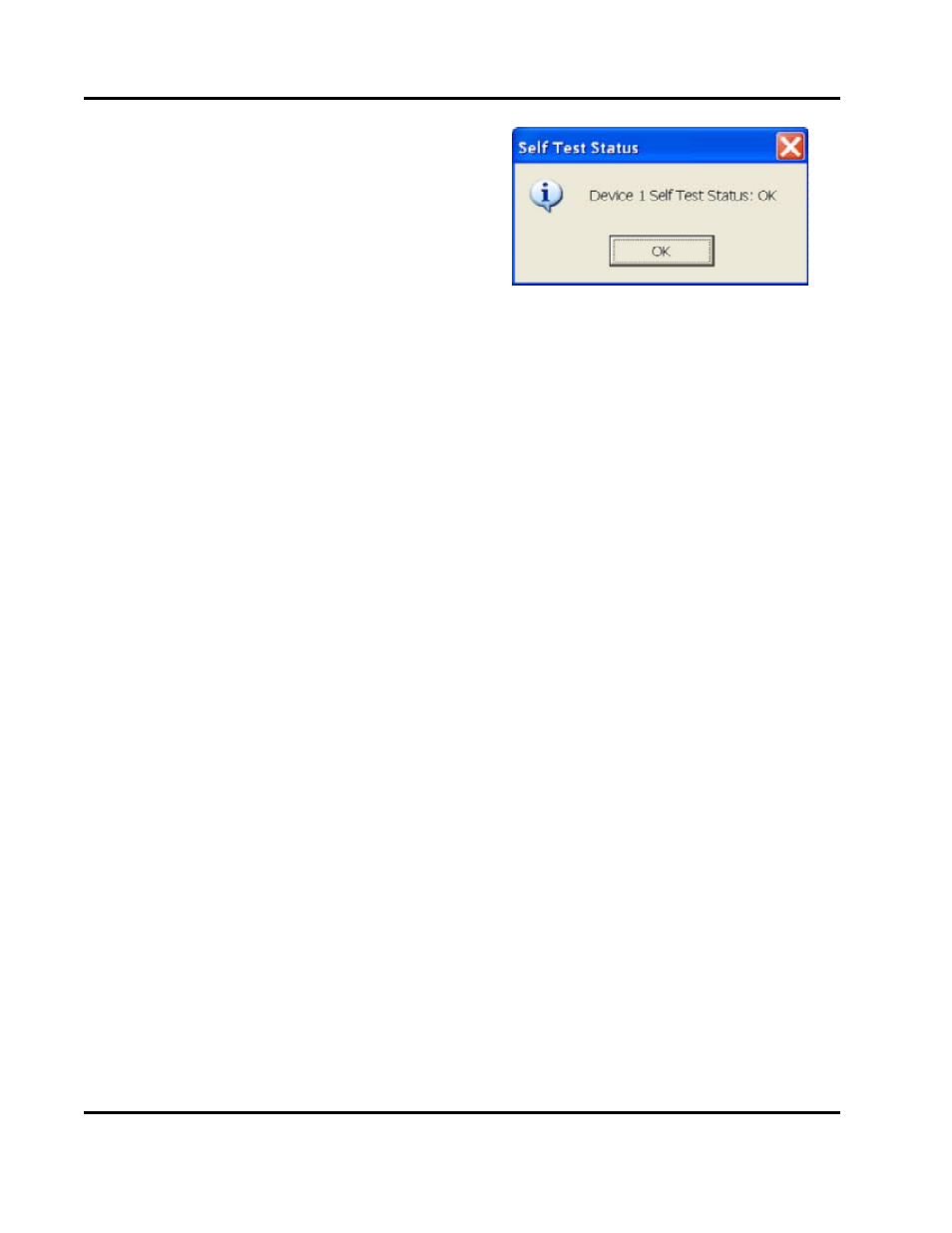

Figure 9-5. Self Test Results.
