2. Installation
⊙ Wire Connections
13

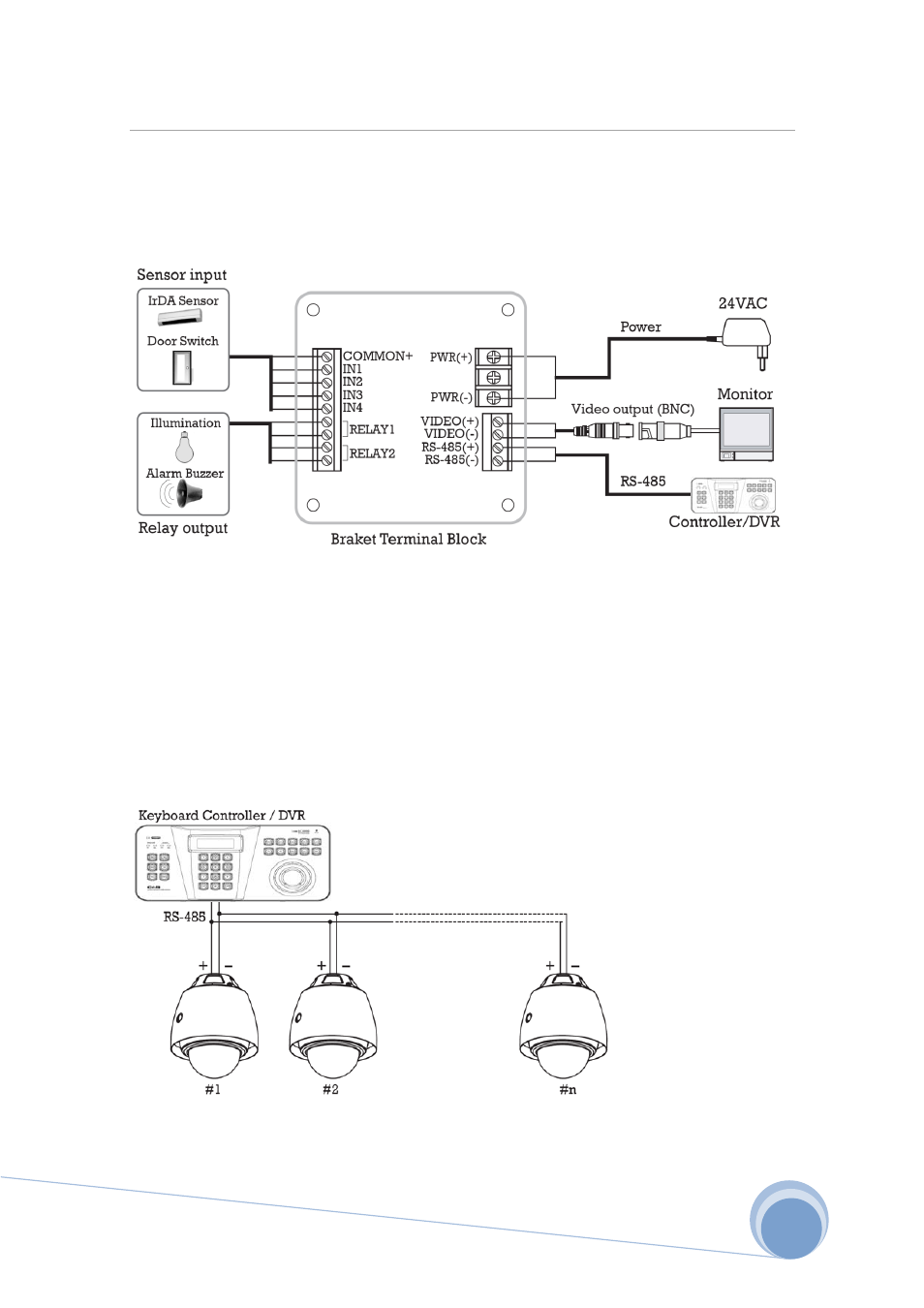

■ Power Connection
• The standard power for the system is 24VAC / 2A.
Please, check the voltage and current capacity of rated power carefully.
■ Video Connection
• Connect With BNC coaxial cable.
■ RS-485 Communication
• For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time, RS-485 communication lines of them is
connected in parallel as shown below.
