4.2. Quick Installation Guide
1. Connect PC and MDC4050IR to network.
1) Prepare a PC to run programs for the installation and video connection
(PC is needed to assign IP address to MDC4050IR)
2) In the case of using PoE, connect the PC and MDC4050IR to the network using one of the following
ways.
If your LAN Switch does not support standard PoE, connect MDC4050IR as shown in dotted line in
Figure 4-1. The DC power is applied through DC adaptor.

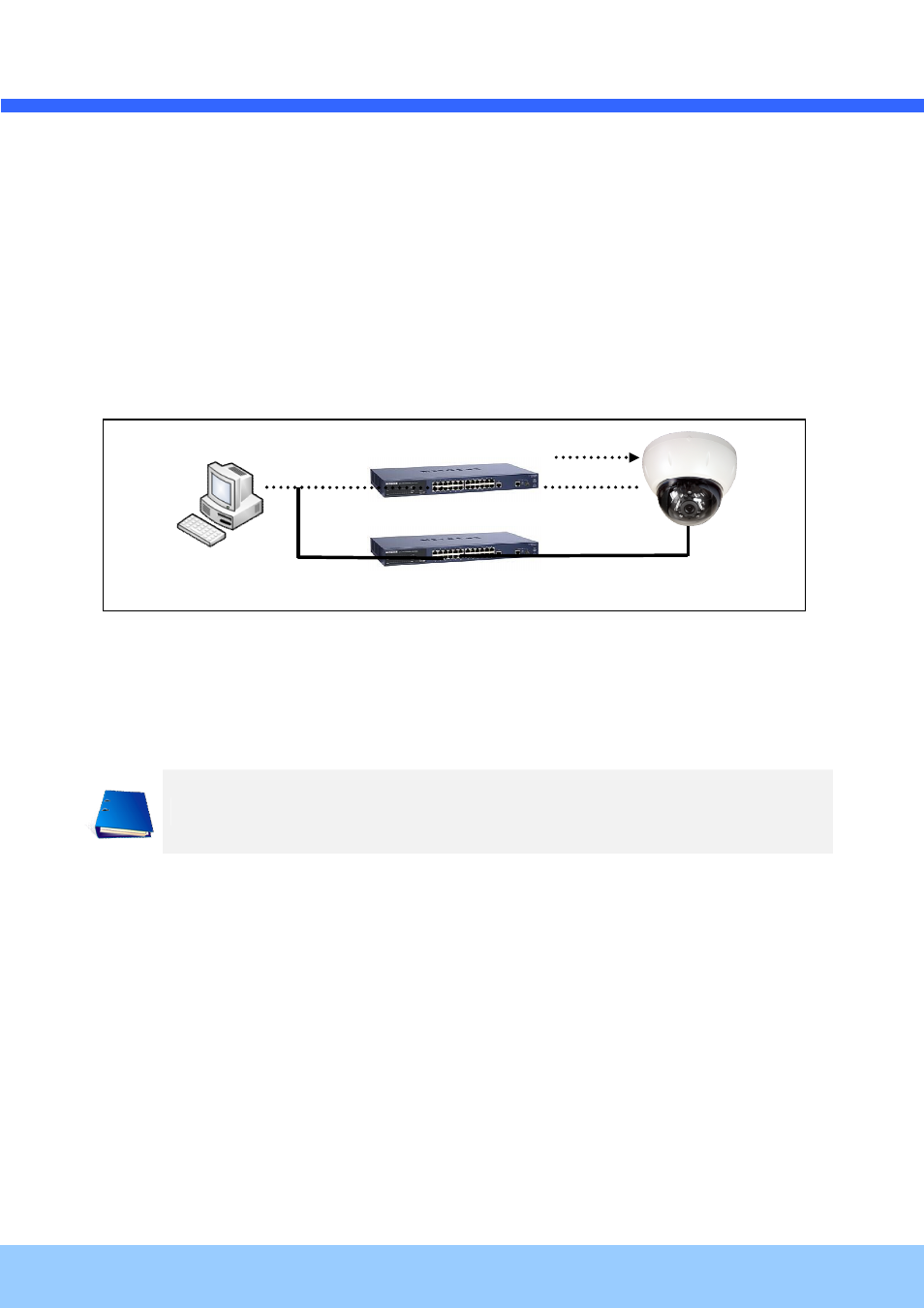

Figure 4-1. Power and network connection
2. Install “IP installer and set IP parameters on MDC4050IR
Insert the CD provided with product into the PC. Install WinPcap and IP Installer in sequence. Make sure
that IP Installer can’t run without WinPcap.
IP installer Ver. 3.0.1 or later is needed in the configuration of MDC4050IR.
Follow the sequence below for setting the IP parameter
1) Run IP installer > Select Network Adaptor >OK
2) Click in IP installer window.> Double ① click on > Fill in > make a selection in > Fill the ② ④ ⑤
parameters in ⑥
3) Click on to apply the settings. ⑨
4) You can connect to admin page by clicking on . ⑩
LAN switch with
standard POE
(802.3af)
LAN switch
DC adaptor
