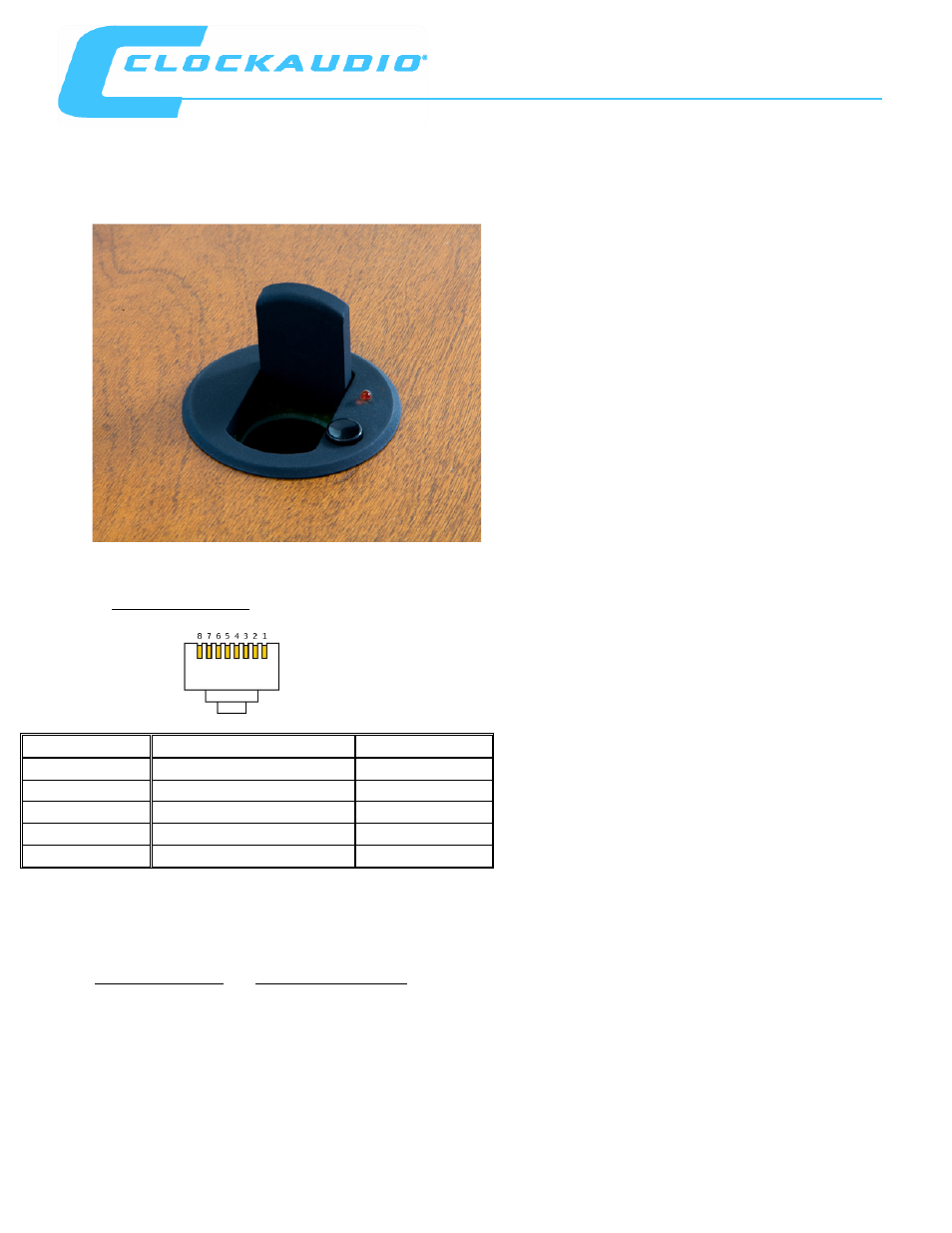

SM 80S-RF
Switch connections
Cable colour Function RJ 45 Pin number
Red Red LED 2
Blue -ve switch 3
Brown +ve 12/24V dc switch 4
Yellow Switch Logic control 5
Green Green LED 6
P R O F E S S I O N A L M I C R O P H O N E S Y S T E M S
A low profile through table shock mount microphone base fitted with a flip cover to conceal the
connector when closed.
www.clockaudio.com
• Designed for remote switching.
• Low profile table mounted microphone base.
• Requires a minimum table thickness of 25mm (1”)
• Includes a concealed flap to allow the table to be
used for other purposes.
• Built in shock mount to eliminate surface bound
noise.
• Fitted with momentry (PTT) or latching switch.
• Bi-colour common anode LED to confirm status
• Housing PPA-RF for use with Clockaudio mics C
3100, C 310R, C 313/SR, C 314/SR.
• Terminated with RJ 45 connector and supplied
with RJ 45 coupler which allows connection via RJ
12 or RJ 45 plug back to dsp.
Applicable for Clockaudio microphones only
3 Pin Tini Q Wiring 3 Pin Male XLR Wiring
PIN 1 Phase – PIN 1 Ground
PIN 2 Phase + PIN 2 Phase +
PIN 3 Ground PIN 3 Phase -
Architects and Engineers Specifications for
Microphone Shock Mount SM 80S-RF
It shall come complete with a dedicated phantom
power adaptor designed to power the C 3100
miniature gooseneck microphones terminated with
Tini Q 3 pin connectors. The Phantom power adaptor
shall accept 9 to 48 volts DC and have impedance of
200 ohms. The phantom power adaptor shall also
include filters, which shall eliminate all GSM
frequencies from 800-1200 MHz and be terminated
with a male 3 pin XLR. The microphone shock mount
shall be available in satin Nickel or Black Nextel
finishes. The through table microphone shock mount
shall be a Clockaudio SM 80S-RF.
