AO-70173

8

Revision BA

WebPro Unwind Brake Tension Controller

cables and other cables through the most convenient holes in the rear cover and connect to the terminals.
Replace the rear cover and secure the cable gland to retain the mains cable for safety purposes.

All the Controller 0V commons, analog and digital, are connected to earth E and to the metal case.

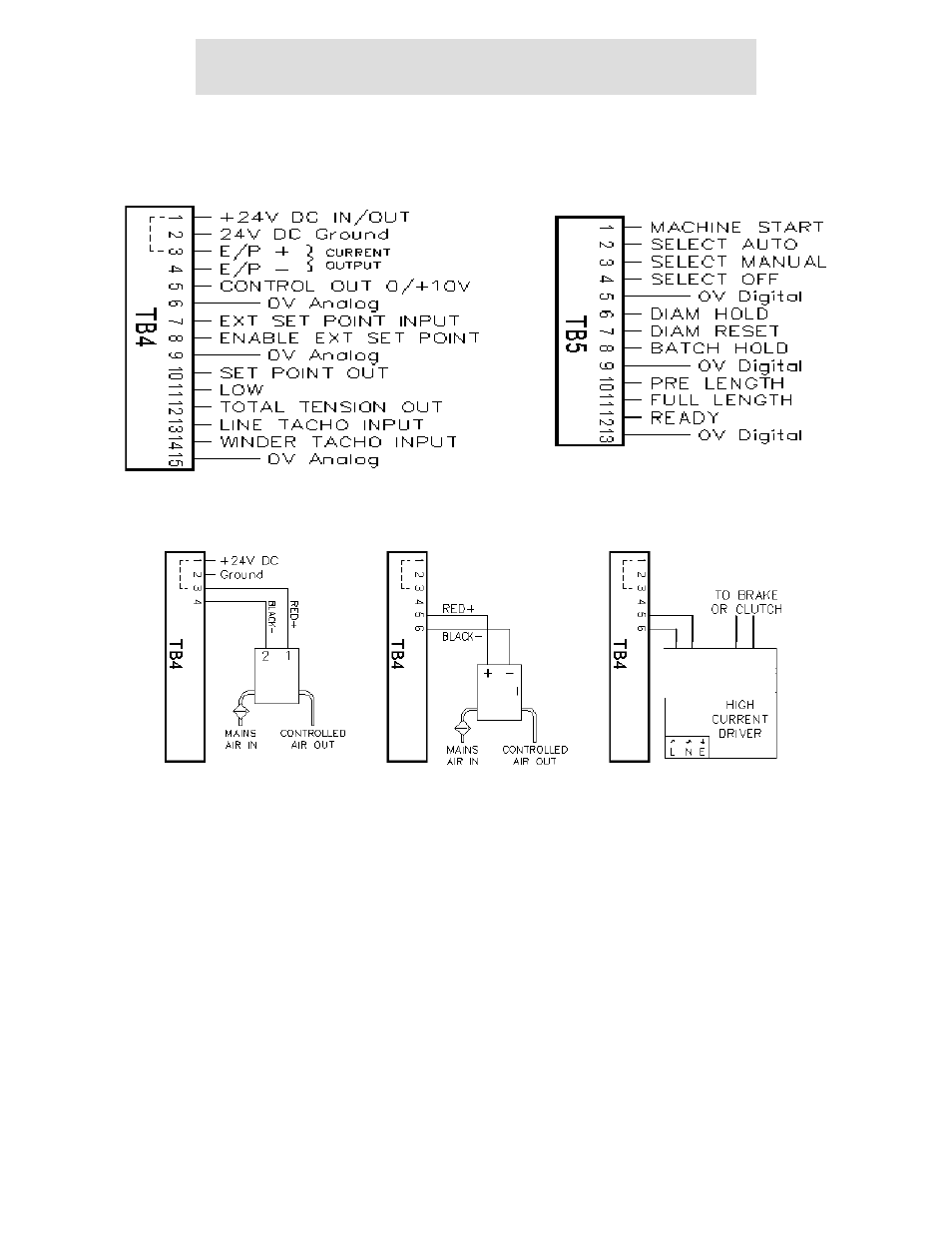

TB4 – Analog I/O

TB5 – Digital I/O

COM

IN

OUT

+

OUT

-

Fairchild
TA6000-

406

Fairchild TA6000-406
connections for 4-20mA input

Fairchild TT6000-006
connections for 0-10V input

High Current Driver
connections for 0-10V input

Fairchild
TT6000-

006
