F i b r e C h a n n e l
ATTO FibreBridge ™ 1290E
©2005 ATTO Technology, Inc. Specifi cations subject to change without notice. Rev 9/05
Fibre Channel and SCSI
Fibre Channel Interface:
• 2-Gigabit (400 MB/sec. in full-duplex mode)
• Backward compatible with 1-Gigabit
devices
• One (1) SFP (Small Form Factor Pluggable) port
• Full support for direct connect for F-port
fabric
switches
• Class 2, Class 3 and Intermix ANSI Fibre
Channel
Specifi cations
• PLDA, public loop login (NL_ports) and
fabric
connect (N_port)
• Full-duplex transmissions
SCSI Interface:
• Two (2) independent VHDCI 68-pin
SCSI
connectors
• LVD Ultra160 SCSI – 160 MB/sec. max
per
bus
• Backward compatible with all Single-
ended SCSI devices
• 128 LUNs per channel
Performance:
• Up to 5000 I/Os per sec.
• Up to 160 MB/sec. sustained data-
transfer rate
• Memory: 128 MB of SDRAM for advanced
data buffering and performance
• Supports Tagged Command Queuing
• Support for 4 concurrent XCOPY commands
Fibre Channel Compliance:
• ANSI FC-AL
• SNIA Extended Copy
• Class 2, Class 3 and Intermix
• FCP-1 and FCP-2 Fibre Channel Specifi cations
Management
Device Management Physical Interface:
• In-band (through Fibre Channel)
• Serial through 10-pin serial headers
• Network through 10/100 BaseT Ethernet
Port (Telnet, FTP and SNMP)
Device Management User Interface:
• Command Line Interface (CLI)
• ASCII-based menu system
• ATTO ExpressNAV™ web-based integrated
management
console
• Performance reporting and Error Logging
(CLI
commands)
LEDs:
• FC Activity
• 2-Gigabit Operation
• SCSI Activity Port 1, 2
• Ready
Environmental and Physical
Characteristics
Dimensions:
• 4.450” W
• 7.600” L
Operating Environment:
• Temperature: 5 - 40º C
• Humidity: 10 - 90% non-condensing
• User confi gurable integrated thermal
sensor data for auto shutdown
• Default: 70º C (max)
Power:
• Input
6-pin:
Max 1.5A @ 12V
Max 0.5A @ 5V
20.5 Watts
PCI connector: Max: 3.5@5V
17.5 Watts
• Power through PCI card form factor or
6-pin power connector
(standard 4-pin connector available)
Confi guration:
• Single (embedded) PCB
Airfl ow:
• Recommended 200 LFM
• Ambient air not to exceed 40ºC
Other
Operating Systems Supported:
• Operating system independent

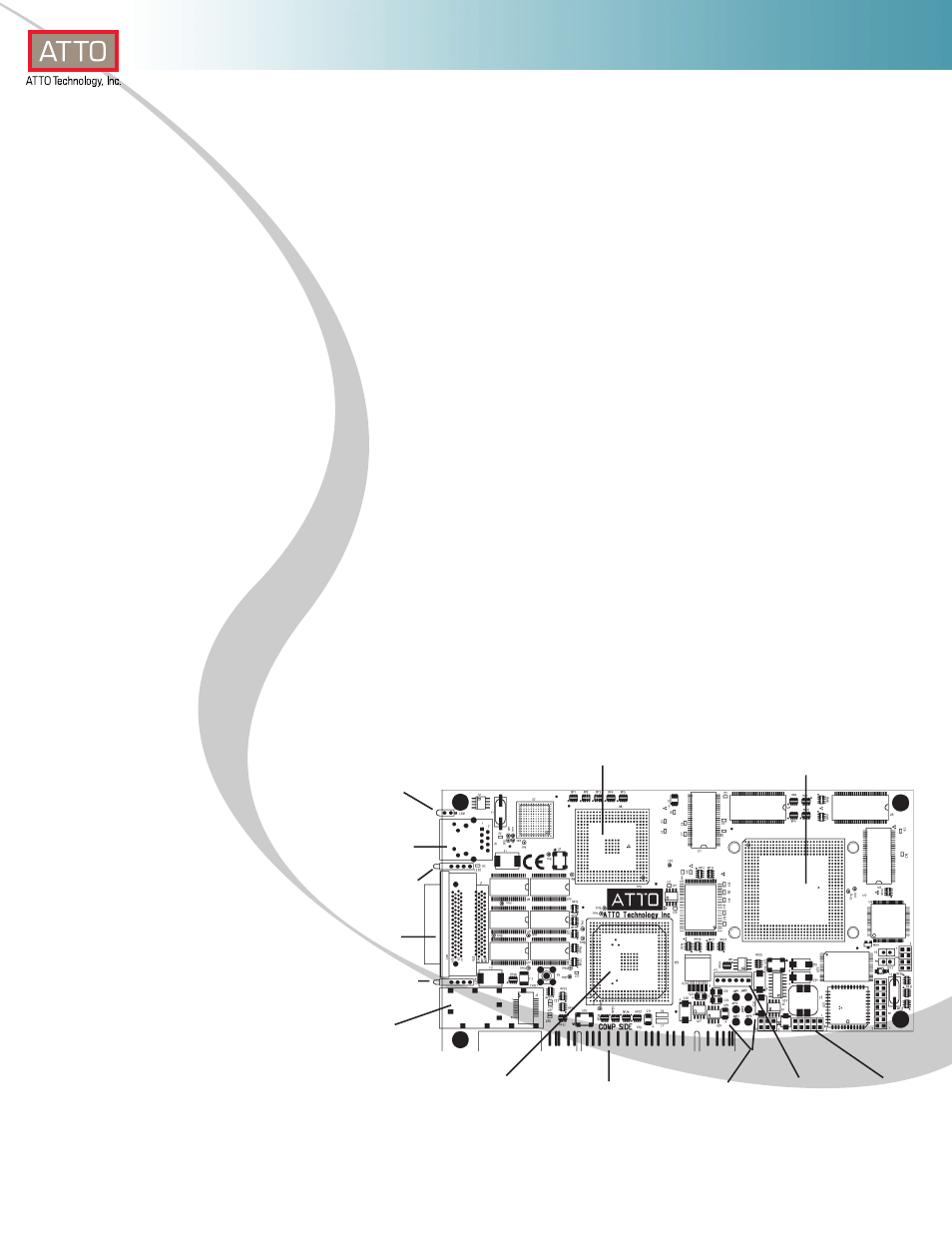

Figure 1 - FibreBridge 1290E
SCSI ASIC On-Board
Processor
Ready LED
RS45 Ethernet
Connector
SCSI Port 1 &
Port 2 Activity
LED
SCSI Ports
1 & 2
FC Activity &
2-Gig Operation
LED
SFP Fibre Channel
Connector
FC ASIC PCI Connector
(Power Only) PCI/6-Pin
Power Jumpers 6-Pin Power
Connector 10-Pin
Serial
Header
