King Technology Prevail System - Manual (Page 12)

Apply pipe thread tape or
sealant to the threaded end
of both hose adapters.
Attach the filter section of
flex hose to one hose
adapter and the return
section of flex hose to the
other hose adapter with
clamps and tighten with
screwdriver.

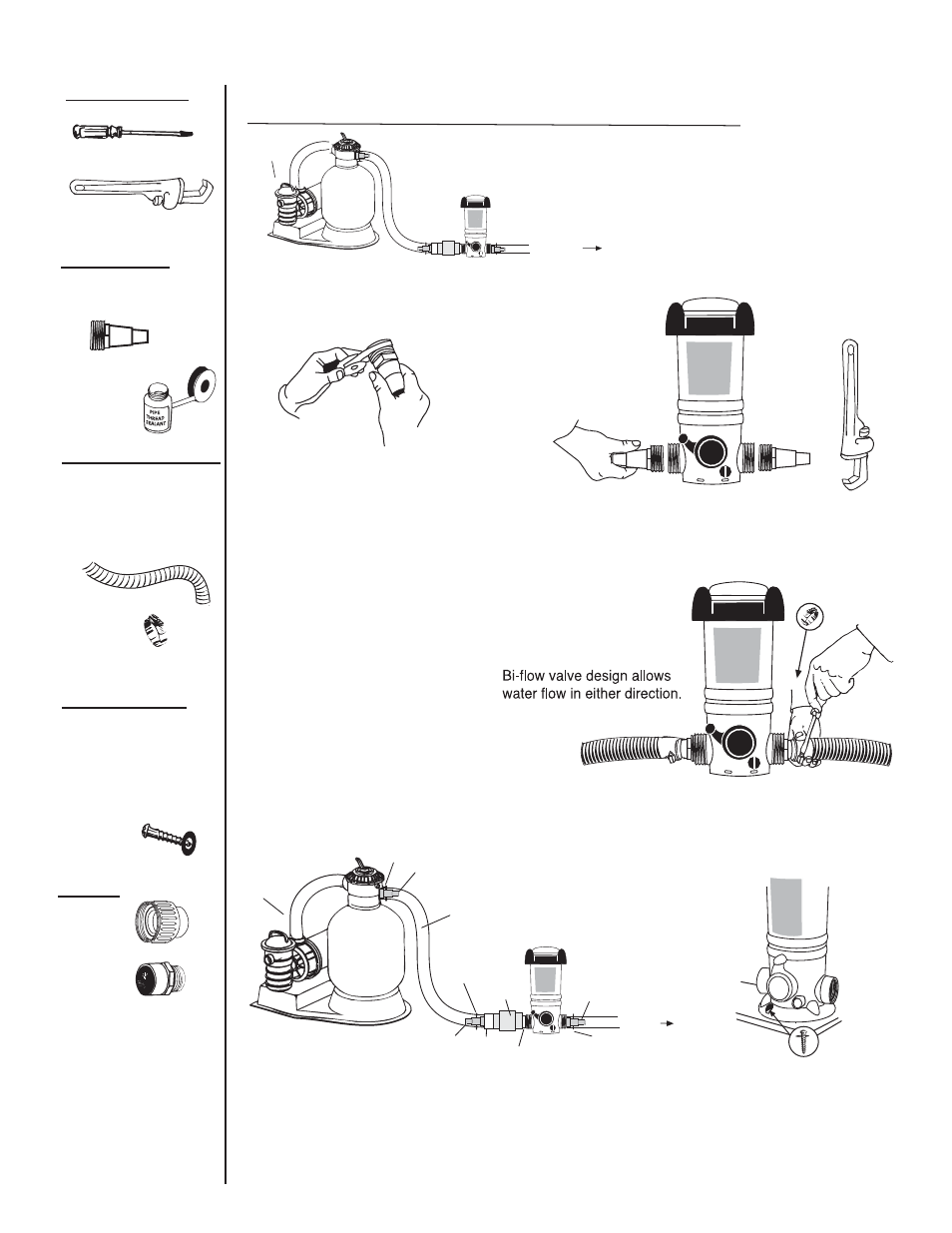

Above Ground, Base Installation
TOE NIPPLE
CHECK
VALVE
BUSHING
HOSE
CLAMP
HOSE
ADAPTER HOSE
CLAMP
HOSE
ADAPTER
1 1/2" X 1 1/2" X 1 1/4"
HOSE ADAPTER
HOSE
CLAMP
FILTER &
PUMP
The Cycler should always be installed between the
filter and pool (or between heater and pool if applicable).
Screw adapters into each end of Cycler. Hand tighten.
Finish tightening by turning 1 to 2 revolutions with
wrench. DO NOT OVER TIGHTEN. 1. 2.
3.
4. 5.
12
MATERIALS NEEDED:
Two
Hose
Clamps
Corrosion Resistant
Check Valve
RECOMMENDED:
OPTION:
1 1/2" Threaded by
1 1/2" Slip Bushing.
When installing with
hard PVC pipe, use
either a half union on
the outside port threads
or a bushing on the
inside port threads.
#10 X 1 1/4" Phillips Pan
Head Screws with
Washers
Half Union
or
INCLUDED
WITH CYCLER:
TO POOL
TO POOL
PUMP
FILTER
Installing a corrosion resistant check valve is recommended. For better stability, Cycler may
be mounted on a base using
Phillips pan head screws.
One in front and two in back.
TOOLS NEEDED:
Two Hose Adapters
1 1/2" X 1 1/2" X 1 1/4"
Two Sections of
of 1 1/2" Flex Hose
(one provided with
filter)
Screwdriver
Pipe Wrench
Pipe Thread Tape
or Sealant
