Atlantis Land NET POWER 302AV - Manual (Page 19)

19

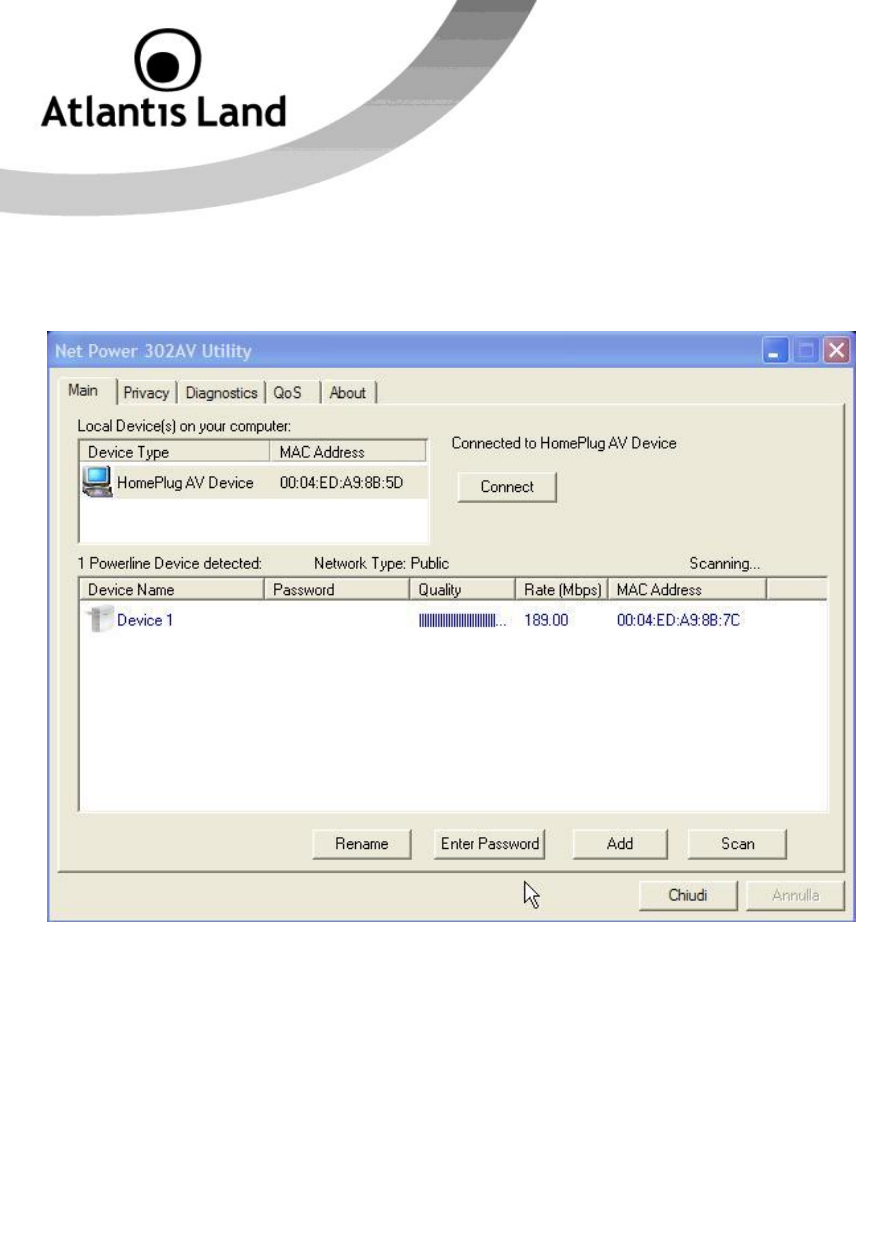

Main
The Main Tab screen lists all the powerline devices that are connected to the host
computer when the utility is running.
The top left window panel shows all the local HomePlug devices that are connected to
the computer’s NIC (Network Interface Card). Normally, only one device will be seen
on the list. If there is more than one local device being connected, user can select the
local device by clicking on it and then click the Connect button to its right to use it to
connect to the internet. Once connected to the local device, the utility will
automatically scan the power line periodically for other newly connected HomePlug
devices. If no local HomePlug devices are discovered, the status area above the
