Silver Series
Installation Instructions

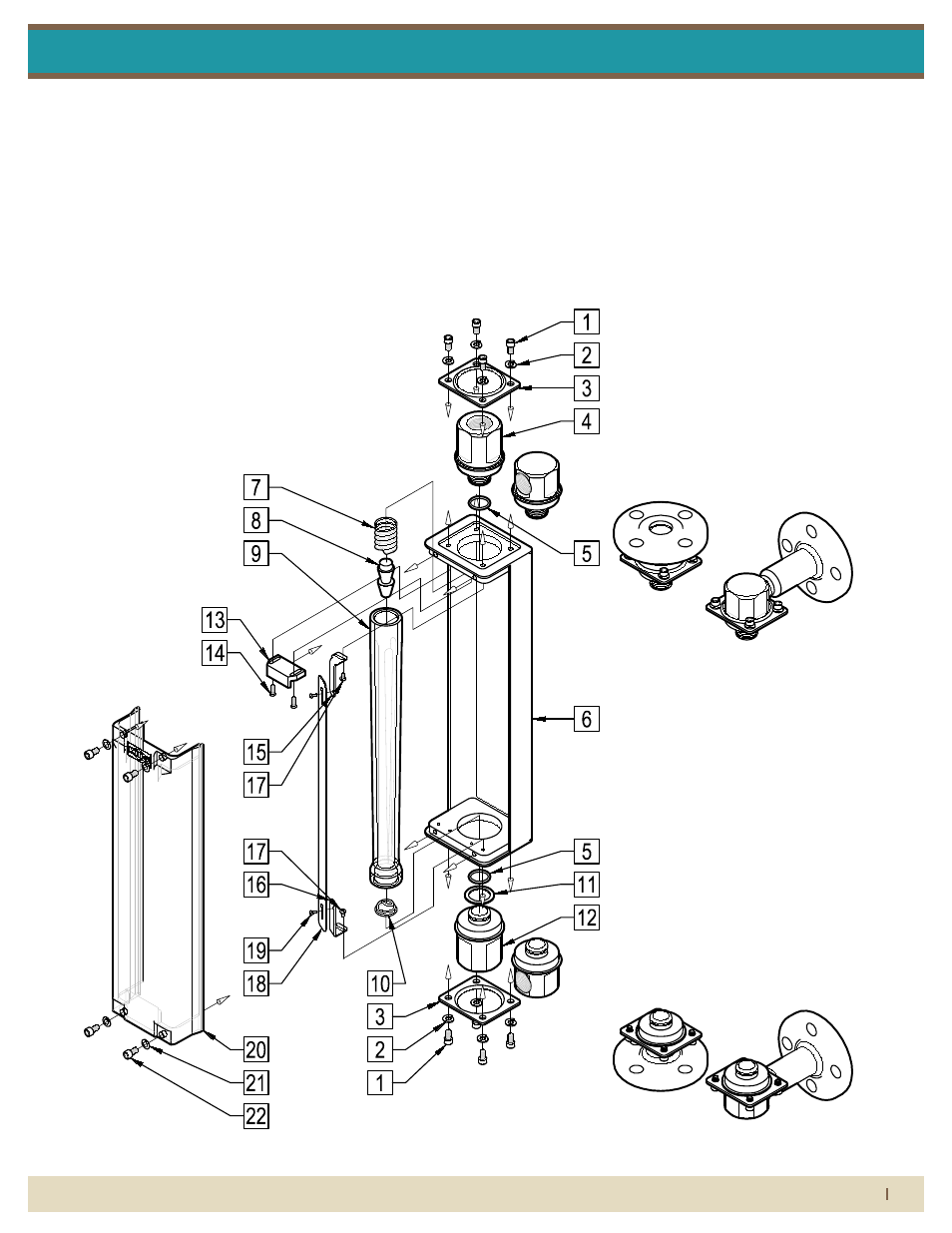

silver series asseMbly
parts list:
1. End Fitting Retainer Screw
2. End Fitting Retainer
Split Washer
3. End Fitting Retainer
4. Outlet End Fitting
5. End Fitting O-Ring
6. Case
7. Outlet Float Stop
8. Float
9. Glass Meter Tube
10. Inlet Float Stop
11. Glass Tube Saver 12. Tube Retainer
13. Inlet End Fitting
14. Tube Retainer Screw
15. Upper Scale Plate Bracket
16. Lower Scale Plate Bracket
17. Scale Plate Bracket Screw 18. Scale Plate
19. Scale Plate Screw
20. Shield
21. Shield Flat Washer
22. Shield Screw
END FITTING RETAINER
END FITTING RETAINER
END FITTING RETAINER
END FITTING O-RING
FLOAT
CASE
INLET END FITTING
TUBE RETAINER
TUBE RETAINER SCREW
UPPER SCALE PLATE
LOWER SCALE PLATE
SCALE PLATE BRACKET
OUTLET FLOAT STOP
GLASS METER TUBE
INLET FLOAT STOP
GLASS TUBE SAVER
SCALE PLATE
SCALE PLATE SCREW
SHIELD
SHIELD FLAT WASHER
SHIELD SCREW
OUTLET END FITTING
4X
4X
4X
4X
2X
2X
4X
4X
(THIS PAGE LEFT INTENTIONALLY BLANK)
SCREW
SPLIT WASHER
BRACKET
BRACKET
SCREW
