3. HARDWARE SETUP

Connectors

3. H/W SETUP

28) ATX Power Supply Connector (20-pin block ATXPWR)

This connector connects to an ATX power supply. The plug from the power supply
will only insert in one orientation because of the different hole sizes. Find the
proper orientation and push down firmly making sure that the pins are aligned.

IMPORTANT:

Make sure that your ATX power supply can supply at least 10mA

on the +5-volt standby lead (+5VSB). You may experience difficulty in powering
ON your system if your power supply cannot support the load. For Wake-On-
LAN support, your ATX power supply must supply at least 720mA +5VSB.

A7A266

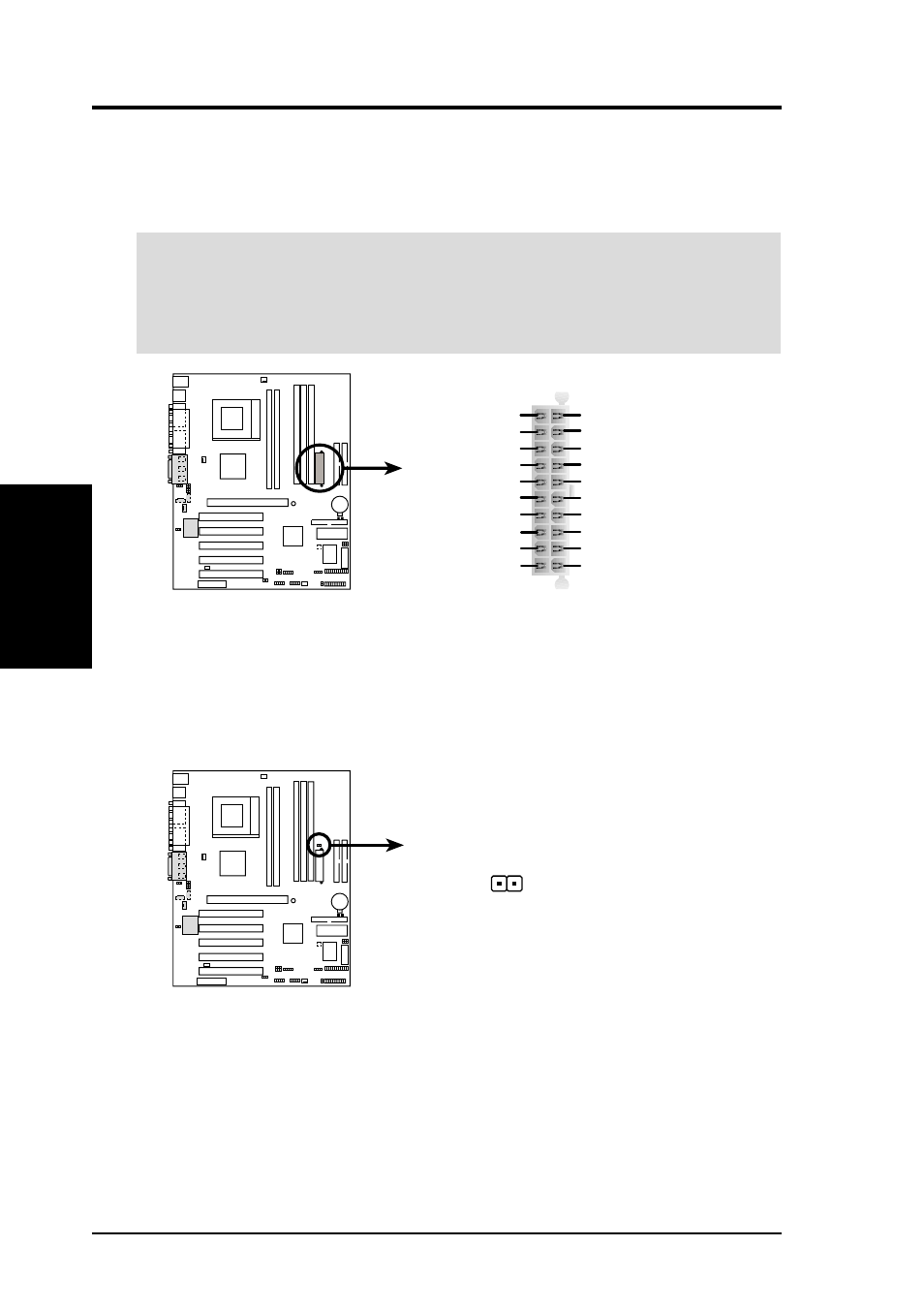

A7A266 ATX Power Connector

+3.3Volts

-12.0Volts

Ground

Power Supply On

Ground

-5.0 Volts

+5.0 Volts

Power Good

+12.0Volts

+3.3 Volts

Ground

+5.0 Volts

Ground

+5.0 Volts

Ground

+5V Standby

29) Power Supply Thermal Sensor Connector (2-pin block JTPWR)

If you have a power supply with thermal monitoring, connect its thermal sensor
cable to this connector.

A7A266 Thermal Sensor Connector

JTPWR

Power Supply
Thermal Sensor
