Make sure that all components have been received. Refer to Figure 2 . If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.

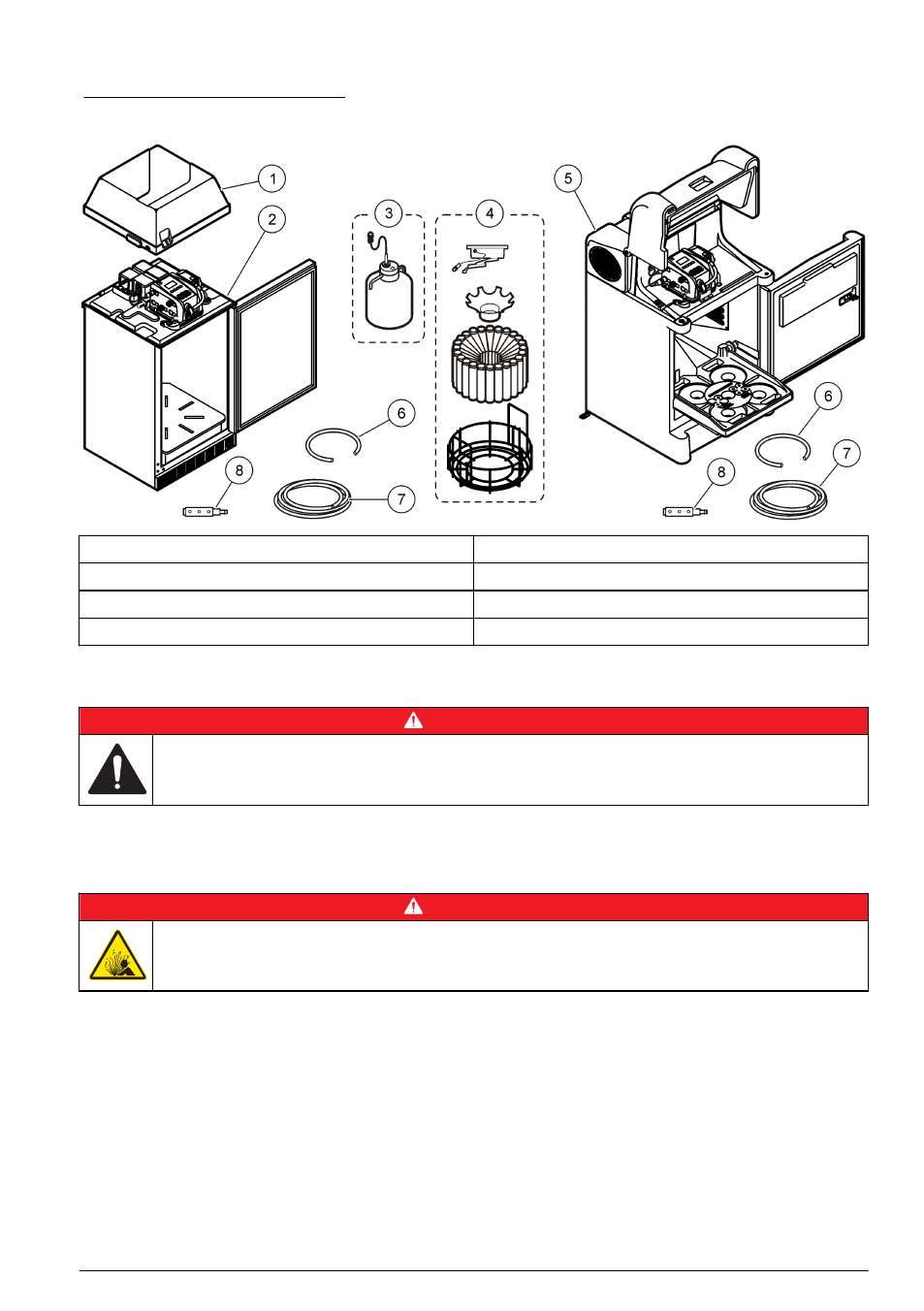

Figure 2 Sampler components
1 Optional cover (8963) 5 All weather refrigerated sampler
2 Refrigerated sampler 6 Replacement pump tubing
3 Components for single-bottle option 7 Intake tubing, vinyl or teflon-lined
4 Components for multiple-bottle option 8 Strainer
Installation
D A N G E R
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
Mechanical installation
Site installation guidelines
D A N G E R
Explosion hazard. The instrument is not approved for installation in hazardous locations.
• The refrigerated sampler must be installed in an indoor location. The AWRS can be installed in an
outdoor location.
• Make sure that the temperature at the site location is within the specifications.
• Install the sampler on a level surface. Adjust the sampler feet to make the sampler level.
• Use the installed anchor brackets and user-supplied
3 /
8
-in. bolts for the AWRS. Refer to Figure 3 .
• Plumb a drain tube to the ½ in.-14 NPT female connector on the bottom of the sampler.
English 9
