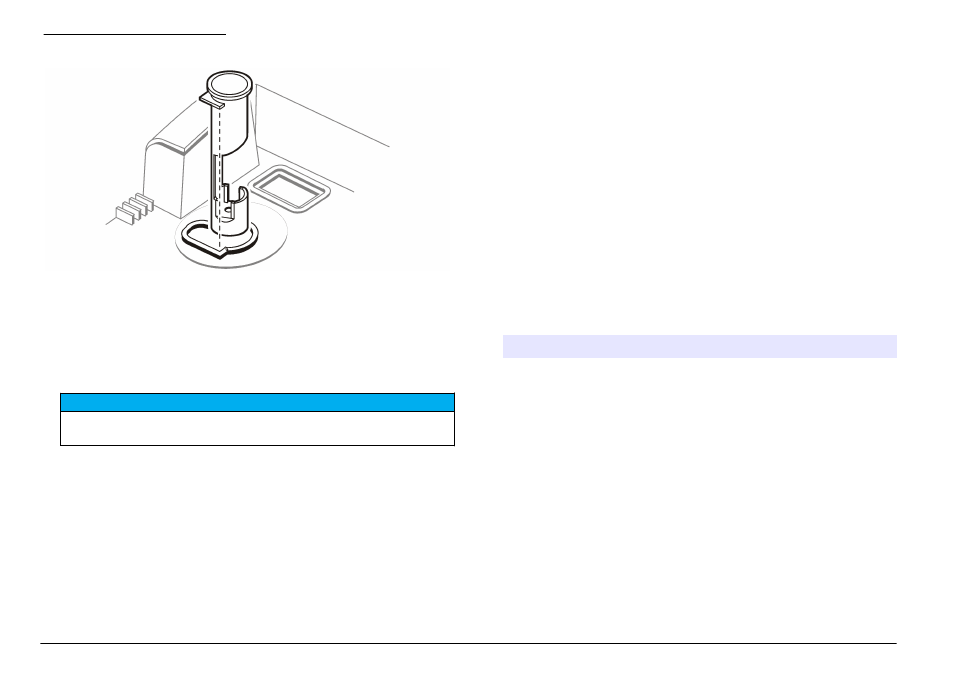

Figure 9 Install a cell adapter

Remove a cell adapter

1. Carefully pull the cell adapter up until it is half out of the sample cell

holder.

2. Slowly turn the cell adapter 90 degrees counter-clockwise.
3. Pull the cell adapter up to remove it.

N O T I C E

Do not force the cell adapter out of the instrument as serious damage can
occur.

Connect to a printer or computer

Use the serial interface (RS232) connector on the back of the instrument
to transmit data from the instrument to a printer or a serial
communication port on a computer. Refer to

Figure 2

on page 8.

To connect a serial printer to the instrument, use a printer cable
assembly that is terminated with a standard 25-pin D connector. A serial-
to-parallel converter can be used to print to a parallel printer. Data is
transmitted to a printer as a 39-character string plus the line feed and
carriage return.

To connect a computer to the instrument, use a serial communication
cable with a DB9 connector.

Note: Use of the specified cable or equivalent is mandatory for CE compliance (a
shielded cable assembly must be used).

Configure the printer output

1. Push and hold down the right arrow key for 3 seconds.
2. Select 01 using the arrow keys.
3. Push ENTER.
4. Use the arrow keys to change the value—SL Pr (slow print,

2.5 second delay) or FS Pr (fast print).

5. Push ENTER.

Configure the RS232 connection

1. Push SETUP. The SETUP light turns on.
2. Use the arrow keys to select an option:

Option

Description

10

Sets the baud rate (default=1200).

11

Sets the character length (default=8).

12

Sets the stop bit (default=1).

13

Sets the parity select (default=NONE).

3. Push ENTER.
4. Use the arrow keys to change the value.
5. Push ENTER.
6. Push SETUP.

Configure a Citizen Model iDP 562RSL II printer

The Citizen Model iDP 562RSL II printer requires configuration for
compatibility with the 2100N turbidimeter. Set the switches and jumper
positions on the Citizen printer board as shown in

Figure 10

and

Table 4

.

30 English
