1
DOC273.52.00146Jun06
Installation instructions
Cleaning set LZY367
Introduction
These installation instructions describe the installation and use of the cleaning set LZY367.
Items supplied, cleaning set LZY367
Selecting the installation location
Note: Ensure you have the operating instructions
for the analysis instrument DOC023.XX.00025.YYYyy or DOC023.XX.00026.YYYyy
(xx= language, YYYyy= date) and
the FILTRATION PROBE sc DOC023.XX.00024.YYYyy
(xx= language, YYYyy= date) at hand.
Note: When selecting the installation location, ensure the tray used and the FILTRATION PROBE sc are
securely mounted and chemicals cannot leak.
During the selection of the installation location, pay attention to
• Ease of access to the enclosure door for the analysis instrument,
• The maximum cable and tubing lengths and
• Ease of access to the display module.

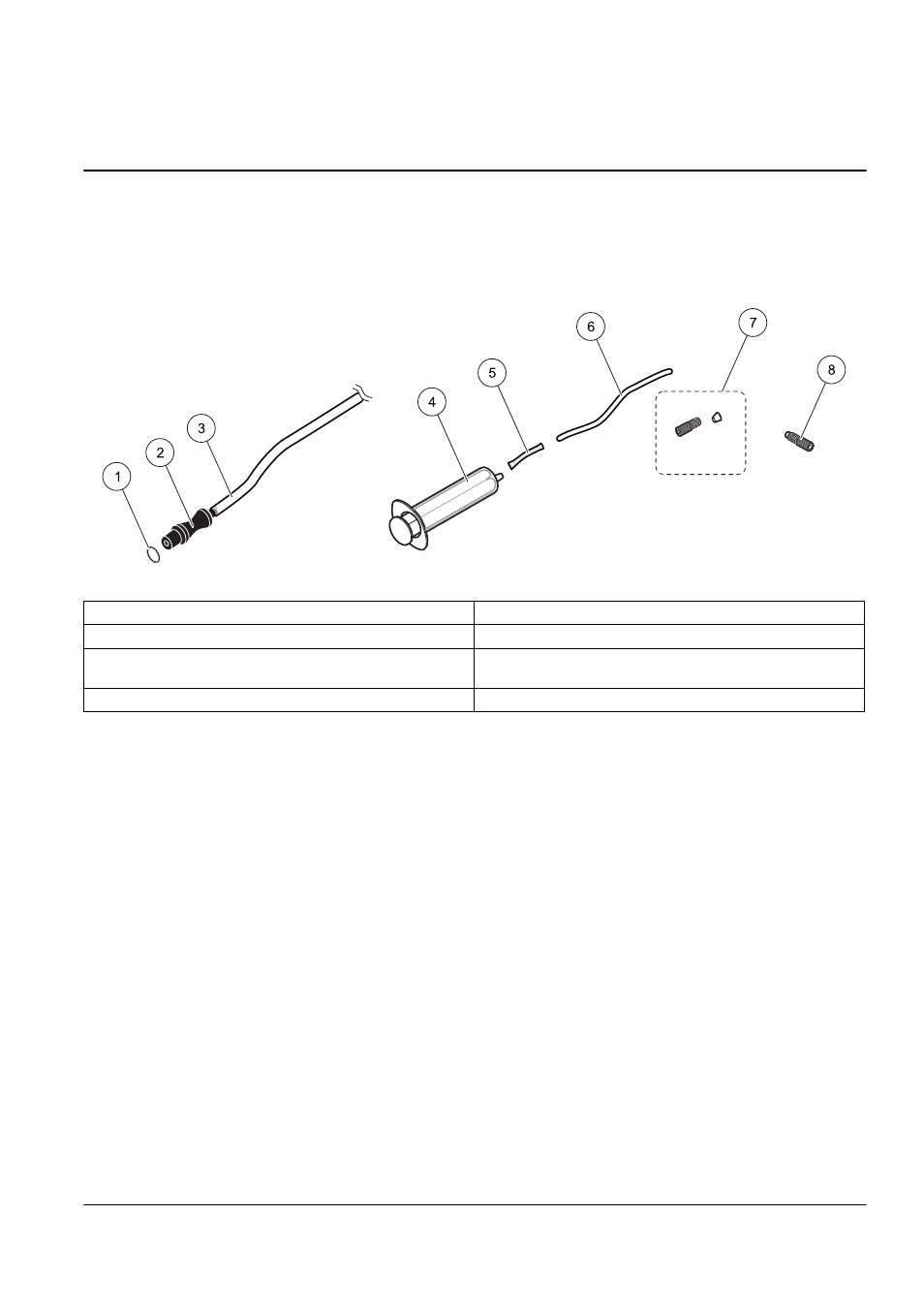

Figure 1 Items supplied, cleaning unit LZY367
1 O-ring (7.5 x 2.5 NBR), 2 pieces 5 PharMed tubing
2 Cleaning adapter for FILTRATION PROBE sc, 2 pieces 6 Tubing (2 m long, 3.2 x 0.8), LZY195
3 Tubing (4 x 1, 0.7 m), 2 pieces 7 Set of fittings (3.2 mm) LZY111
Tapered insert and union nut (2 pieces each)
4 Disposable syringe (20 mL) 8 Blind plug, 2 pieces, LZY193
