I P S t o r a g e
Rev 1, 9/04
Gigabit Ethernet and SCSI
GbE Interface:
• 10/100/1000 GbE RJ45 Ethernet port
• Supports IP v.4
• Supports iSCSI Protocol 1.0
• Compliance with IEEE 802.3ab GbE
• Compliance with IEEE 802.3x Flow Control
• SNMP MIB 2 support
• Supports Jumbo Ethernet frame
SCSI Interface:
• Single 68-pin SCSI connector
• Ultra160 LVD SCSI – 160 MB/sec.
maximum throughput
• Backward compatible with all single-ended
SCSI devices
• Supports SCSI-3 specifications
Management
Operating Environment:
• Operating system independent
• Supports all SCSI devices including hard
disk drives, tape drives, RAID controllers,
DVD, MO and CD libraries
• Multiple interface orientations available -
Ethernet and RS232 ports can be located
on either the long edge or short edge of
the board (see Figure 2 and 3)
Local and Network Management:
• ExpressNAV™ integrated management
console for remote configuration,
management and diagnostic capabilities
• Command line management access via
Ethernet and RS232
• Local diagnostics supported through
SNMP, Telnet, and FTP
• Includes support for DHCP, ICMP, and RMON
• Built in memory has ECC detection and
correction
• User accessible reset switch
• Built in watchdog timer
• Automatically detects and maps all
connected devices at power on
ATTO iPBridge ™ 1500E
Environmental and Physical
Characteristics
Configurations:
• Embedded Board
Dimensions:
• Embedded Board:
4.4” W X 6.4” L
Operating Environment:
• Operating Temperature: 5-40º Celsius
Power: Standard 4pin power connector, 12V, 1.5A
Nominal power consumption: 1A @ 12V
Weight: 1.5 lbs

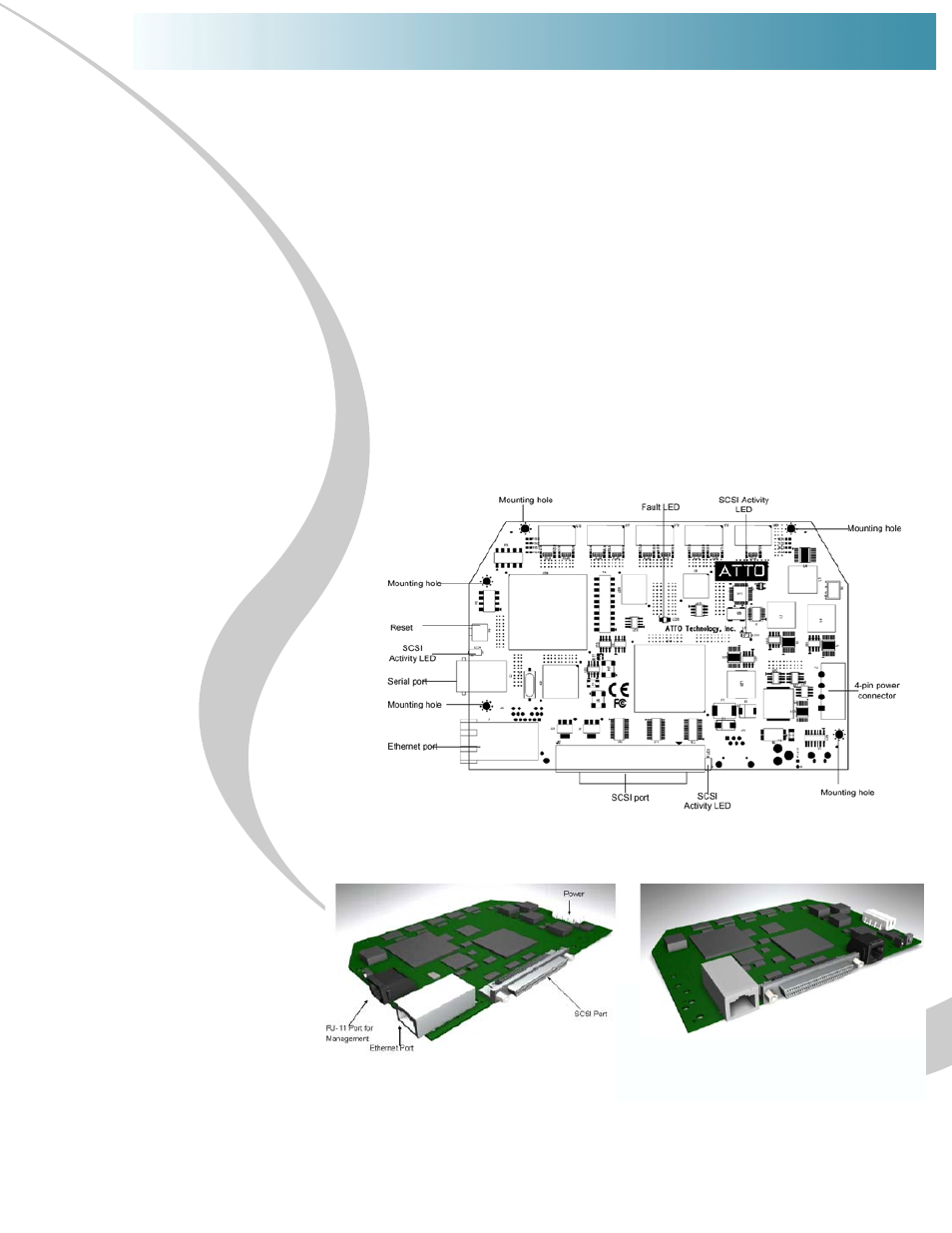

Figure 1 – iPBridge 1500E Board Detail
Figure 2 – iPBridge 1500E Standard
Embedded Configuration Figure 3 – iPBridge 1500E Optional
Desktop Configuration
