44
Additional information for series 34xx sensors

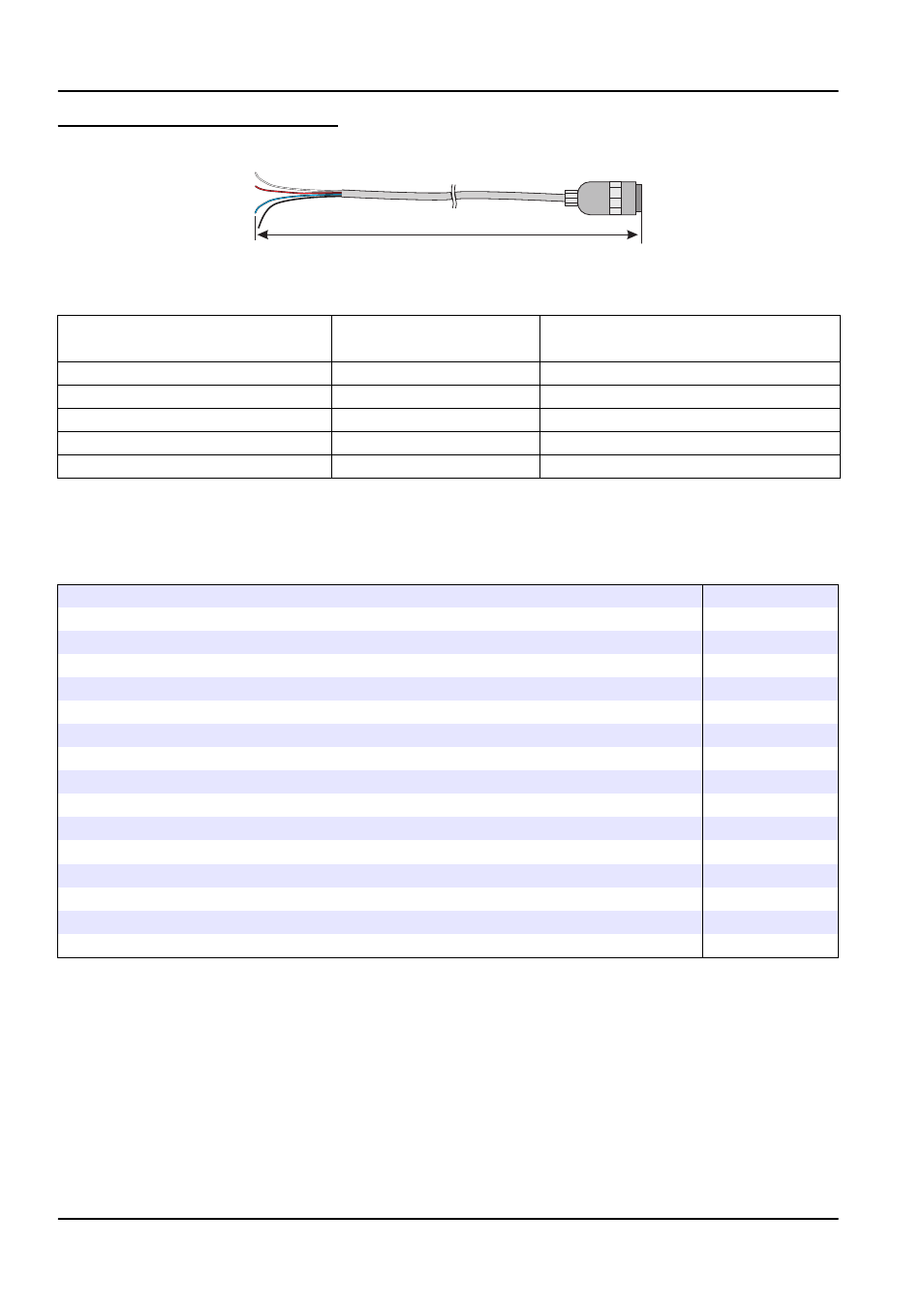

Figure 22: Connection cable sensor / gateway
5 m
Table 12: Cable assignment, digital gateway / 83xx
Sensor (cable colour) Sensor signal
Controller connection sc100
digital gateway
– – J1-1
Pink Outer electrode J1-2
White Temp – J1-3
Grey Temp + J1-4
Brown Inner electrode J1-5
A.6 Spare parts and accessories
Sensor 8310 Z08310=A=0000
Sensor 8311 Z08311=A=0000
Sensor 8312 Z08312=A=0000
Sensor 8315 Z08315=A=0000
Sensor 8316 Z08316=A=0000
Sensor 8317 Z08317=A=0000
Sensor 8394, 1.5 " clamp Z08394=A=1500
Sensor 8394, 1.5 " clamp, with material and surface finish certificates Z08394=A=1511
Sensor 8394, 2 " clamp Z08394=A=2000
Sensor 8394, 2 " clamp, with material and surface finish certificates Z08394=A=2011
Connection cable sensor-gateway, 5 m/16 ft Z08319=A=1115
Bypass chamber, stainless steel, for sensor 8310 ... 8317 Z08318=A=0001
Bypass chamber, stainless steel, for sensor 8394, 1.5 " Z08394=A=8150
Bypass chamber, stainless steel, for sensor 8394, 2 " Z08394=A=8200
Welded fitting, stainless steel, for sensor 8394, 1.5 " Z08394=A=0380
Welded fitting, stainless steel, for sensor 8394, 2" Z08394=A=0510
