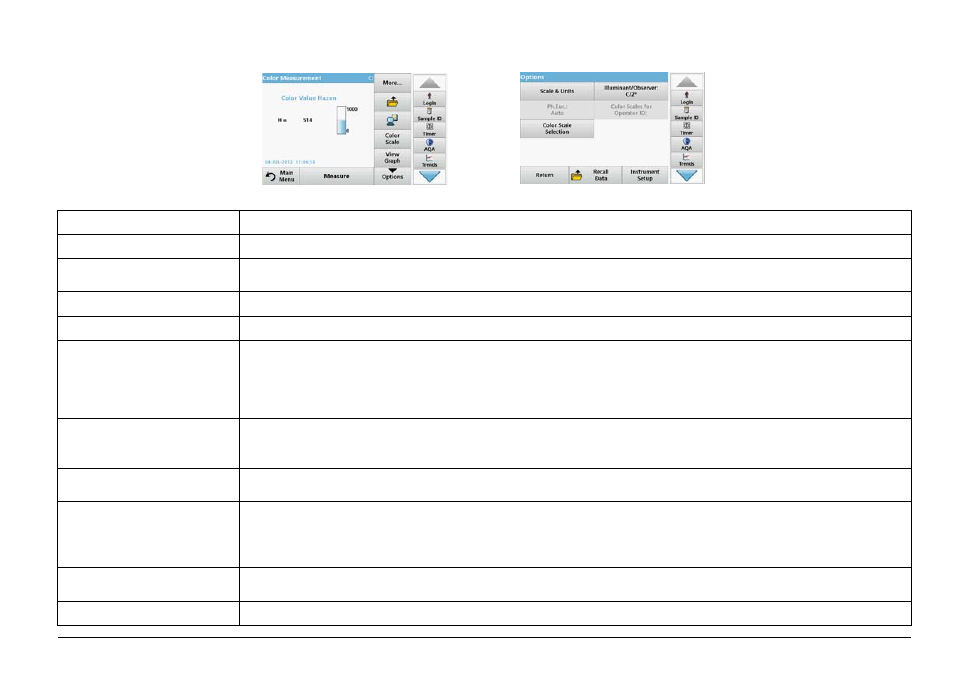

Table 4 Color measurement options
Options
Description
More
For further Options
Save icon
Symbol: Store Data, if Instrument Setup > Data Log Setup > Auto Store: Off is selected.
Symbol: Recall Data, if Instrument Setup > Data Log Setup > Auto Store: On is selected.
Send Data icon
To send data to a printer, computer or USB memory stick (USB A) or network.
Color Scale
Select the color scale
View Graph
View Table
View Values
VIEW GRAPH shows the spectral graph of the transmittance or absorbance graph.
Note: View Graph is activated after the first measured value.
VIEW TABLE displays the spectral transmittance values T% from 380 nm to 720 nm.
VIEW VALUESdisplays the result of the last color calculation.
Scale & Units
UNITS: Select absorbance or transmittance.
SCALE: In the automatic Scale mode, the y-axis is automatically adjusted so that the total scan is displayed.
The manual Scale mode allows sections of the scan to be displayed.
Ph.Eur.: Auto
European Pharmacopoeia
Select AUTO or the REQUIRED SCALE
Color Scale Selection
Define 3 different color scale combinations with up to 3 different color scales for the result display.
Selection 1: Klett Color No. + Yellowness Index
Selection 2: Klett Color No. + ADMI Color No. + Yellowness Index
Selection 3: Yellowness Index + individual transmittance
Illuminant/Observer: C/2°
Illuminant: Select C, A or D65
Observer: 2° or 10°
Color Scales for Operator ID
Individual selection of the color scales for the operator ID.
