ENGLISH
N.B.: An evaluation of the size of the cables with lengths other than the data in the table must be made based on the effective
absorption of the connected devices, according to the instructions indicated by the CEI EN 60204-1 standards.
For connections that require several loads on the same line (sequential), the size given on the table must be re-evaluated based
on actual absorption and distances.

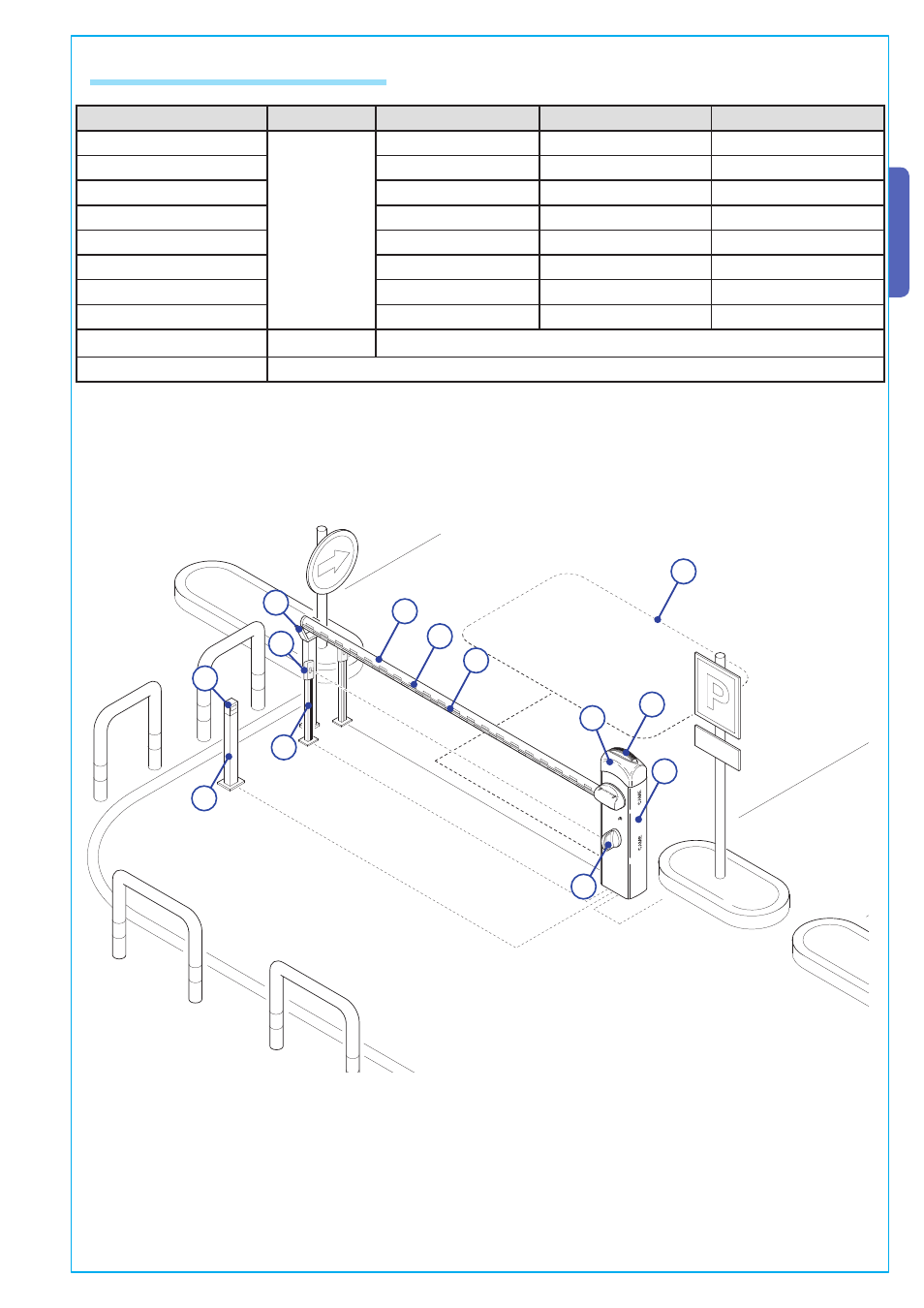

1 - GARD unit
2 - Control panel
3 - Aluminium bar
4 - Red phosphorescent strips
5 - Luminous cord
6 - Movement-indicating flashing lamp
7 - Column for photoelectric cells
2
1
7
3
4
5
6
8
8 - Photoelectric cells
9 - Fixed barrier support
10 - Magnetic sensor
11 - Photoelectric cell support
12 - Magnetic reader
13 - Column for reader
9
10
11
12
13
5.3 Cable list and minimun thickness
Connections Type of cable Length of cable 1 < 10 m Length of cable 10 < 20 m Length of cable 20 < 30 m
230V 2F power supply
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1,5 mm 2 3G x 2,5 mm 2 3G x 4 mm 2
24V motor power supply 2 x 1 mm 2 2 x 1,5 mm 2 2 x 2,5 mm 2
24V - 230V flashing lamp 2 x 0,5 mm 2 2 x 1 mm 2 2 x 1,5 mm 2
Photoelectric cells TX 2 x 0,5 mm 2 2 x 0.5 mm 2 2 x 0,5 mm 2
Photoelectric cells RX 4 x 0,5 mm 2 4 x 0,5 mm 2 4 x 0,5 mm 2
24V power supply accessory 2 x 0,5 mm 2 2 x 0,5 mm 2 2 x 1 mm 2
Control button 2 x 0,5 mm 2 2 x 0,5 mm 2 2 x 0,5 mm 2
End stop 3 x 0,5 mm 2 3 x 1 mm 2 3 x 1,5 mm 2
Antenna connection RG58 max. 10 m
Metallic mass detector (see documents provided with product)
