CAME Gard 4 230v A.C - Manual (Page 3)

3
A
ll t
h
e d
at
a a
n
d i
n
fo
rm
at
io
n c
o
n
ta
in
ed h
er
ei
n
i
s c
o
n
si
d
er
ed
s
u
b
je
ct to c
h
an
g
e a
t a
n
y t
im
e a
n
d a
t o
u
r d
is
cr
et
io
n
ENGLISH
—#
—#
Opening time: 4 s
Operative intermittence: 30 %
Protection level: IP54
Weight: 54 kg
Insulation class: I
4.2 Technical information
GEARMOTOR
Power supply: 230V A.C. 50/60Hz
Motor power supply: 230V A.C. 50/60Hz
Max. absorption: 2.2A
Rated power: 250W
Max. torque: 220Nm
Reduction ratio: 1/202
8
9
7
1
2
3
4
5
ACCESSORIES
VIEW FROM THE BAR
SUPPORT BRACKET
VIEW FROM INSPECTION
HATCH

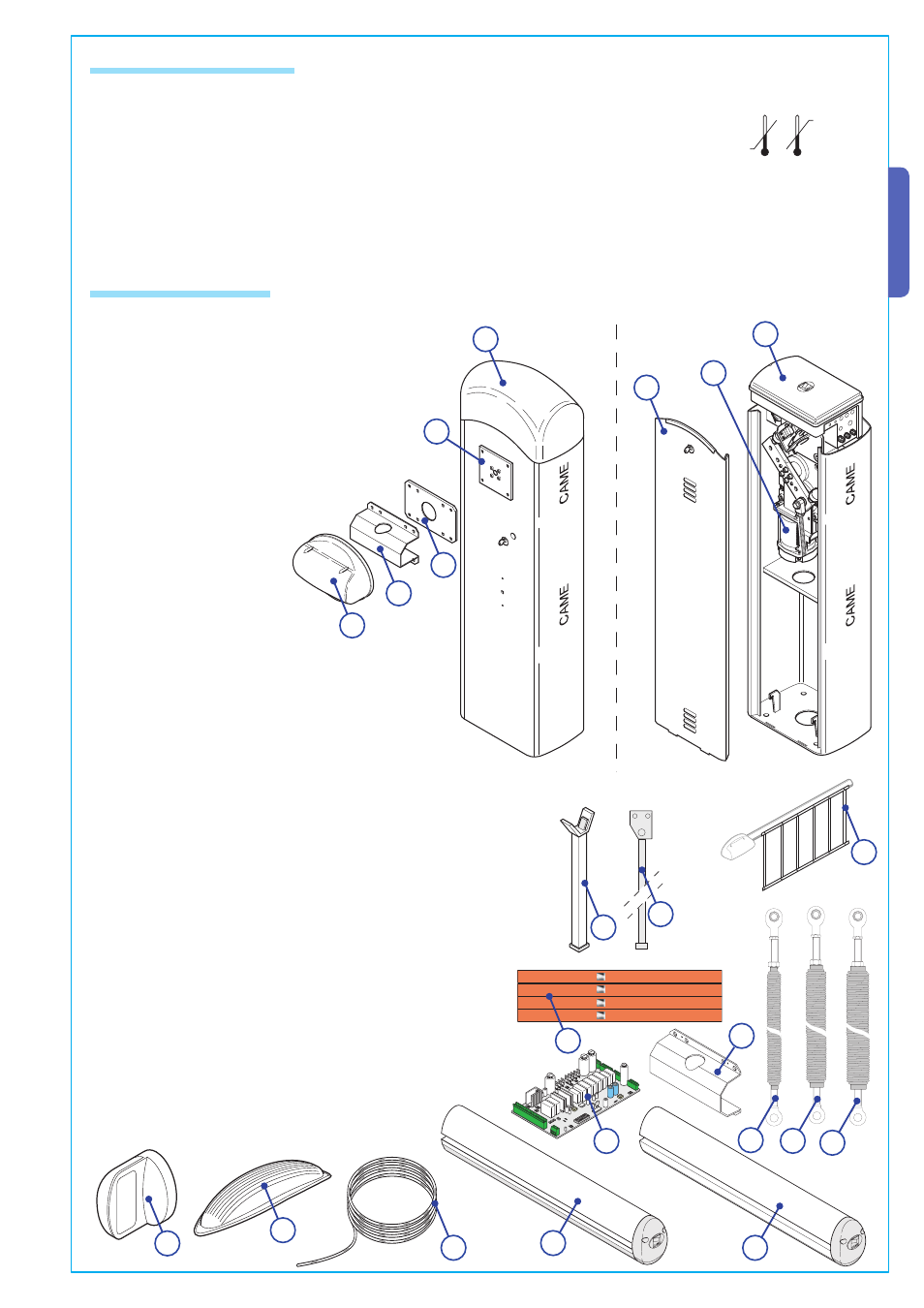

4.3 Parts description
AUTOMATION UNIT
1) Upper dome
2) Bar beam plate
3) Bar fitting intermediate plate
4) Cover for semioval aluminium bar
5) Anti-shearing protection cover
6) Sheet-steel or stainless steel cabi-
net with galvanized and painted finish
7) Inspection hatch
8) Gearmotor
9) ABS container for electric
board with transformer
1) G03750 - Semioval aluminium bar, painted white L = 4 m.
2) G03752 - Oval aluminium bar, painted white L = 4 m.
3) G02040 - Ø40 (yellow) balancing spring
4) G04060 - Ø50 (green) balancing spring
5) G06080 - Ø55 (red) balancing spring
6) G0465 - Rack
7) G02802 - Support for DIR photoelectric cells
8) G02803 - Luminous cord
9) G02807 - Fixed barrier support
10) G02808 - Mobile barrier support
11) G02809 - Adhesive reflector strips
12) G02801 - Flashing dome lamp
13) ZG5/ZG6 - Electric board designed to accommodate radio board
coupling
14) G03753 - Cover for oval aluminium bar
11 -
CAME
CAME
CAME
CAME
:,
7
12
11
8
9
10
13
2
3 4
6
5
1
14
