7

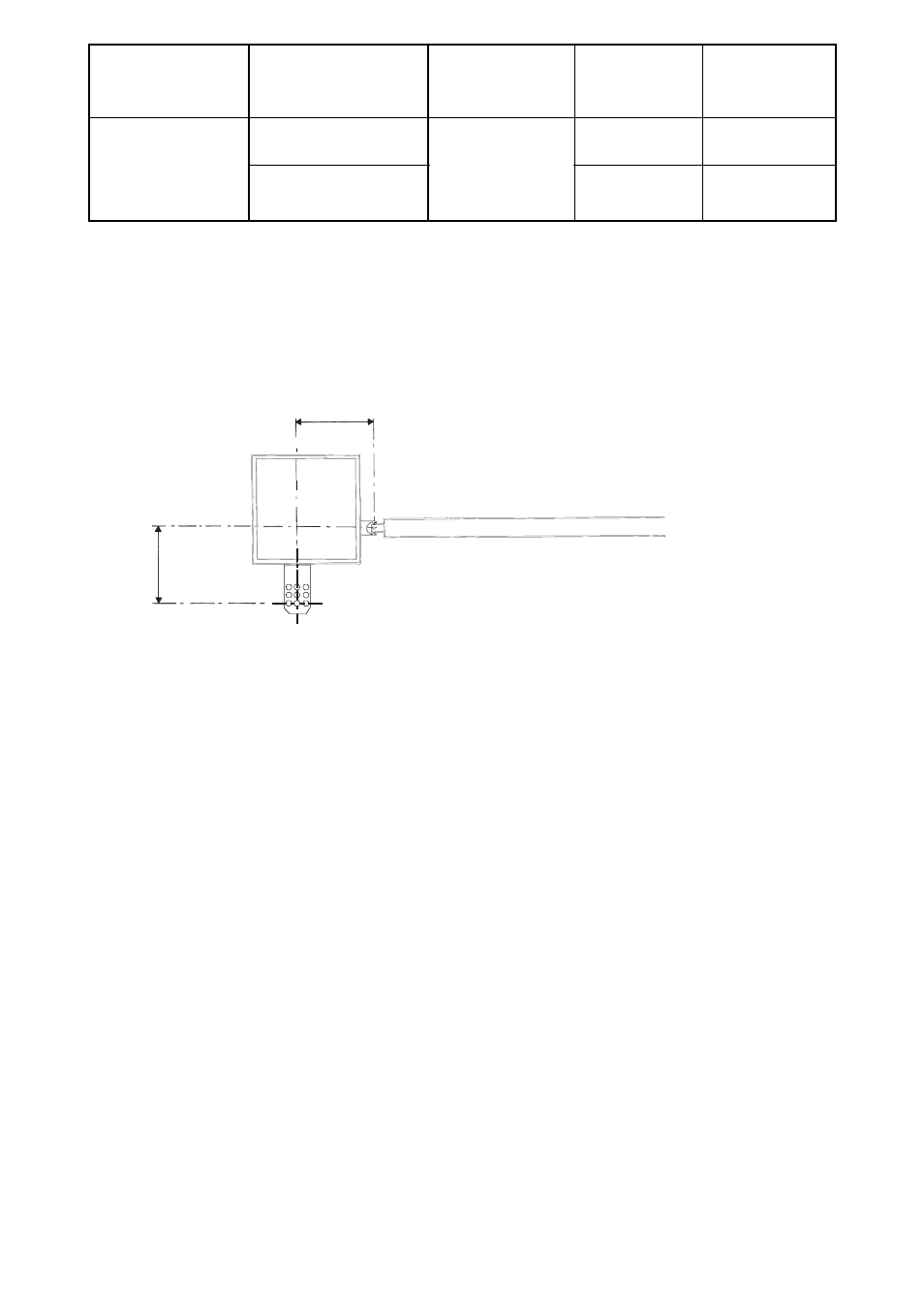

Type Opening A B C
Angle mm mm mm
90° 130 60
KRONO 130
120° 110 50
Attach the rear bracket while respecting distances A and B between the hinge on the gate and the hole
in the centre of the bracket (which is used to hold the gear motor). To make the operation easier, the
KRONO installation kit contains two cardboard templates (for 90° and 120° openings). the rear bracket
is equipped with additional hole to make the fitting of the motor easier, or to change the opening angle
of the gate.
B
A
Fig 5
