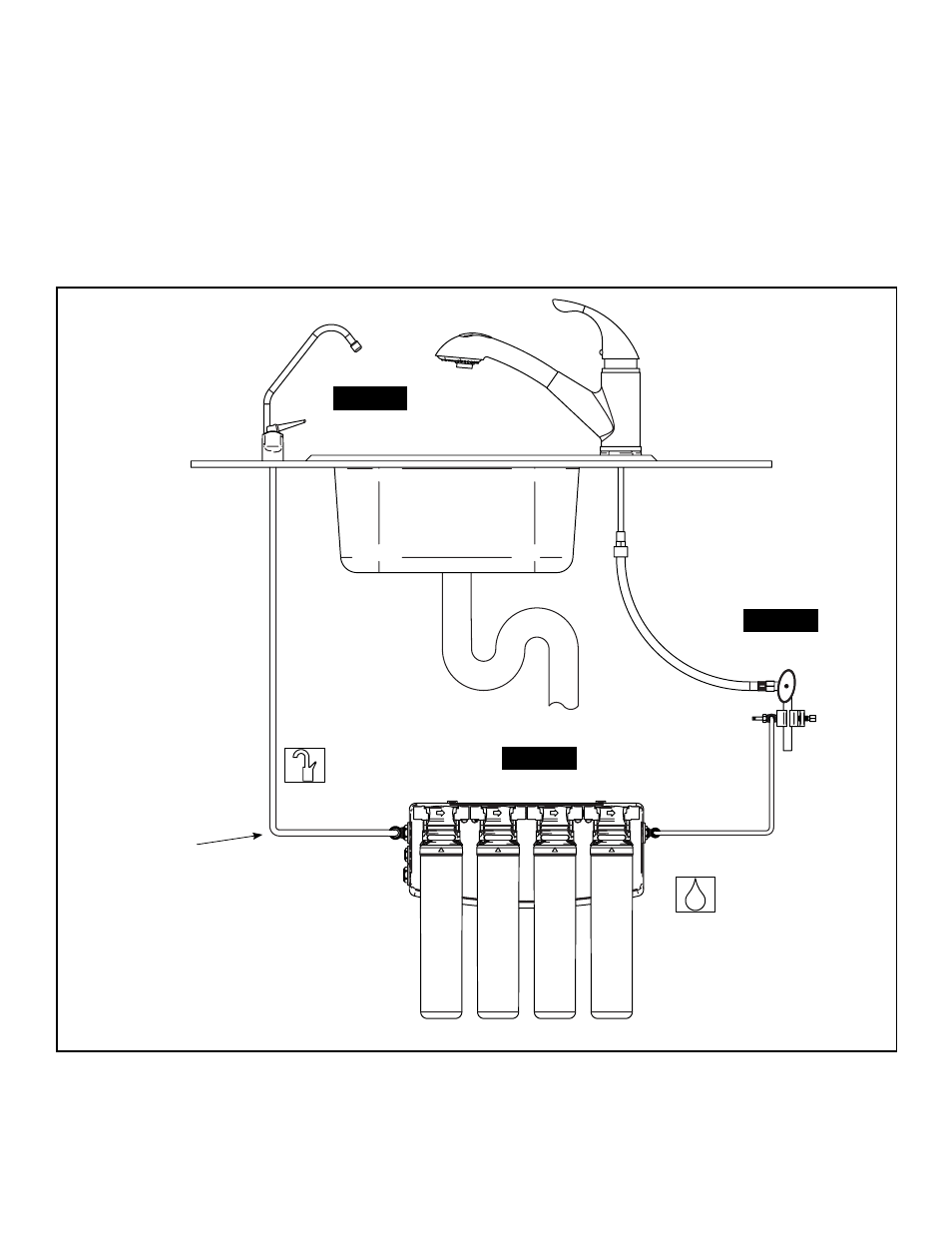

Figure 7
The exact placement of the components will vary by installation. Although shown beneath a sink, it may be installed
in a basement, crawl space, or in an adjacent cabinet. Regardless of where the system is installed, the flow sequence
described by (figure 7) must be observed.
The PURA drinking water system is designed to be mounted near a sink for easy access to cold water. Lengths of 1/4-inch
and 3/8-inch OD plastic tubing will be required to make this installation.
Evaluate the installation site to determine the easiest path for the plumbing to follow. Take care to make the installation as
neat as possible.
Installation
Pura Faucet
UF Manifold
1/4” Feed Line (White)
Cold Water Supply
3/8” Product
Water Line (Blue)
The additional Point of use connection
(Icemakers etc) can be tapped from
here with the use of reducing Quick
Connect Tee (14” X 3/8” X 3/8”)
(Part # PP30121208W).
SteP 2
SteP 3
SteP 4
