Hydrotech Reverse Osmosis Drinking Water System - Manual (Page 4)

2
Supplied Item Checklist
Out of the box, your new R.O. System should be supplied with the following items. If any items appear to be missing,
please contact the distributor who sold the system.
1. Storage tank & right angle shut-off valve with compression nut
2. Reverse Osmosis Manifold
3.
Reverse Osmosis membrane element, 5 micron pre-filter, pre-
carbon filter, carbon filter (in individual sealed protective bags)
4. Filter sump wrench, drain line saddle assembly, tubing bundle,
feed water saddle piercing valve, quick faucet adapter
5. Faucet

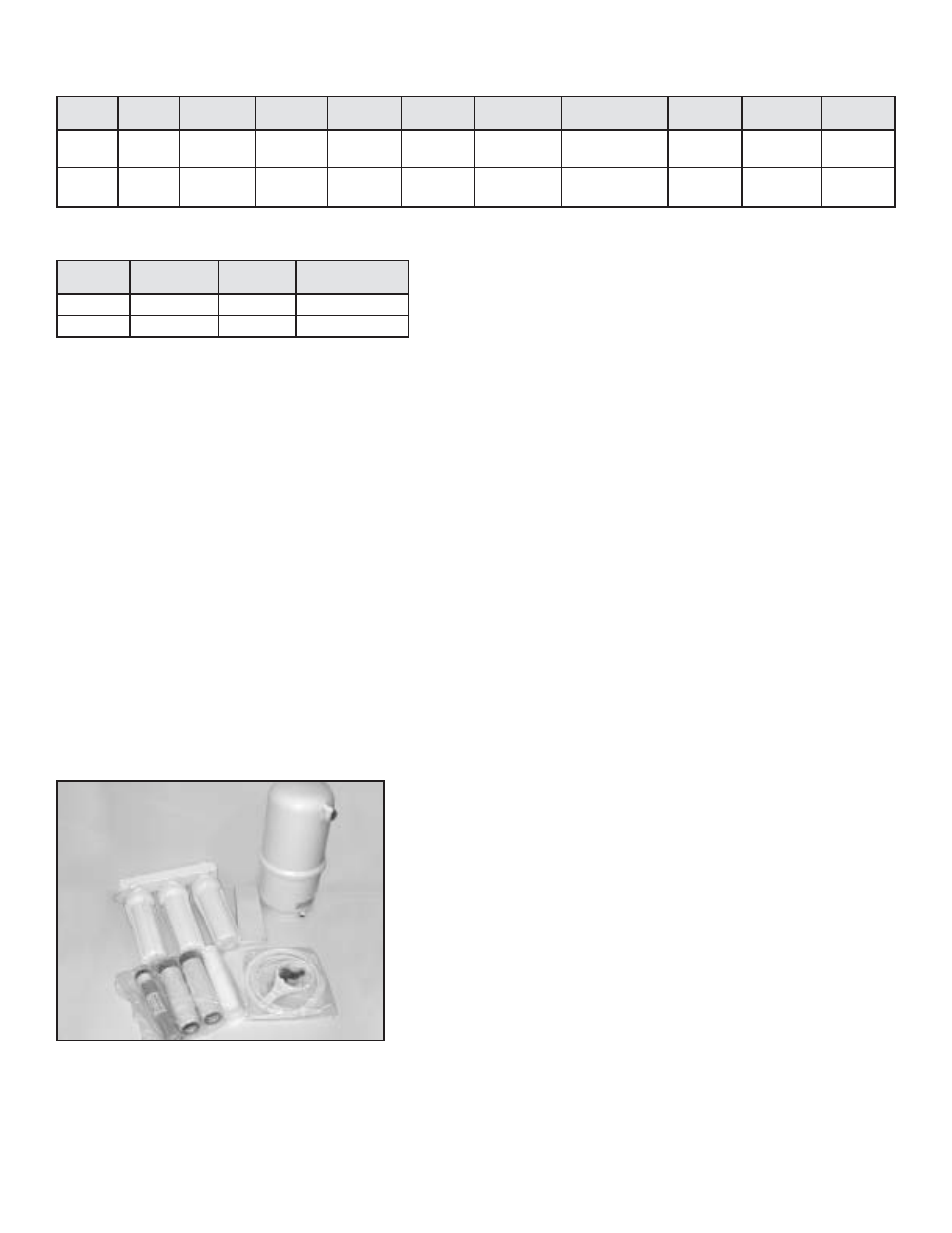

Figure 1 - Supplied items for 3 sump models
Application Guidelines
Functional Description
Feed water enters the 5-micron pre-filter, which filters out suspended particles such as dirt or sediment. The filtered water
then enters the pre-carbon filter, which contains granular activated carbon, which removes any chlorine from the water.
The water then enters the reverse osmosis membrane. The membrane will allow only permeate (product water) to pass
through. The brine (waste water) goes to the drain.
Permeate then flows through a hydraulic shut-off valve to the storage tank. When the tank fills and the tank pressure
reaches approximately 40% to 65% of the inlet feed water pressure, the shut-off valve closes, which turns the system off.
When water is drawn from the faucet, permeate flows from the storage tank through the post carbon filter. This filter
contains granulated activated carbon, removing any taste and odor that has accumulated while stored in the tank. When
the tank empties, the shut-off valve opens, turning the unit on.
Please refer to the Flow Diagram on page 19 .
(1) Nominal product water ratings are based on the following conditions: Supply TDS of 250 ppm
softened tap water, 50 psi (0.36 Mpa), 77°F (25°C), pH 8 and 15% recovery with outlet to
atmosphere.
(2) Rejection percentages are dependent on the supply conditions and the substance being measured.
Notes: The performance of a reverse osmosis membrane is highly dependent upon pressure,
temperature and TDS. The actual volume of product water and rejection percentage will vary with
differences from the test conditions that membrane ratings are based upon.
These drinking water systems are not intended to be used for the treatment of water that is
microbiologically unsafe or of unknown quality.
Specifications
Model Membrane Max. Feed Feed Water Feed Water Feed Water Feed Water Feed Water Feed Water Feed Water Feed Water
Number Type Water Salinity Temperature Pressure pH Supply Hydrogen Sulphide Manganese Iron Hardness
E50TFC-3 TFC 2000 ppm 40-110°F 50-100 psi 2.0-11.0 Chlorinated None <0.05 ppm <0.1 ppm <10 gpg
Unchlorinated
E75TFC-3 TFC 2000 ppm 40-110°F 50-100 psi 2.0-11.0 Chlorinated None <0.05 ppm <0.1 ppm <10 gpg
Unchlorinated
Model Membrane Rejection (2) Storage Tank
Number Production Rate (1) Capacity US Gal
E50TFC-3SF 50 USGPD up to 99% 4.0
E75TFC-3SF 75 USGPD up to 99% 4.0
