III
GENERAL INFORMATION
This Owner’s Guide covers all components that may be included with a system. Information relating to any component that is NOT included
with your system may be disregarded.
TO FAUCET AIR GAP
TO FAUCET
TO TANk
TAPPING SADDLE VALVE
PRODUCT WATER FAUCET
FAUCET CONNECTOR
DRAIN LINE FROM AIR GAP
TO DRAIN (3/8” RED TUBING)
PRODUCT WATER LINE FROM CARBON
POST-FILTER TO FAUCET (3/8” BLUE TUBING)
FLOW RESTRICTOR TUBING TO AIR GAP
(1/4” FLR RED TUBING)
SMARTAP® MONITOR 12403 SERIES
SEDIMENT FILTER
CARBON PRE-FILTER
CARBON POST-FILTER
DRAIN CLAMP
MEMBRANE FILTER PRODUCT WATER LINE TO STORAGE TANk
(3/8” WHITE TUBING)
SOURCE WATER FEED LINE TO PRE-FILTER
(1/4” WHITE TUBING)
TOP VIEW
WATER
SUPPLy
SYSTEMS WITH AIR GAP FAUCET, MODEL 12403
REVERSE OSMOSIS SYSTEM
Item Description Part No.
1 4 Vessel Module, With Quality Monitor Fig 8
MEMBRANE AND FILTERS
2 Reverse Osmosis TFC Membrane
9 GPD, yellow Casing, Red Tape 33001071
25 GPD, yellow Casing, Black Tape 33001068
50 GPD, yellow Casing, White Tape 33001033
75 GPD, yellow Casing, Blue Tape 33001056
3 Sediment Filter 41400008
4 Carbon Pre-Filter 41400009
5 Carbon Post Filter 41400009
FLOW RESTRICTOR TUBING
6 Flow Restrictor Tubing
9 GPD 40600034
25 GPD 40600040
50 GPD 40600041
75 GPD 40600042
n/s - not shown

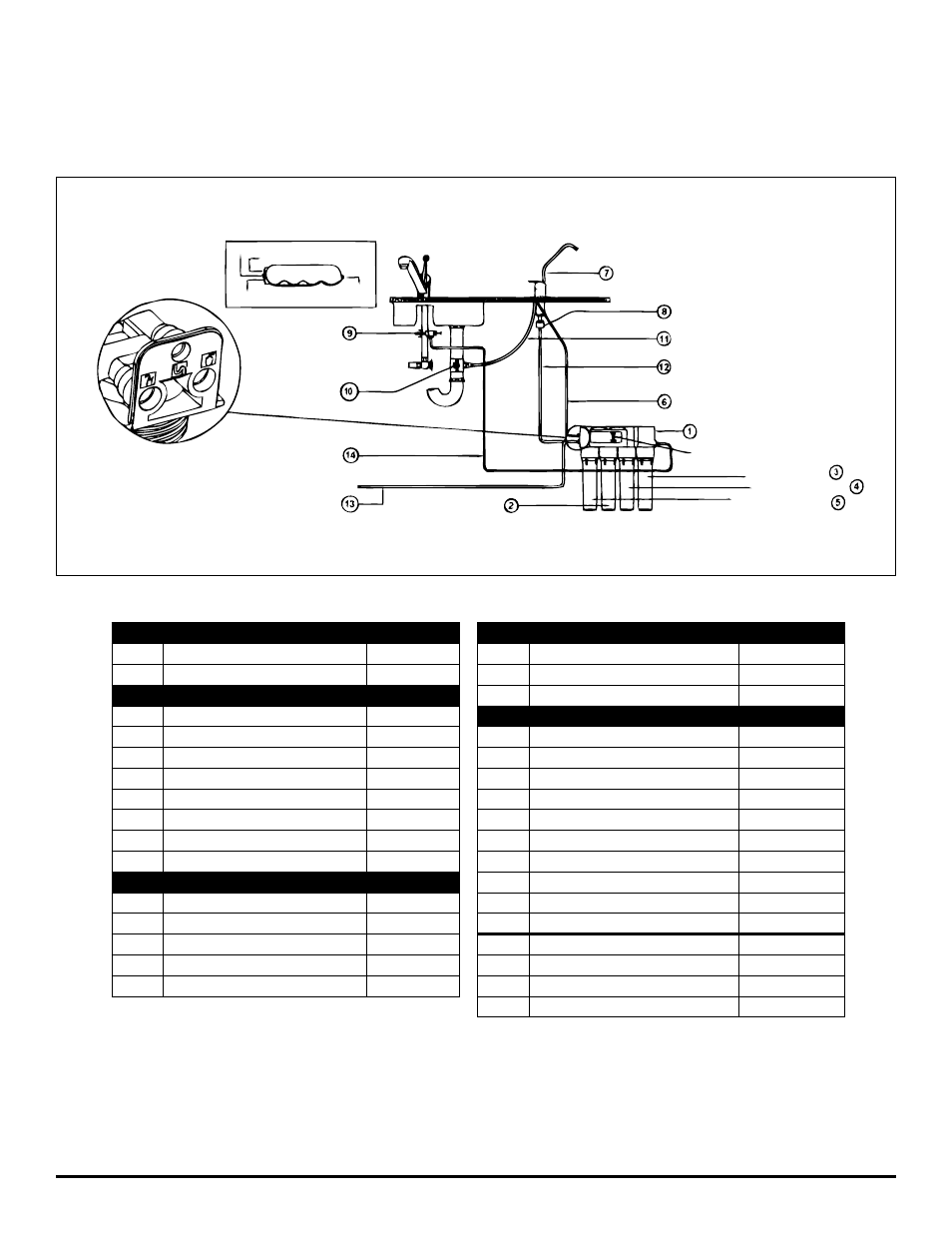

FIGURE 1.A: Component* and Interconnection Locators, Model 12403
*Replacement parts can be obtained from your local dealer. Refer to your local dealer stamp at the back page of this manual.
PRODUCT WATER FAUCETS
Item Description Part No.
7 Chrome-Plated Metal, Air Gap 92192, Fig 7
8 Connector, Faucet 3/8” x 7/16” 92407
INSTALLATION kIT
Complete kit
9 Supply Valve, Saddle-Tapping 92276
10 Drain Clamp, Saddle Clamp, Air Gap, 3/8” 92160
11 Tubing, 3/8”, Red 87604
12 Tubing, 3/8”, Blue 87600
13 Tubing, 3/8”, White 115207
14 Tubing, 1/4”, White 115200
n/s Screw, Mounting Bracket (2 each) 32701006
n/s Elbow, Stem, 3/8” (2 each) 33501071
n/s Elbow, Stem ¼” (2 each) 33501064
n/s Owner’s Guide 36101291
n/s kit, O-Rings, Collets, QC ¼” & 3/8” 92166
n/s Safety Clip 1/4” 96345
n/s Safety Clip 3/8” 92346
