Model 7000
22
Bypass Assembly

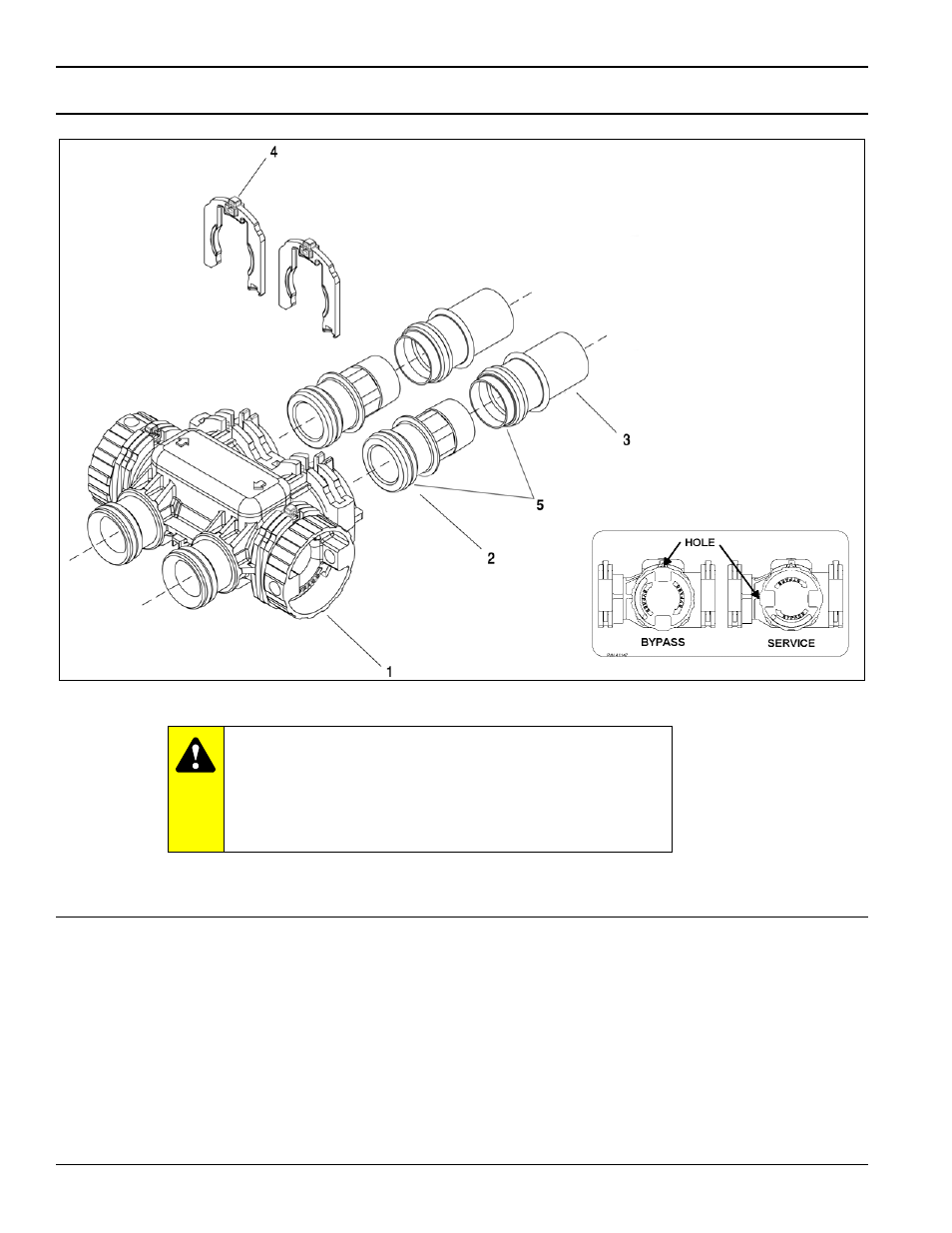

Figure 24: 7000 Bypass Assembly
IMPORTANT
To bypass the valve, turn bypass knob on both sides of the
valve to bypass position. (See
Figure 24 B.)
When returning to service, put the inlet into service before
the outlet.
Item Number No. Req’d Part Number Description
1 1 40569 7000 bypass assembly
2 1 40563 connector, 1" NPT
40563-10 connector, 1" BSP
40565 connector, 1-1/4" NPT
40565-10 connector, 1-1/4" BSP
3 1 40953 connector, 1-1/4" sweat, copper
4 2 40576 clip, H, plastic
5 1 40951 o-ring
Not Shown
1 61462 7000 valve bypass service kit
(includes all internal parts for 7000 bypass assembly–
bypass body not included)
41147
41118
Figure 24B
