Installation Instructions

All government codes and regulations governing the installation of these devices must be observed.
CAUTION: If the ground from the electrical panel or breaker box to the water meter or underground copper pipe is tied to

the copper water lines and these lines are cut during installation of the Noryl bypass valve and/or poly pipe, an approved

grounding strap must be used between the two lines that have been cut in order to maintain continuity. The length of the

grounding strap will depend upon the number of units being installed and/or the amount of copper pipe being replaced

with poly. See Figure 1.
In all cases where metal pipe was originally used and is later interrupted by poly pipe or the Noryl bypass valve as

in Figure 1 or by physical separation as in Figure 2, an

approved ground clamp with no less than #6 copper

conductor must be used for continuity, to maintain proper

metallic pipe bonding.
Check your local electrical code for the correct clamp and

cable size.

1. Determine the best location for your water filter, bearing

in mind the location of your water supply lines, drain

line and 120 volt AC electrical outlet. Subjecting the

filter to freezing or temperatures above 43°C (110°F)

will void the warranty.

Media Installation (When Necessary)

• For installation of stack distributor, remove the old

scaleless stack/ or conventional distributor tube from the

tank after removing the media from the tank. Install the

new Scaleless stack (come complete with lower basket

and distibutor tube). Cut grey distributor tube so that the

scaleless stack and control valve fits in the tank.

• Remove the valve from the mineral tank.

• Temporarily plug the open end of the riser tube to ensure

that no resin or gravel falls down into the distribution.

• Fill mineral tank one quarter full of water to protect

distribution during gravel installation.

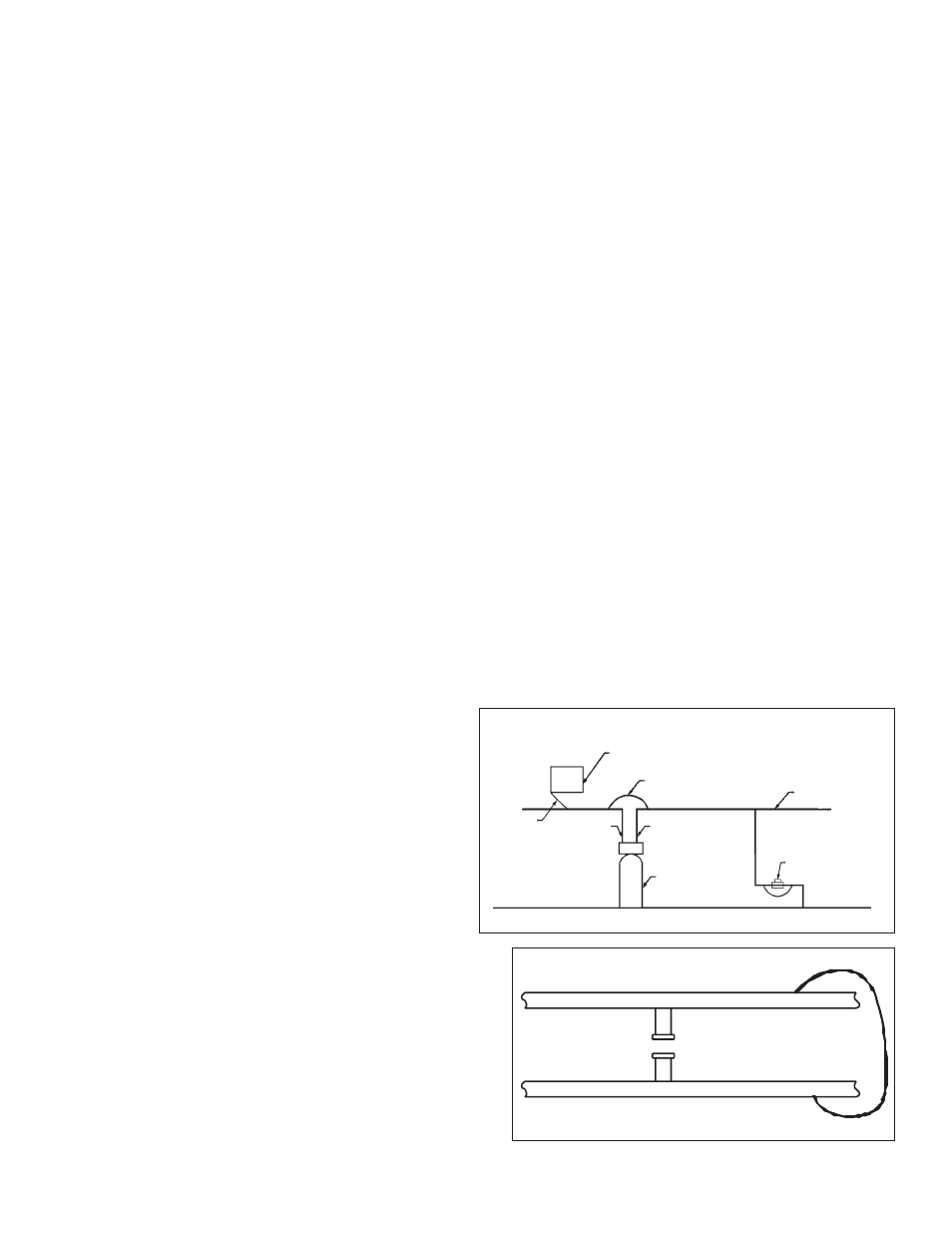

Figure 1

Electrical Panel

Ground Strap

Poly Pipe

Ground

From

Panel

Poly Pipe

Filter

c/w Plastic Bypass

Copper Pipe

Water Meter

Figure 2

Outside Water Line For Outside & 3rd Tap Comes From Meter

Filtered Water Line in Home

Unfiltered Water Bypass

Loop Cut & Capped

Ground Strap Required

Because of Break in Continuity

Day of the Week Control

This control regenerates the system on a weekly schedule. The schedule is defined in Master Programming by setting

each day to either “off” or “on.” The control will initiates a regeneration cycle on days that have been set to “on” at the
specified regeneration time.

Control Operation During a Power Failure

The SXT includes integral power backup. In the event of power failure, the control shifts into a power-saving mode. The

control stops monitoring water usage, and the display and motor shut down, but it continues to keep track of the time and

day for a minimum of 48 hours.
The system configuration settings are stored in a non-volatile memory and are stored indefinitely with or without line

power. The Time of Day flashes when there has been a power failure. Press any button to stop the Time of Day from

flashing.
If power fails while the unit is in regeneration, the control will save the current valve position before it shuts down. When

power is restored, the control will resume the regeneration cycle from the point where power failed. Note that if power

fails during a regeneration cycle, the valve will remain in it’s current position until power is restored. The valve system

should include all required safety components to prevent overflows resulting from a power failure during regeneration.
The control will not start a new regeneration cycle without line power. If the valve misses a scheduled regeneration

due to a power failure, it will queue a regeneration. Once power is restored, the control will initiate a regeneration cycle

the next time that the Time of Day equals the programmed regeneration time. Typically, this means that the valve will

regenerate one day after it was originally scheduled. If the treated water output is important and power interruptions are

expected, the system should be setup with a sufficient reserve capacity to compensate for regeneration delays.
