Installation Manual

- 7 -

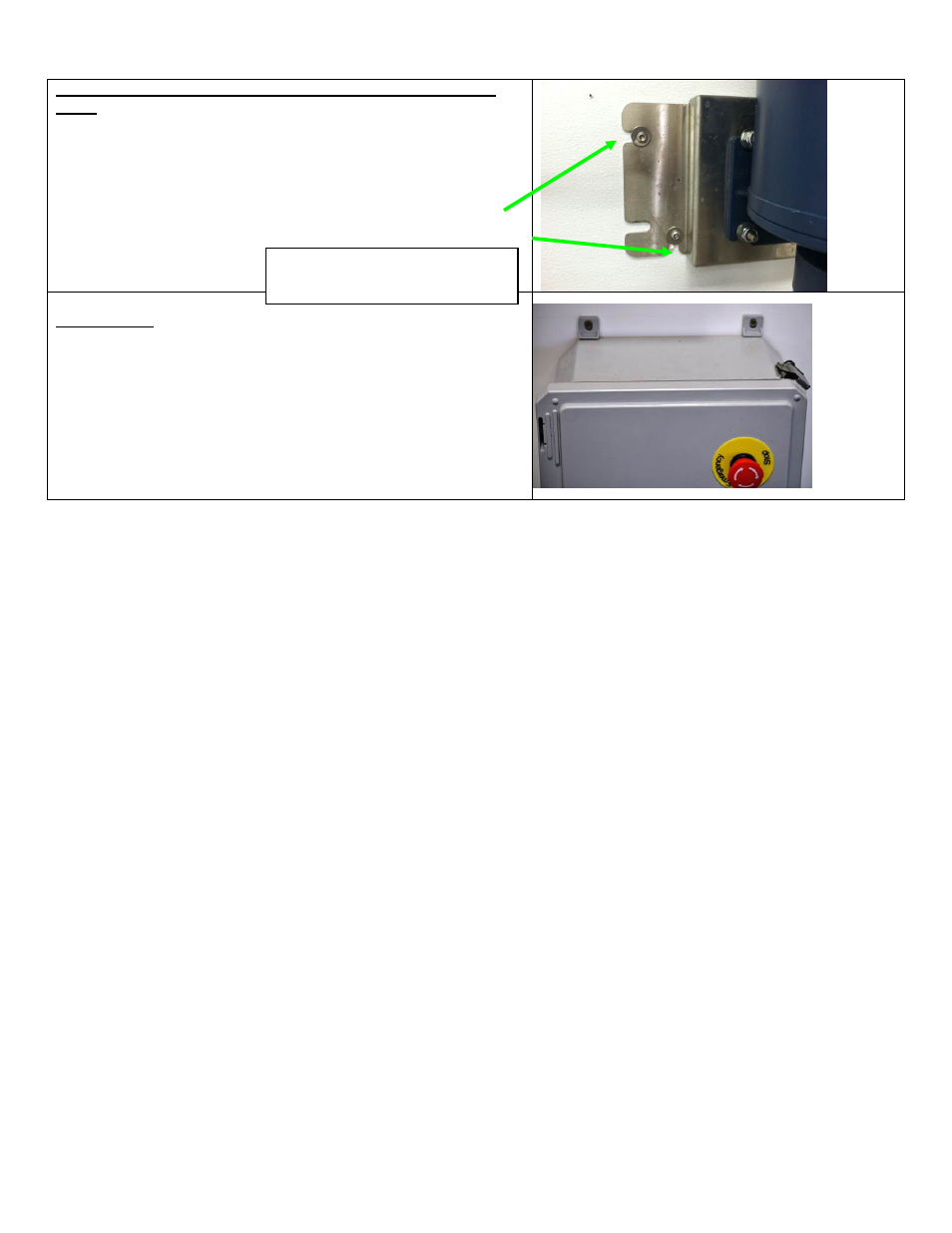

Pump Assembly – need to be within 6’ of furthest Aqua-Lab
panel

1. Drill

3/8”

holes in wall for bottom slots (20” on center pump

nose down, 3.5” on center pump nose sidewise – Dual
stand)

2. Insert concrete anchors, set pump on bolts and tighten

down.

3. Hold pump stand in place, drill top holes, insert anchors

and tighten

Motor Starter

Mount to the wall with 4 appropriate anchors

Use these slots if mounting
pump nose down
