1. Mount pump

using 4x 3/8” wedge Anchors provided (3/8” hammer drill required)

Mounting slots 3.75”W x 3.38”H

2. Mount electrical box and delivery panel using Tapcon anchors

provided (5/32” hammer drill

required)

a. Electrical Box

– Hole spacing 7.4”W x 3.5”H

b. Panel

– Slot spacing 17.5”W x 15”H

Run ¾” water line to the inlet of the pump

4. Close the ball valve on the pump outlet line and open the feed to the pump
5. Point the outlet line towards a drain or a container and open the ball valve until water is flowing

freely to prime the pump.

6. Close the ball valve and attach the quick connect to the chemical delivery panel and re-open

the ball valve

Run a 3/8” poly airline to the chemical panel and supply with at least 60psi of air pressure

8. Wire the signal wire from the provided electrical box to the box with the signal to fire the

application

9. Connect the DIN I solenoid cable from the electrical box to the air valve.
10. Check that relay installed in the electrical box corresponds with the signal voltage from the car

wash controller (120VAC relay is installed from the factory, 24 VAC and 24VDC relays are
included inside the electrical box)

11. Plug 120VAC power cord into a circuit with 20 amp available capacity
12. Install or identify an existing arch to mount the Tsunami applicator to

IMPORTANT!! The Tsunami applicator requires a level sturdy arch or other
mounting feature as it does not include one

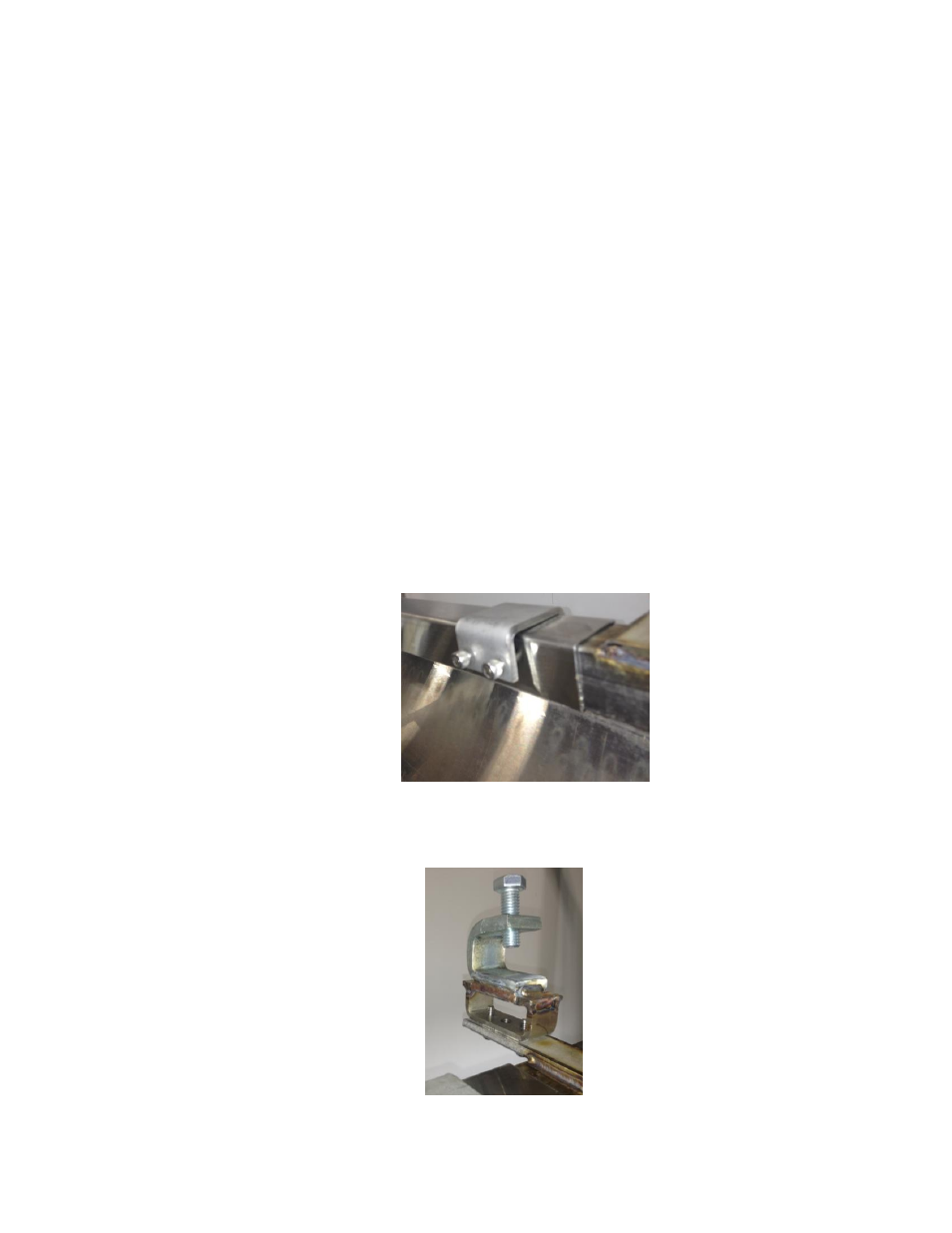

13. Clamp the rain bar into the trough using the provided clamps as shown

14. Center the applicator on the largest vehicle that can safely pass thru the tunnel
15. Make sure that the applicator is level side to side
16. Securely attach the applicator to the arch using the mounting tabs and / or the included

brackets.

17. Run and con

nect three ½” polyflow lines for the chemical solution and three 3/8” polyflow lines

for the foaming air from the chemical delivery panel to the foam generators on the applicator.
