Hellwig Sway Bar 7897 - Manual (Page 3)

7800 Special instructions for 2007+ Silverado/Sierra 1500
BEFORE INSTALLATION OF SWAY BAR ASSEMBLY, RELOCATE EMERGENCY
BRAKE CABLE USING SUPPLIED BRACKET AND 5/16 BOLT AS SHOWN IN
PHOTO (1).
IT MAY BE NECESSARY TO TRIM THE DRIVER’S SIDE SHOCK BRACKET AS
SHOWN IN PHOTO (2) TO ALLOW SADDLE BRACKET TO SEAT ON CROSSMEM-
BER.
WHEN ORIENTING SWAY BAR, ROTATE SADDE BRACKETS REARWARD AS
SHOWN IN PHOTOS (3) & (4) TO ALLOW CLEARANCE TO AXLE CASTING.
FOLLOW ALL INSTRUCTIONS ON PAGE TWO WITH EXCEPTIONS LISTED
ABOVE.
7800 ( R-7800) 11/10/06
559-734-7451 800-367-5480 FAX 559-734-7460

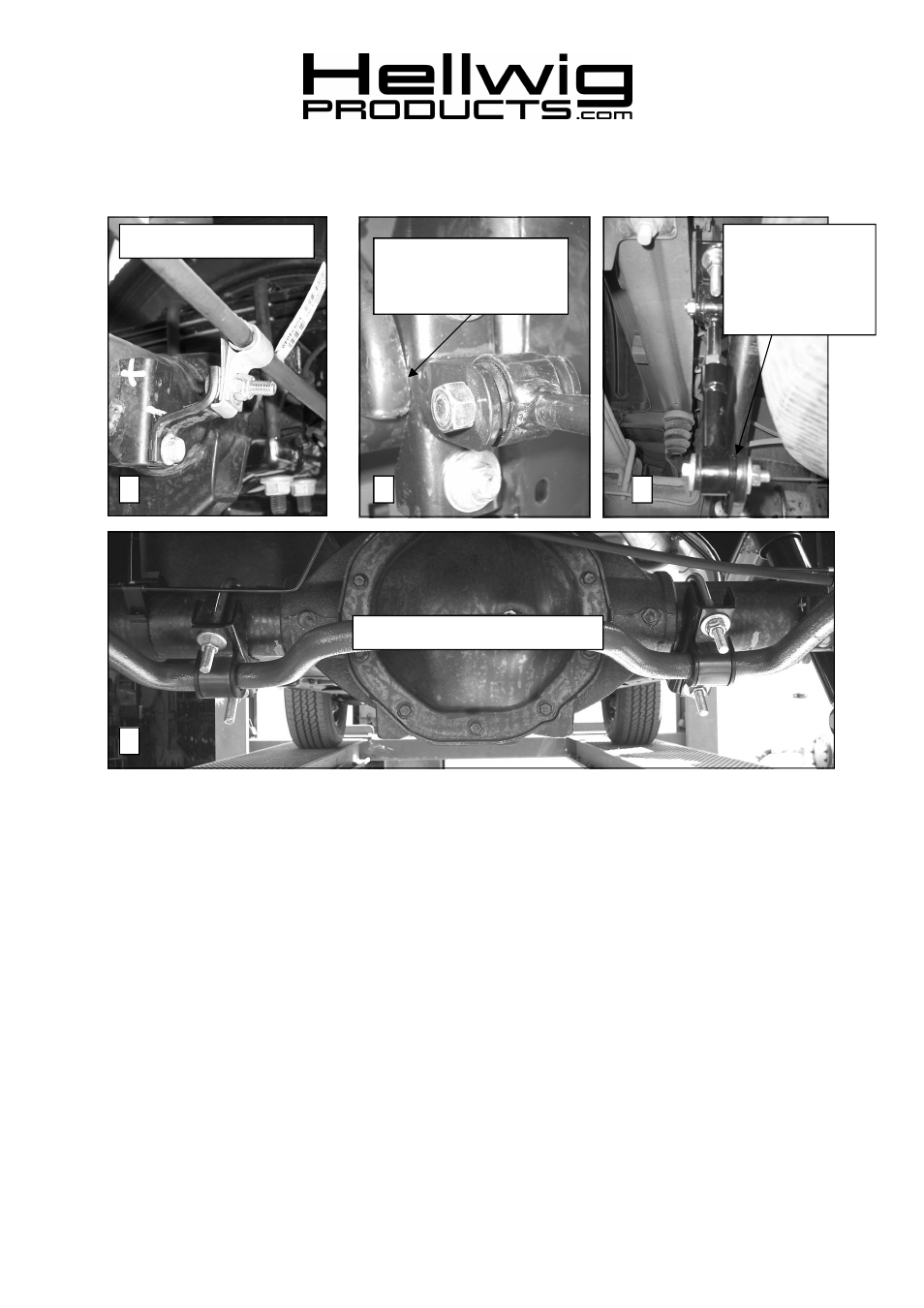

May need to trim driver’s
side shock bracket here 1/8”
for saddle bracket to seat
1 2 3
4
Emergency Brake Relocation
Note Saddle bracket orientation
2007”+ Vehicles
1/2” spacer may be
needed between bush-
ing and sway bar for
2007+ vehicles
