INSTALLATION INSTRUCTIONS
Rear Stabilizer Bar
2007 Toyota Tundra
Thank you for purchasing a quality Hellwig Product.
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND CHOCK TIRES.
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST BAR, THE WEIGHT OF THE VEHICLE MUST BE ON THE SUSPEN
SION, AS IF DRIVING DOWN THE ROAD. DO NOT RAISE VEHICLE BY FRAME.
NOTE: THIS KIT INCLUDES LOCK NUTS WHICH REQUIRE TIGHTENING WITH A WRENCH AFTER BEING STARTED BY HAND.
7692 (R-7692) 08/22/2007

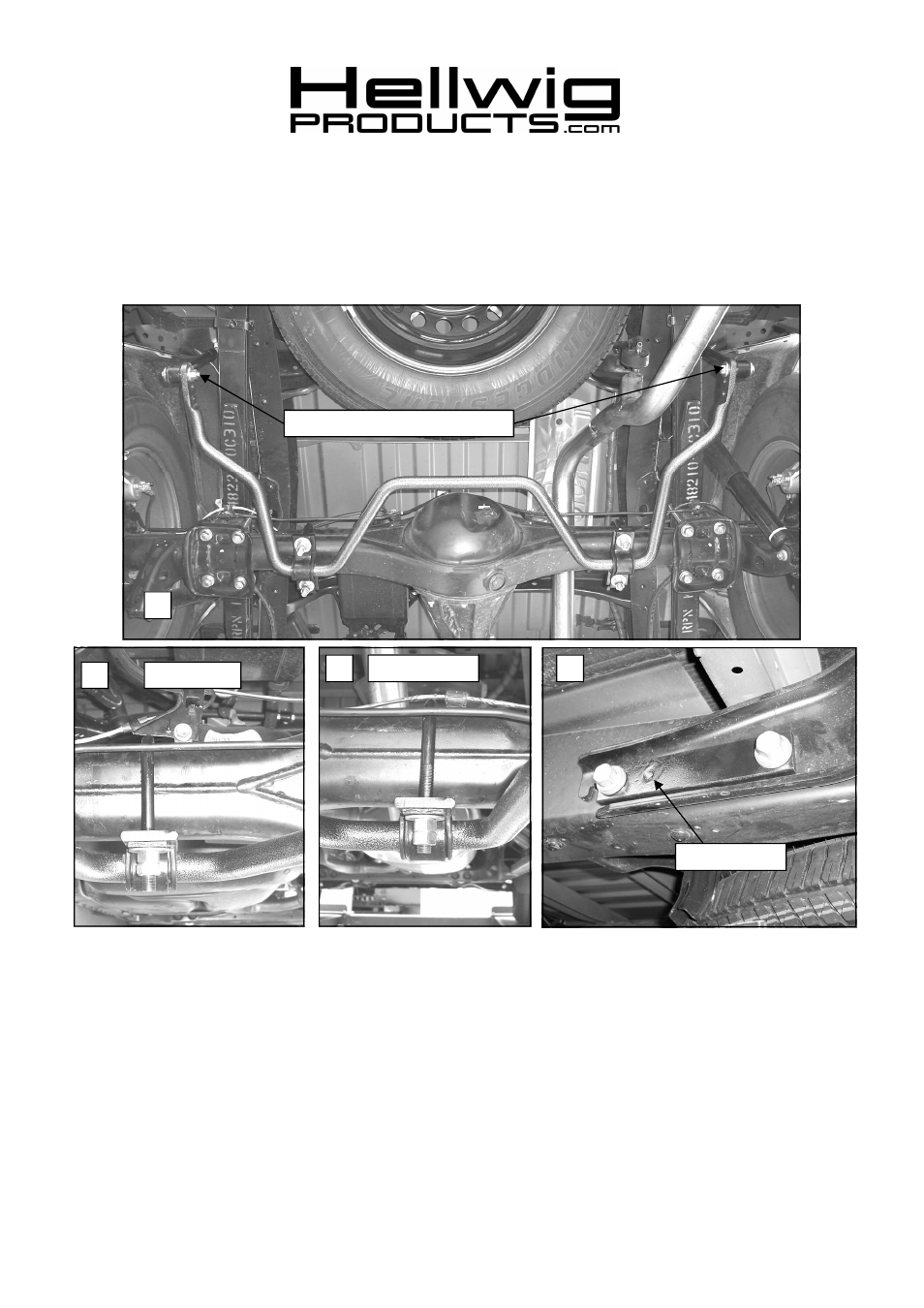

1. Place the U-bolts over the axle tubes as shown in photos 2 & 3. Be careful to place the U-bolts under any
brake lines or wires so not to damage them when the U-bolts are tightened.
2. Lubricate the D-shaped bushings and place them on the flat areas of the bar to line up with the U-bolts. Place
the U-plates over the D bushings.
559-734-7451 800-367-5480 FAX 559-734-7460
1
2
3 4
Threaded Hole
Driver Side
Passenger Side
Attach end links to outermost hole
