6.

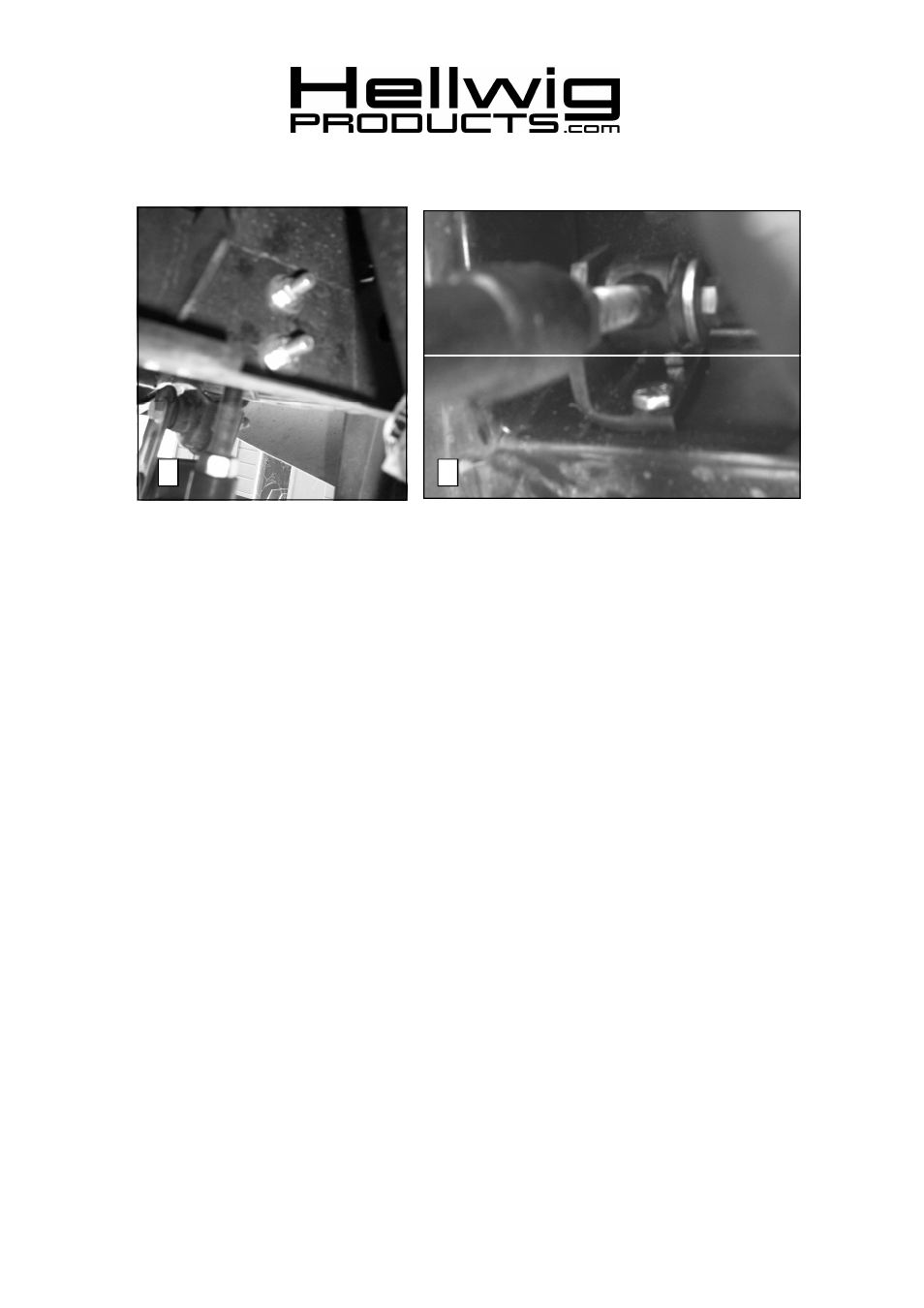

Assemble the angle brackets to the end links as shown in Photos 4,5,&6. The angle brackets will attach to the wall of the
shock crossmember.
7.
Align the sway bar and end links on the vehicle to match the photos.
Make sure that the sway bar installation will not
interfere with any suspension or exhaust components. The end links are adjustable to accommodate various ride height
and mounting preferences. When the end links and sway bar are properly aligned, locate and mark the holes for the angle
brackets.
8.
Drill 13/32” holes for the angle brackets and mount angle brackets as shown in Photos 5&6 using the 3/8” bolts and hard-
ware. It may be necessary to remove the spare tire and disconnect the exhaust pipe hanger for clearance while drilling
holes.
9.
Torque all mounting hardware to spec. Double nut the axle U-bolts after tightening to spec.
10. Re-install spare tire and re-connect exhaust pipe hanger (if required).
11. The sway bar arms have two mounting holes. Mounting the sway bar on the outer hole is the nominal position. For firmer
settings, use the inner holes. We recommend starting with the outer mounting hole as in photo ( 2 ) until you are accustomed
to the vehicles new handling characteristics. Select the mounting point that best fits your driving style.
12. Bounce the vehicle checking for clearance on all undercarriage components shocks, exhaust etc… test drive the vehicle and
recheck your installation.
Recheck periodically on a regular basis thereafter.
ATTENTION INSTALLER:
BE SURE THE CUSTOMER RECEIVES THIS INSTRUCTION SHEET, ALL WARNING
AND NOTE CARDS AND THE WARRANTY FORM.
