3. Remove self tapping bolt from drivers side frame rail (fuel filter bolt). Slide driver’s side frame plate behind fuel filter.

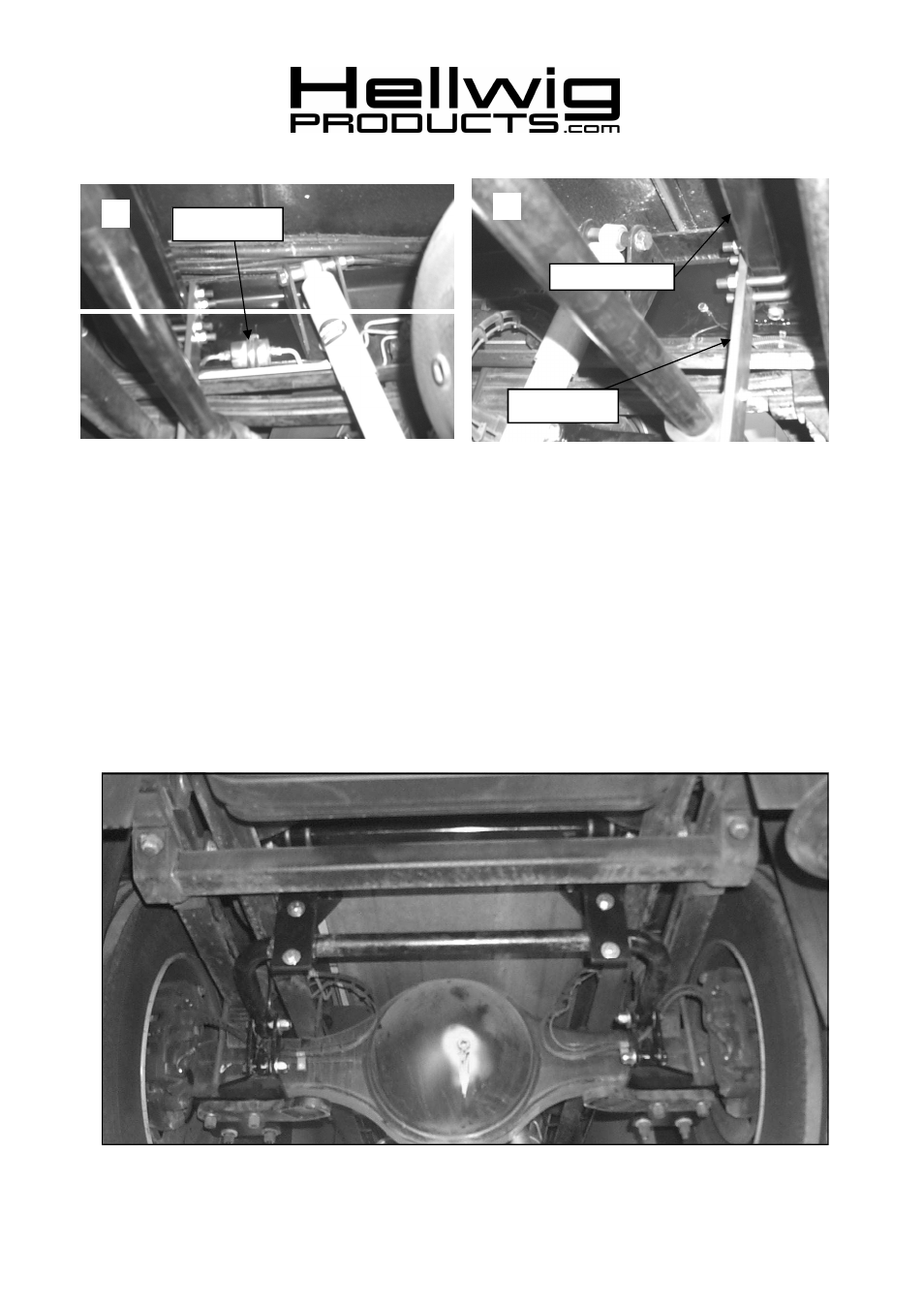

Reinstall filter and shock bracket as shown in photo 3, but leave bolts loose at this time.
4. Leave passenger side ground bolt installed and place frame plate over ground bolt. Install shock bracket but leave bolts
loose at this time.
5. Place crossmember into frame brackets using hardware provided and tighten all hardware to recommended torque.
6. Attach swaybar drop plates to crossmember using the four U-bolts provided. LEAVE LOOSE AT THIS TIME FOR
ADJUSTMENT LATER.
7. Prelube swaybar bushings and install swaybar on drop plates with U-plates and hardware provided. Drop plates and
U-plates should be as far outward as possible on the swaybar.
8. Install end-links on swaybar and rotate into position then connect end-links to mounting tabs on U-bolt plate installed in
step #1.
9. Reinstall shocks and double check your installation making sure all hardware is tightened to specified torque rates.
10. Recheck your installation after one weeks driving and periodically thereafter.
ATTENTION INSTALLER: PLEASE MAKE SURE CUSTOMER RECEIVES THIS INSTRUCTION SHEET,
ALL IMPORTANT NOTE CARDS, WARNING CARDS AND THE WARRANTY FORM.
7219 (R-7219) 07/08/03
Drop Plate
3
4
Fuel Filter
559-734-7451 800-367-5480 FAX 559-734-7460
4 Crossmember
