INSTALLATION INSTRUCTIONS
REAR STABILIZER BAR
67-69 CAMARO & FIREBIRD
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION
5814 ( R-5814 ) 02/15/07
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.-5/8”=120 ft. lbs
SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND CHOCK
TIRES.
NOTE: THIS UNIT IS DESIGNED TO REPLACE THE FACTORY INSTALLED REAR ANTI-SWAY BAR. OR AS
AN ADDITION IF THE VEHICLE WAS NOT EQUIPPED WITH A FACTORY REAR SWAY BAR.
NOTE: THIS KIT INCLUDES LOCKNUTS WHICH REQUIRE TIGHTENING WITH A WRENCH AFETR BE
ING STARTED BY HAND.

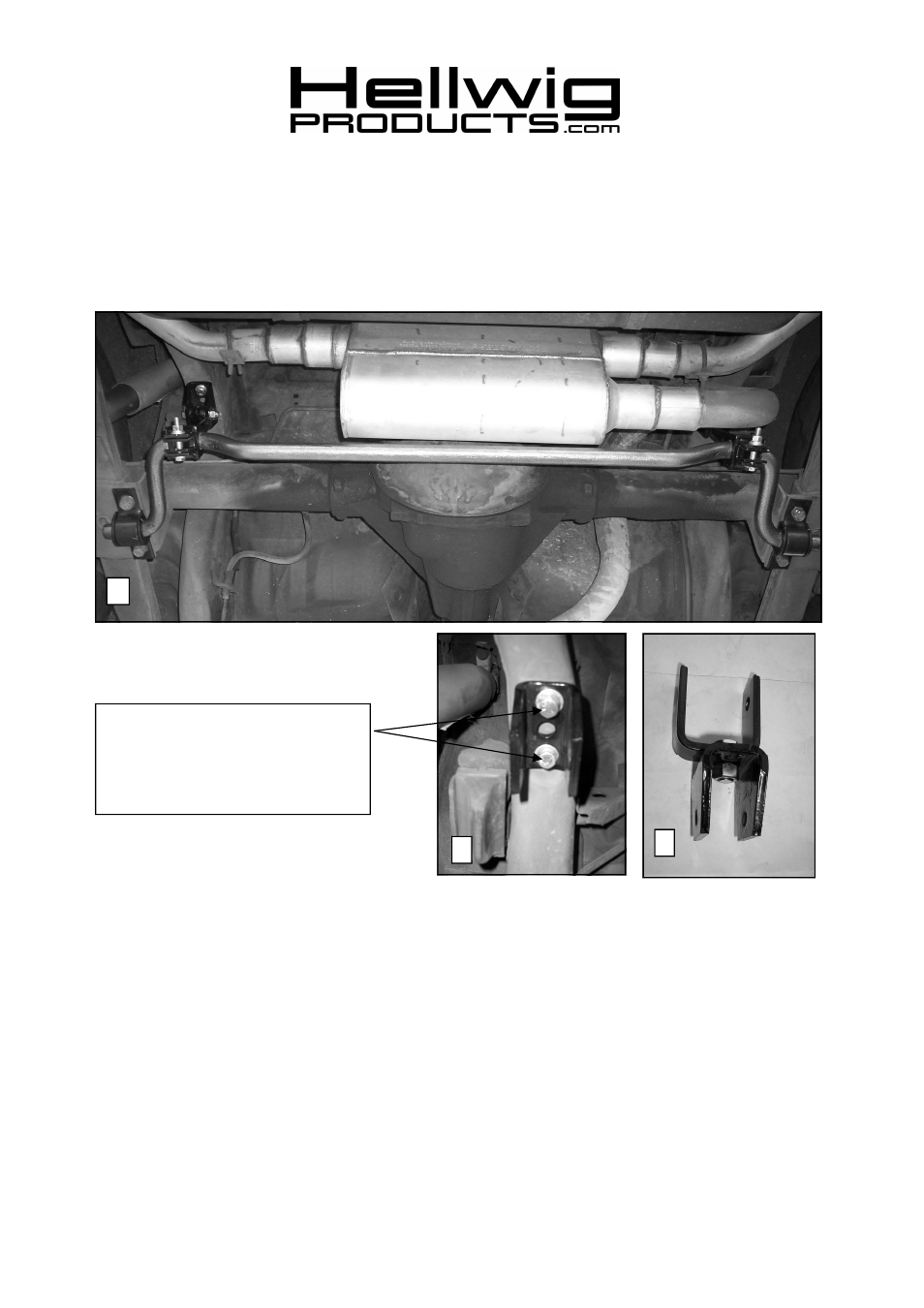

If equipped with factory sway
bar, locate holes in frame to
mount frame bracket using
supplied 3/8-16 X 1” bolts.
1
2
559-734-7451 800-367-5480 FAX 559-734-7460
3
