Operat or’s manual, Gaslink™ emissions anal yzer, Safety precautions

SAFETY PRECAUTIONS

—Read All Instructions Before Using The Meter—

•

Always wear eye protection when testing vehicles. Be extra careful near

batteries and moving parts. Do not lay tools on a battery.

•

Battery gas is highly explosive.

If a battery explodes flush the acid away from persons skin with

generous amounts of water. Follow up with a neutralizing solution of

baking soda and then more water.

Treat clothing, vehicle parts, and equipment similarly

. Any acid traces

inside equipment must be removed by generous rinsing. Dry

equipment and place in a warm 50

C (120

F) oven until thoroughly

dry.

Never use a wrench on the ungrounded battery terminal until the

grounded one has been disconnected. Contact between the vehicle

body metal and the hot terminal can cause sparks to ignite gas or

even weld tools into a battery short circuit.

Keep the space around a battery well ventilated.

Do not make sparks or allow flames near batteries.

•

Before working on a vehicle set the brakes and block the wheels. Beware

of automatic parking brake releases.

•

Keep your work area well ventilated and free of exhaust. Engine exhaust

contains deadly poisons.

Treat Gas Detector exhaust and drain hoses

the same as the vehicle tailpipe. Both give off deadly exhaust fumes.

•

Avoid electrical shocks caused by getting close to live ignition wires or

touching the coil T

ACH terminal. A

person’s reaction near a live engine

can be more damaging than the shock.

•

Keep spark producing devices at least 0.5m (18”) above the floor to reduce

the hazard of igniting gasoline vapor.

•

Do not let test leads wind up in a moving fan or pulley. Route leads away

•

Remove finger rings and metal wrist bands. They can short terminals and

become very hot from electric current.

TECHNICAL SUPPORT & SERVICE

WARRANTY

Questions or inquiries about service can be answered by contacting Ferret at:
(231) 627-5664, Fax: (231) 627-2727, Toll Free (800) 627-5655. When sending an
item to the factory address it to:
Ferret Instruments, Inc., 1310 Higgins Dr., Cheboygan, MI 49721-1061
Include a note describing the problem.

FERRET BRAND LIMITED PRODUCT WARRANTY

FERRET INSTRUMENTS, INC. of Cheboygan Michigan, warrants to the original pur-
chaser that FERRET brand products are free from defects in materials and work-
manship for a period of three years from date of purchase. Our sole obligation for a
product within the above warranties will be to repair or replace, at our option, any
defective parts and return the product to the sender within the U.S.A., shipping pre-
paid, if it is sent to our Repair Department shipping prepaid and accompanied by
proof of purchase.

The above warranty is extended for the flashtubes in timing lights which are within
five years of the date of manufacture.

EXTENDED SERVICE POLICY

A FERRET brand product less than five years old according to the date of manufac-
ture, and which is returned with transportation charges prepaid to: Ferret Instru-
ments, Inc., Repair Department, 1310 Higgins Drive, Cheboygan, MI 49721, will be
repaired or replaced, at factory option, for a service charge not to exceed 40% of the
latest factory suggested user price; plus return transportation charges and insur-
ance. If the product has been discontinued, the nearest equivalent product may be
substituted.

This Warranty and Extended Service Policy do not apply to products which have
been altered outside the factory; or repaired by anyone other than the factory or its
authorized service centers; or which have been damaged from accidents, negligence,
or abuse; or have been used differently than described in the printed instructions.
Please note that wear and tear on leads and replacement of consumable items, such
as NOX and O2 Sensors, is not covered by warranty.

Ferret Instruments, Inc.'s sole liability and buyer's exclusive remedy is limited to re-
pair or replacement of the product as stated in the Limited Product Warranty and the
Extended Service Policy. THERE ARE NO OTHER WARRANTIES EXPRESSED
OR IMPLIED INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE AND FERRET INSTRUMENTS, INC. SHALL NOT BE LI-
ABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE
SALE OR USE OF THE PRODUCT.

Some states do not allow limitations on the length of implied warranties nor exclusion
or limitations of incidental or consequential damages, so that the above limitations
and/or exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other rights
which may vary from state to state.

E014-01

OPERAT

OR’S MANUAL

GasLink™

Emissions Anal

yzer

SPECIFICATIONS

Measurement Ranges

Hydrocarbons (HC) ....................................................................... 0 to 5,000 ppm
Carbon Monoxide (CO) ...................................................................... 0 to 10.00%
Carbon Dioxide (CO2) Calculated ........................................................ 0 to 20.0%
Oxygen ................................................................................................. 0 to 21.0%
Nitric Oxide (NOx) ......................................................................... 0 to 4,000 ppm
Lambda ................................................................................................ 0 to 10.00
AFR ......................................................................................................... 0 to 99.9
Tachometer .............................................................................. 100 to 5,000 RPM
Temperature ........................................................................................ 0

to 300

Warmup Time - Diagnostic Mode ........................................................... 3 Minutes
Warmup Time - Full Stability ................................................................ 15 Minutes

Physical Dimensions

Operating Temp .................................. 2

to 54

C ............................ 35

to 120

Storage Temp ................................. -29

to 54

C ........................... -20

to 130

Case Size ........................................ 28x33x9 cm ............................ 11x13x3.5 in.
Lead Length .............................................. 1.5 m ....................................... 8 Feet
Weight ...................................................... 4.5 kg ................................ 10 Pounds
Power Requirements .......................................................... 12 Volt Vehicle Battery

............................................................................................ Optional A/C Adapter

Exh. Probe Flex Extension .... H014-74
Upper & Lower Filter ............. H020-57
Calibration Gas ..................... H020-70
NOx Sensor .......................... M022-52
O2 Sensor ............................ M022-50
Extension Lead .................... W000-03
Power Lead .......................... W004-02

REPLACEMENT PARTS & ACCESSORIES

Cigarette Lighter Adapter ..... W014-30
Temperature Probe .............. W022-21
Spark Pickup ......................... X008-01
In-line Filter ........................... X014-13
AC Power Adapter ................. X014-20
ComLink I/R ....................... Ferret 114
PC Software .................. Ferret 114PC

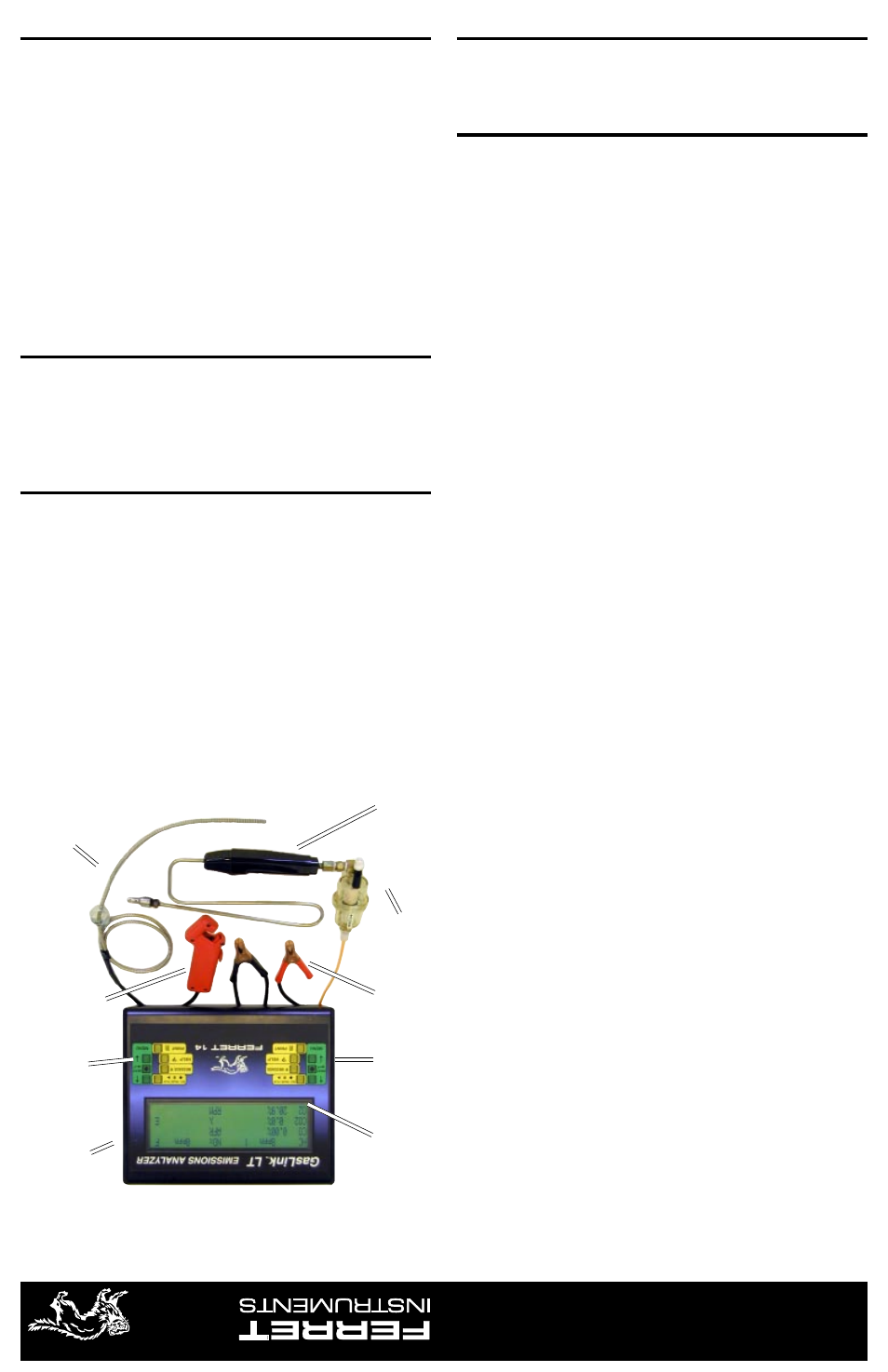

Backlit

Display

IR Por

Sample Hose

Assembly

wer Leads

RPM Pickup

Control

Buttons

Control

Buttons

Water

Separator

mperature

Probe

ADDITIONAL INSTRUCTIONS

Please see the enclosed CD for a complete operators manual, and video on CD
training. A hard copy of the instruction manual is available for downloaded from www.
ferretinstruments.com
