34

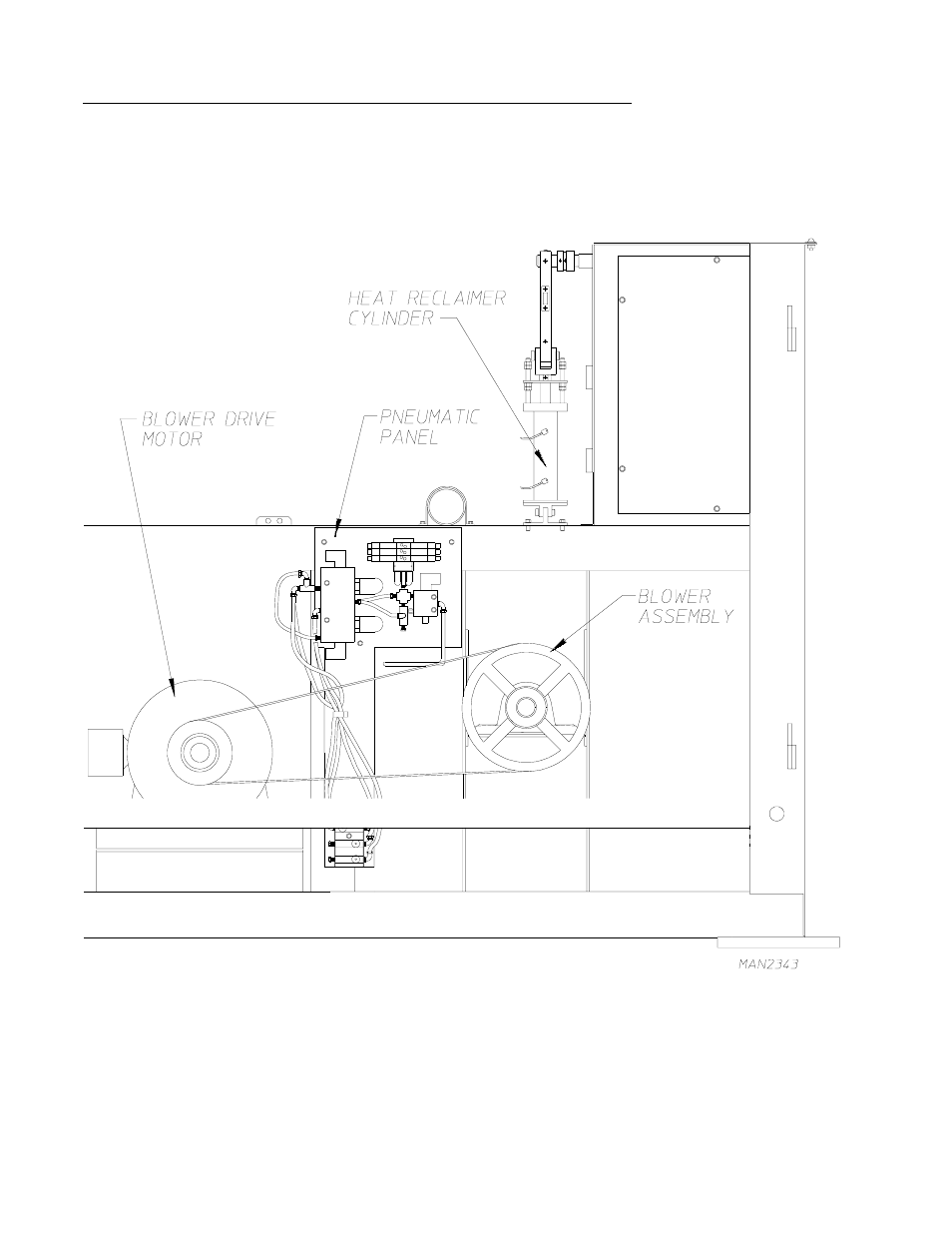

B. MAIN AIR BLOWER and HEAT RECLAIMER SYSTEM

The fan which moves the exhaust air through the ML-460 dryer is a 22-inch (56 cm) diameter, squirrel cage

wheel that is driven at 1,100 rpm by a 25 HP (18.64 kw) motor. This fan moves a maximum of 13,000 cfm (368

cmm) air through the dryer.
