18

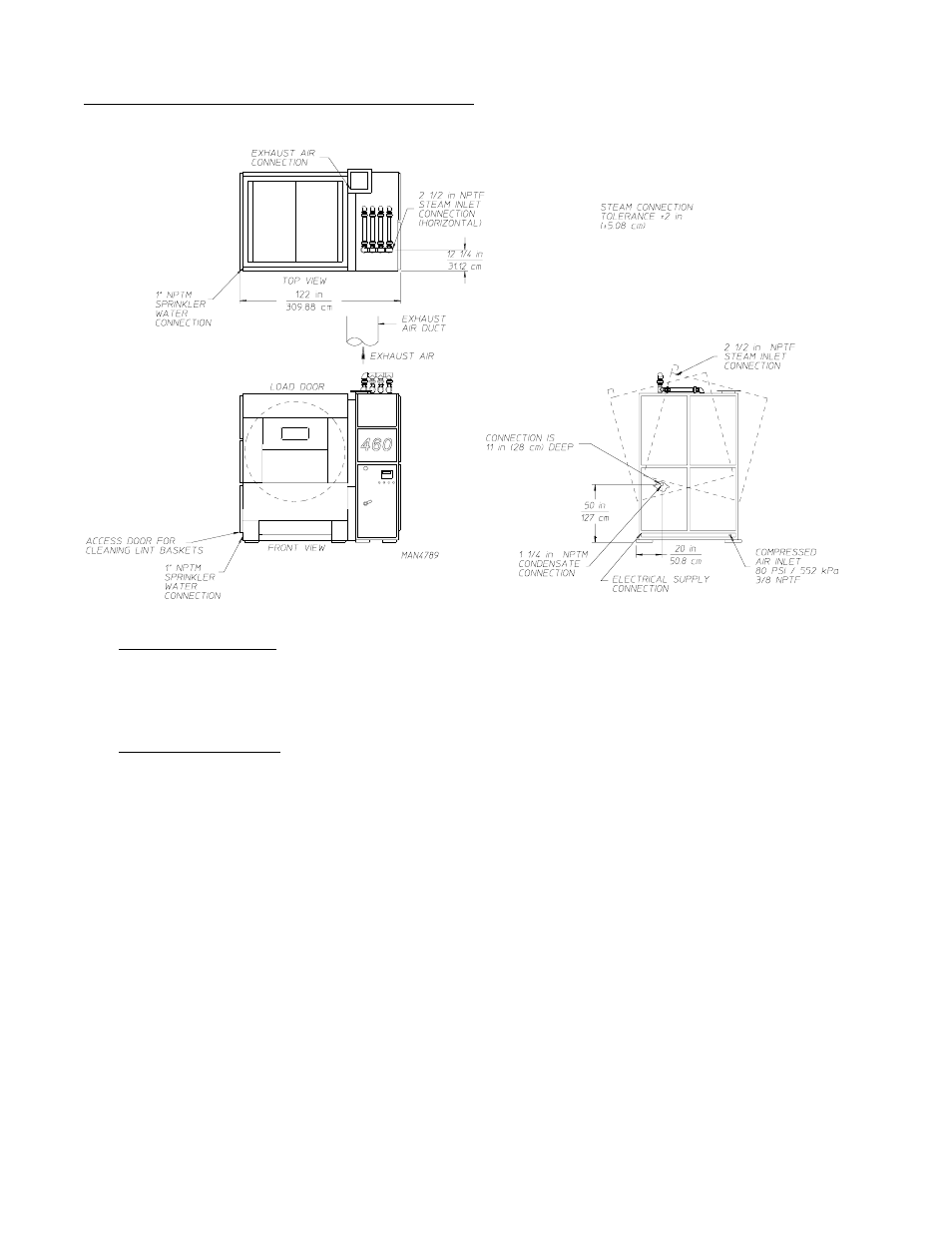

D. EXTERNAL SUPPLY CONNECTIONS
1. Sprinkler Water Supply
A 40 PSI (276 kPa) supply of water must be connected into the 1” N.P.T. sprinkler connection located on
the left side of the tumbler (basket) base.
2. Compressed Air Supply
A minimum of 20 cfh (cubic feet per hour) - 0.57 cmh - at 80 PSI (552 kPa) of dry, clean, and regulated
compressed air must be supplied to the dryer.
The compressed air supply must be connected into the 3/8” F.P.T. fitting which is located in the rear corner
of the lower heat console section.
