Ariens Sno-Thro ST8526LE - Manual (Page 4)

4
E
NGINE AND
B
ELT
D
RIVE

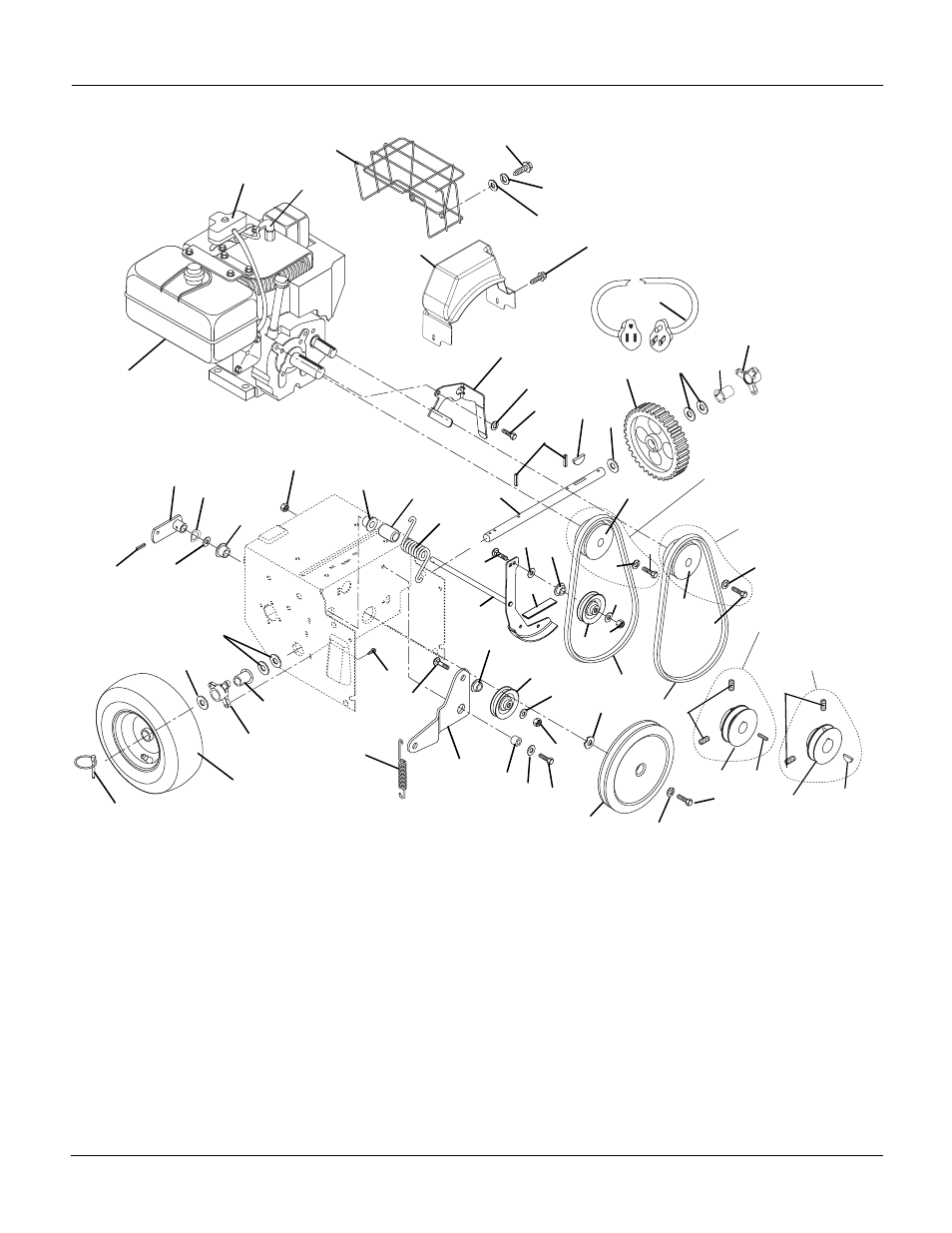

Model 932105, 506
Item Part No. Qty. Description
1 07100024 2 Wheel 5.00 x 6.00
07155900 2 Tire 15 x 5.00-6
07100016 2 Tire/Wheel Assembly15 x 5.00-6
07156400 2 Tube 15 x 5.00-6
2 00272300 1 Pulley, 3L w/hub, .625 x 6.5"
3 08200021 1 Engine, 8.5HP Tecumseh LH318SA 120V (105 SN 3810 and up)
08260004 1 Engine, 8.5HP Tecumseh LH 120V (105 SN 101-3809)
08200020 1 Engine, 8.5HP Tecumseh LH318SA (506 SN 101 and up)
4 05947000 1 Bolt, Hex .31-18 x .75 Grade 5
5 06435700 1 Washer, Flat Steel .38 x .88 x .083
6 01035800 1 Spacer Bushing
