Ariens Sno-Thro ST8526LE - Manual (Page 11)

11
A
UGER AND
C
HUTE

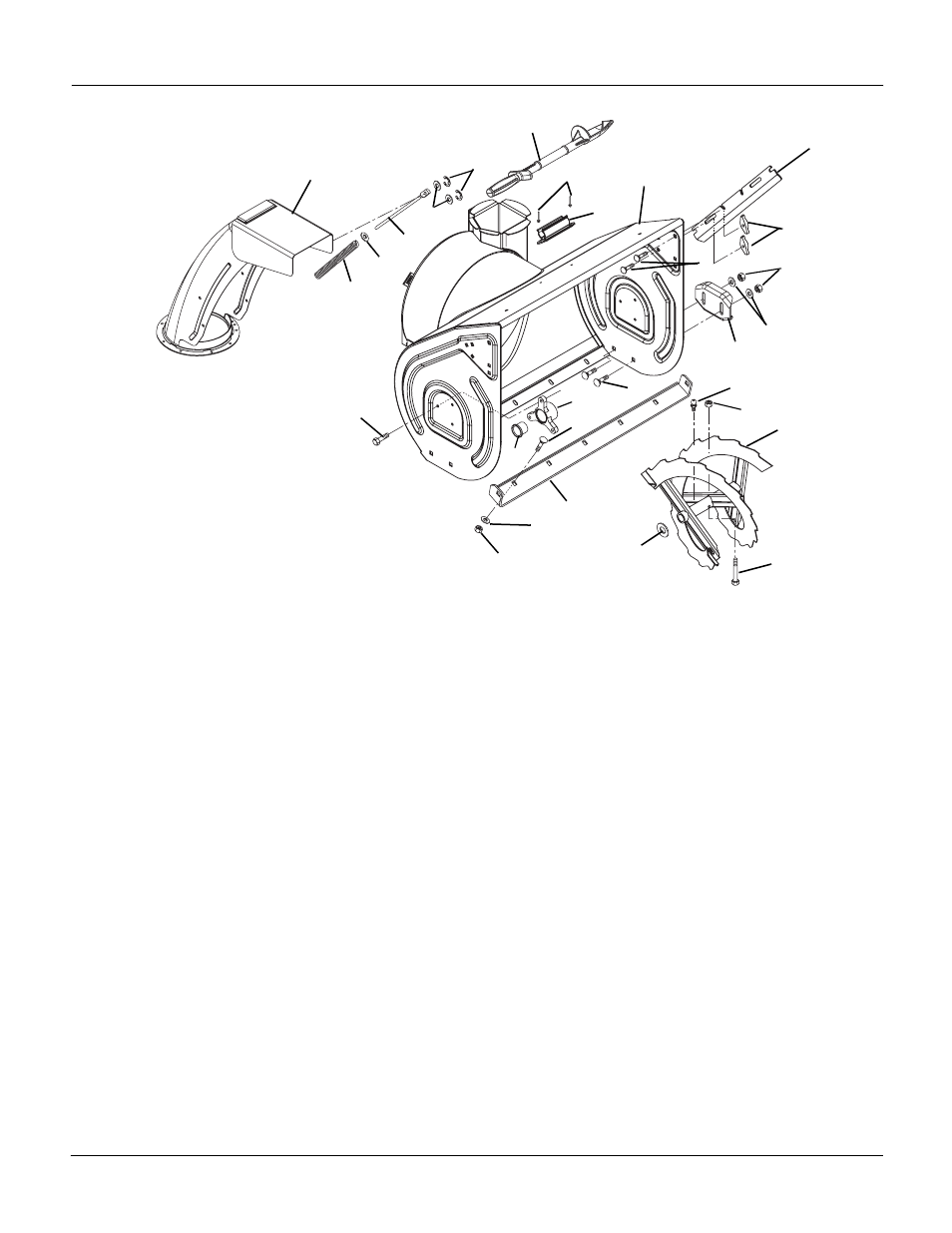

Model 932105, 506
Item Part No. Qty. Description
1 06435900 4 Washer, Flat Steel .44 x 1.00 x .083
2 53213500 1 Housing, 26" w/Decal
3 02483859 2 Runner, Double Flange
4 06529600 4 Nut, Locking Center .38-16
5 06435700 5 Washer, Flat Steel .38 x .88 x .083
6 00268659 1 Blade, Scraper 26"
7 06529800 7 Nut, Locking Center .31-18
8 07012600 4 Fitting, Lube .25-28 x .26
9 52421100 1 Rake, Left Hand - 26" (1” I.D. x 15.75" O.D.) (Includes Item 8)
52421200 1 Rake, Right Hand- 26" (1” I.D. x 15.75" O.D.) (Includes Item 8)
10 51001500 2 Shear Bolt Service Assembly (Includes Item 7)
11 06212000 4 Bolt, Round Head Square Neck .38-16 x 1.00
12 06220800 9 Bolt, Round Head Square Neck .31-18 x .75
13 06436300 2 Washer, Flat Steel 1.01 x 1.51 x .062
14 52420400 1 Chute, Discharge w/Remote
15 00170300 1 Mount, Snow Cleanout
16 06813600 2 Rivit, Pop .187 x .45 Dome
17 00170200 1 Device, Snow Cleanout
18 00262159 2 Cutter, Drift
19 07531700 4 Knob - Wing .31-18
20 00275100 2 Bushing, Rake Shaft 1”
21 05500011 2 Bushing, Flange Split Nyliner 1.0” I.D.
22 07412000 6 Screw, Tapping .25-20 x .50
23 02479800 1 Rod, Chute
24 06437200 1 Washer, Flat Steel .344 x .688 x .065
25 08335200 1 Spring, Compression
26 06437300 2 Washer, Flat Steel .281 x .62 x .065
27 05718500 2 Retaining Ring External .218 x .035
