Ariens Sno-Thro ST8526LE - Manual (Page 12)

12

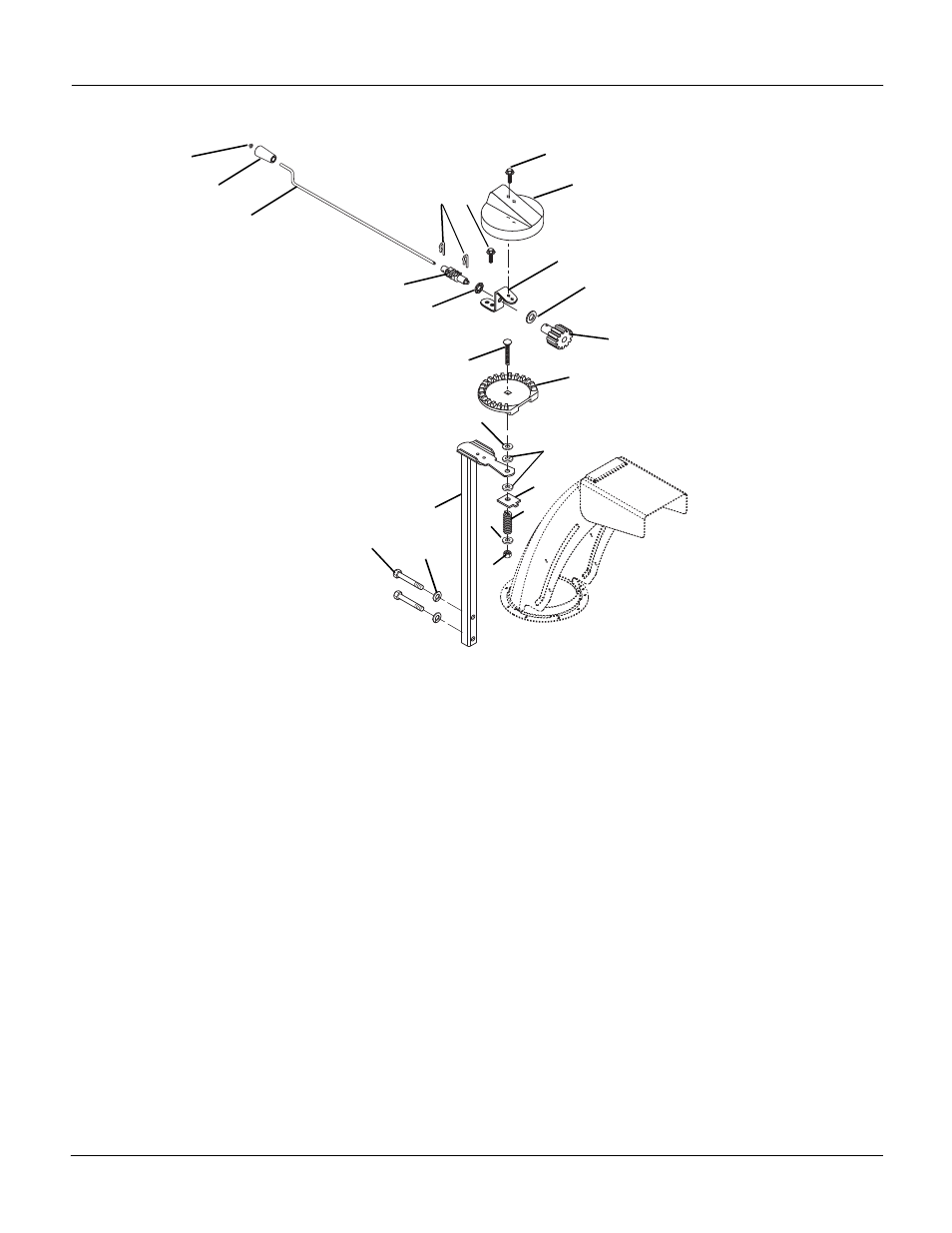

D
ISCHARGE
C
HUTE
C
RANK
Model 932105, 506
Item Part No. Qty. Description
1 01019800 1 Cap, 3/8 Rod
2 07500001 1 Knob, Chute Crank
3 00184600 1 Crank, Chute
4 07412000 4 Screw .25-20 x .50 Hex Washer Head Self Tapping
5 03223000 1 Cover, Gear
6 06714500 2 Pin, Spring Clip
7 03222900 1 Gear, Chute
8 06224400 1 Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5
9 53204400 1 Pinion Gear with Bracket (Contains Items10-12)
10 06436100 1 Washer, Flat Steel .63 x 1.01 x .062
11 03220551 1 Bracket, Gear
12 03224300 1 Push Nut
13 06439300 1 Washer, Flat Steel .38 x 1.50 x .062
14 01123800 2 Friction Washer
15 00256751 1 Pedestal, Chute Support
16 03219000 1 Friction Plate
17 08320900 1 Spring, Compression .19 x .56 x 1.62
18 06436200 1 Washer, Flat Steel .41 x .81 x .065
19 06529600 1 Nut, Locking Center .38-16
20 02495900 1 Universal Joint
21 05958500 2 Bolt, Hex .38-16 x 1.75
22 06308800 2 Washer, Locking .38 x .094
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
20
PS1061
4
1
2
3
