504524 15

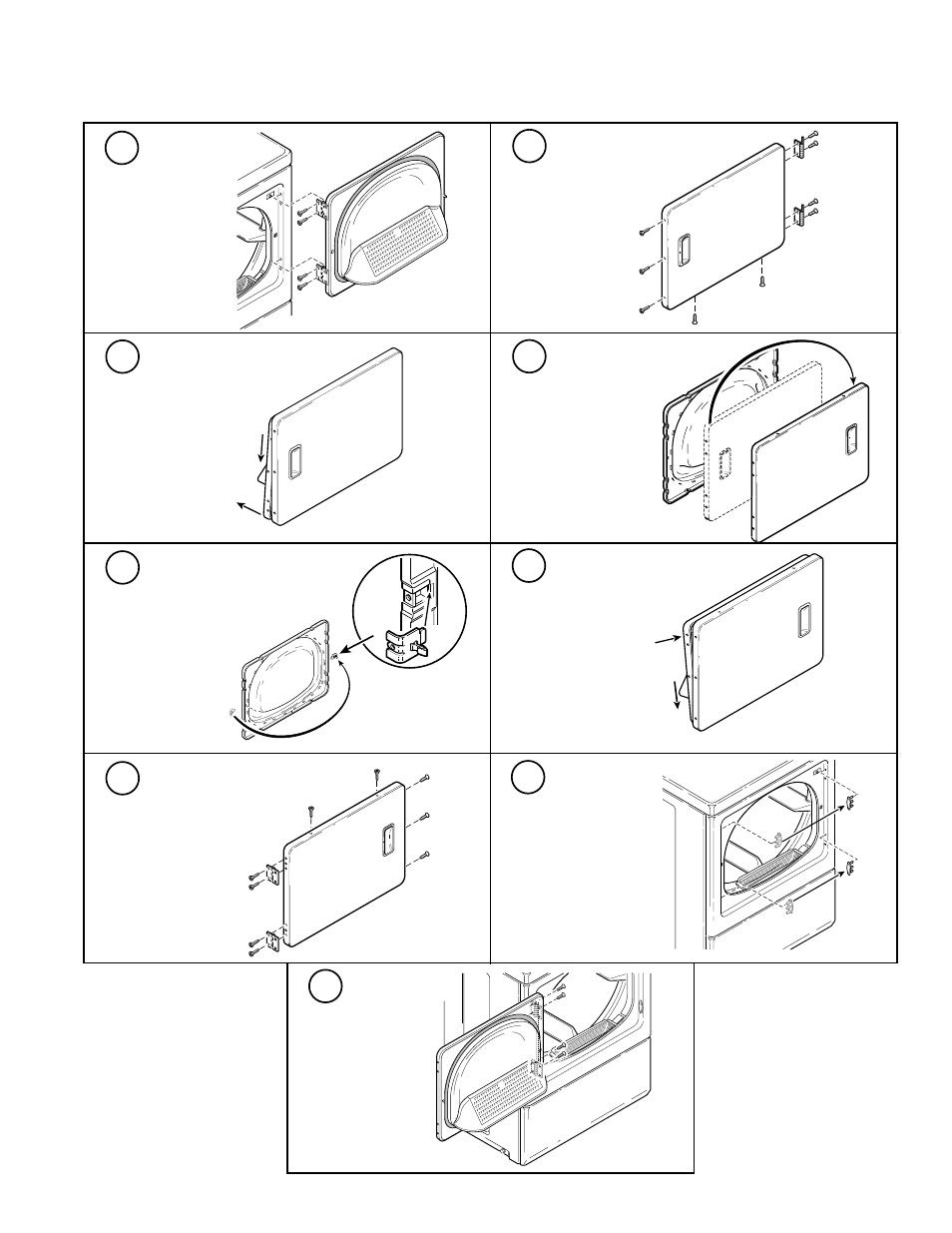

Reversing Door Procedure . . .
The door on this dryer is completely reversible. To reverse door proceed as follows:
Remove four
hinge attaching
screws.
D347IE1A
1 2
D348IE1C
Remove all
nine screws.
D268PE1C
Pull bottom of
door liner out,
then pull down,
removing door
liner from door
panel.
B
A
3
D273PE1B
4
Rotate door panel
180 degrees
as shown.
D276PE1B
5
Remove door strike
from door liner
and reinstall on
opposite side.
D269PE1D
6
Insert liner under
flange on bottom of
door, then push
top of door
liner into place.
B
A
D270PE1B
7
Reinstall nine screws
removed in Step 2.
8
D345IE1B
Using a screwdriver,
remove two door
plugs, and reinstall
on opposite side
of door opening.
D346IE1A
9
Reinstall four
hinge attaching
screws removed
in Step 1.
