BJM Pumps KZN (R) SERIES HEAVY DUTY AGITATOR TOP DISCHARGE Electric Submersible Pumps - Manual (Page 10)

10

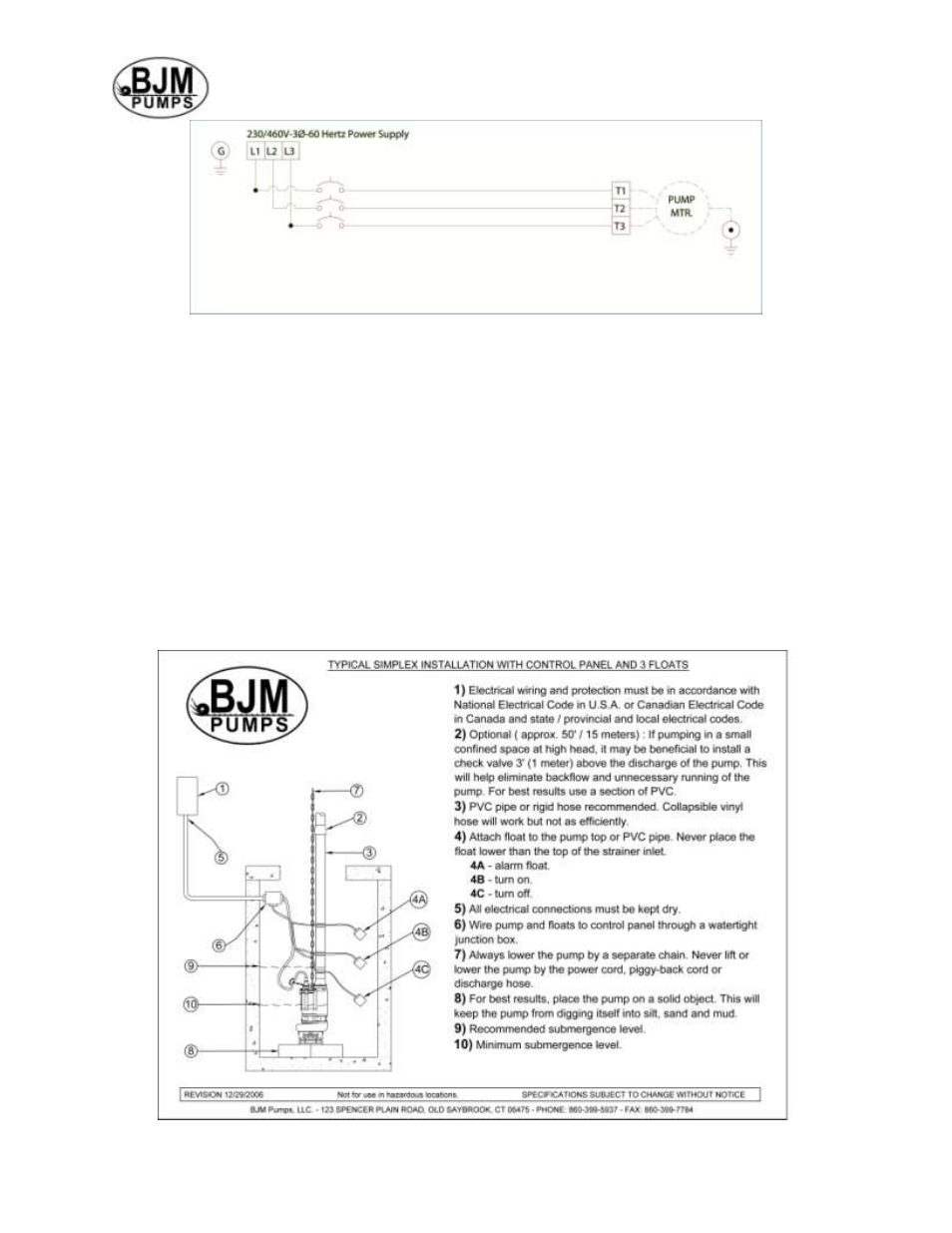

Typical 3 phase manual control 1
TYPICAL AUTOMATIC DEWATERING INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
Float switches (wired into the pump motor or piggy-back style) are available from the
factory as an option.
Note: 208V, 230V, 460V & 575V pumps do not have a plug installed.
Three phase pumps need a separate control box with float(s) for automatic
operation.
