DS-4/DS-10 DISPLAY

Display Status Messages
The following messages are used to display the state of the DS-4 or DS-10 during normal operation. More information on display status
messages can be found in the Vocia Help File.

1. Destination Idle: This status message indicates that the paging station is ready and there are no busy zones among the destinations

selected by the Page Code.

2. No Network: This status message indicates that the DS-4 or DS-10 is not connected to a functioning network. Please check network

connections and settings.

3. Destination Busy: This status message signifies that at least one of the destination zones is busy with a lower priority page.

When paging into a busy zone, the lower priority message will be lost.

4. Destination Delay: This status message indicates that at least one of the destination zones is busy with a page of equal priority.

When paging into a busy zone at an equal priority, the message will be recorded in the DS-4 or DS-10 locally and played when the
busy zones become available.

5. Not Available: This status message indicates that the selected Page Code is not available. The message “Code Barred” or “Undefined”

will appear in the top left corner of the display. Please choose a different Page Code or assign the selected Page Code to the desk station.

6. Please Wait: This status message signifies that the PTT button has been pressed and the system is assigning paging resources

and playing the chime. Simultaneously, the amber LED below the “Wait” icon will illuminate.

7. Request Failed: This indicates that the PTT button has been pressed and the request has failed. If a recorded message is associated

with this Page Code, please check that an MS-1 is online and configured to play the announcement.

8. Please Talk Now: This status message indicates that the PTT button has been pressed, the page has been correctly set up in the

system, any assigned chime has finished playing, and the audio path is open. This status message corresponds with the green
LED illuminated below the “Please Talk Now” icon.

9. Request Queued: This status message reports that the selected Page Code represents a request to play a recorded announce-

ment. When the zone(s) are ready to receive the announcement, the message will be played and the DS-4 or DS-10 will return to
the Destination Idle state.

10. Cancel Request?: This status message indicates that the selected Page Code is a Delayed Release page. Once the PTT button

is released, the “Cancel” prompt will flash on the display. The “Cancel Request?” message is displayed for five seconds. If the user
presses the Cancel button within this five-second period, the recorded page will be discarded and the system will return to idle
status. If five seconds elapses and the user does not press the Cancel button, the message will be released for playback as soon as
all destination zones are available.

11. Page Will End in “x” Secs: This status message is displayed when a page termination is imminent (either due to lack of memory or

a timeout). The “x” signifies a value in seconds.

Device Information

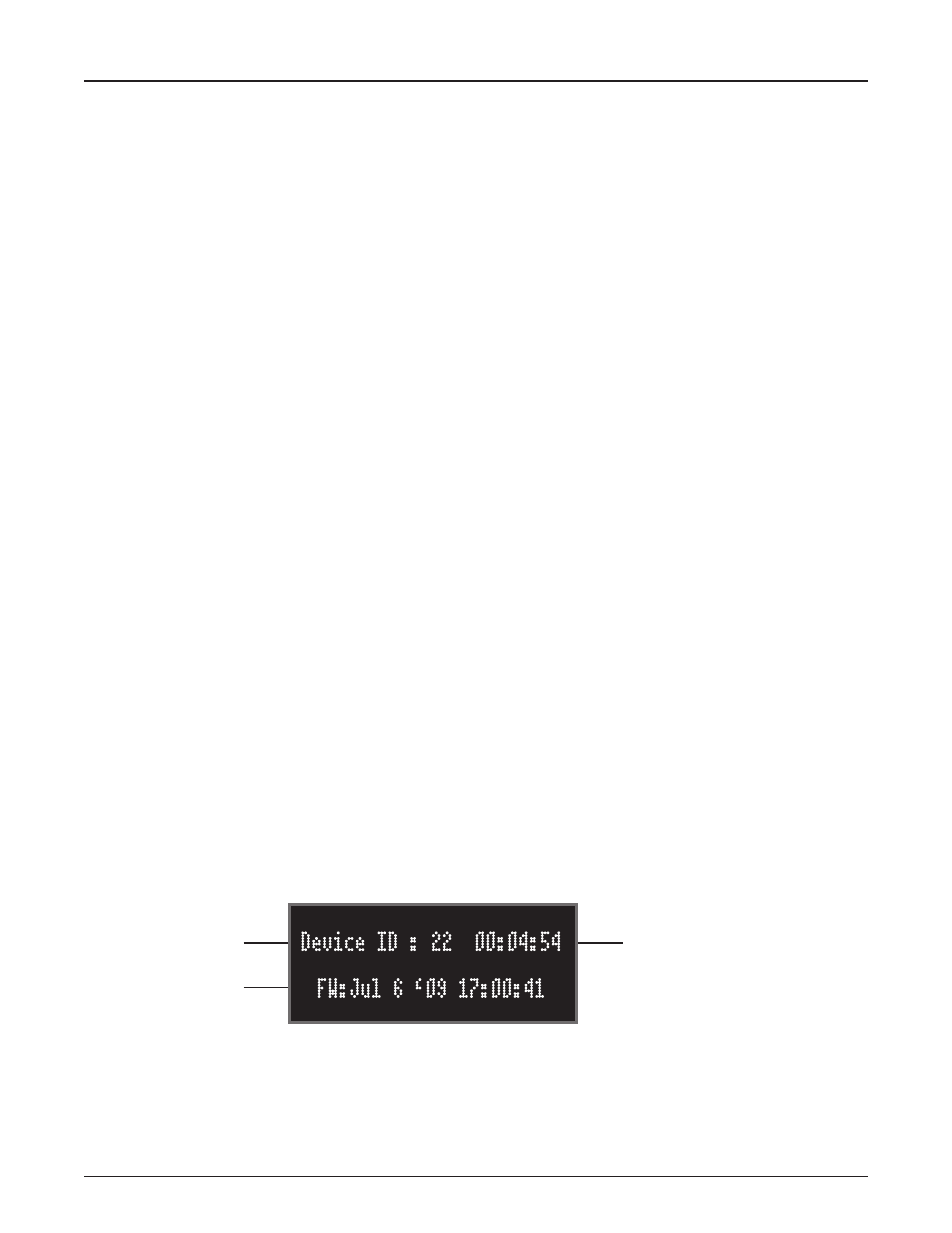

To access the device information, such as Device ID, the system time, and the time and date of the last firmware update, please press
and hold down any combination of three of the ten Page Code buttons.

Device ID

System Time

Time/date of last

Firmware update
