VOCIA DESK STATION 4/10 (DS-4/DS-10)
The Vocia
®
Desk Stations 4/10 (DS-4/DS-10) are digital networked paging devices. Both the DS-4 and the DS-10 feature embedded DSP
processing and on-board memory to support standard and advanced public address and mass notification functionalities. The DS-4 can
store four user-configurable Page Codes; and the DS-10 can store 999 user-configurable Page Codes. Additionally, all device-specific
configuration information is stored locally, which means the Desk Stations do not rely on a centralized controller for processing and page
routing. Thus, the processing, routing and storage functionality in a Vocia system is decentralized and spread across multiple networked
devices. This eliminates the single point of failure and builds redundancy directly into the network. As part of the Vocia network, the DS-4
and DS-10 are a perfect fit for paging requirements in facilities of all sizes.
Features
• Push-to-Talk button with status indication
• Four user-configurable Page Codes (DS-4)
• Up to 999 user-configurable Page Codes (DS-10)
• Four priority levels
• Local digital signal processing, including gain, filters, and compressor/limiter
• Local storage of configuration data
• Local storage of default and/or custom preambles
• Built-in store and forward functionality
• CobraNet
®
audio/control, plus power on single cable.
• Backlit liquid crystal display (LCD) technology
• Optional PIN to restrict unauthorized use
• Option port provides power, line-level audio, and bi-directional RS232 for transmitting VTP commands;
• Option Port designed to connect to a 3rd party control interface and access all standard paging control functionalities
such as triggering page codes and selecting destinations on-the-fly
• High-quality gooseneck cardioid microphone
• Sturdy component housing
• Rotary ID switches for unit identification
• CE marked and RoHS compliant
• Covered by BIAMP Systems’ warranty

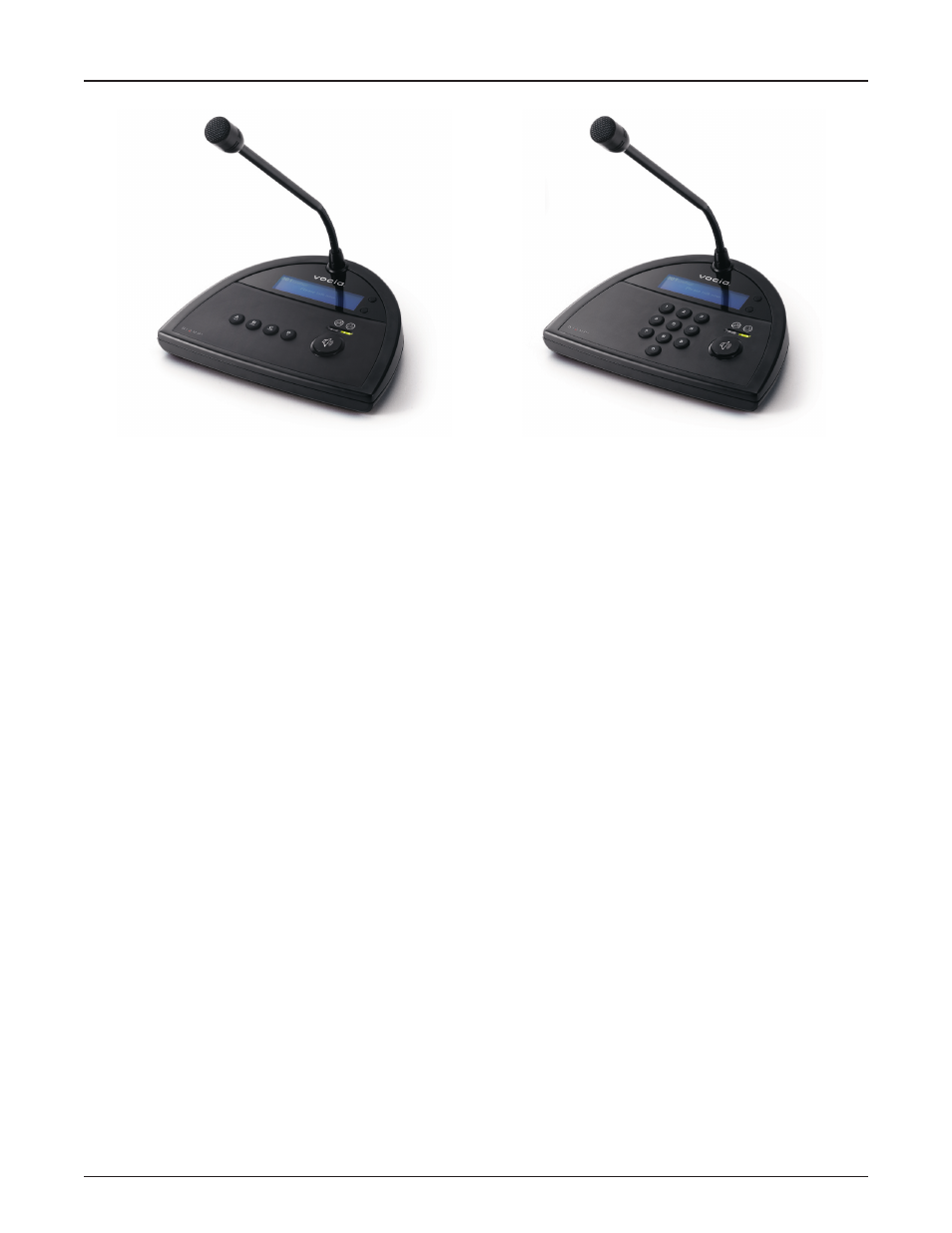

DS-4
DS-10
