Aviom MH10f - Manual (Page 33)

MH0 c
oNFigurAtioNs
M
H
1
0
1
2
3
4
5
6
7
8
9
10
Stage Inputs 1-16
Stage Inputs 17-32
Stage Inputs 33-48
Stage Inputs 49-64
Stage Outputs 1-16
FOH Returns 1-16 Out
FOH Returns 1-16 In
Stage Outputs 17-32
Stage Outputs 33-48
FOH Returns 1-16 Out
Stage Outputs 49-64
Stage Outputs 1-16
Stage Outputs 17-32
Stage Outputs 33-48
Stage Outputs 49-64
Stage Outputs 1-16
Stage Outputs 17-32
Stage Outputs 33-48
Stage Outputs 49-64
STAGE
RECORDING
BROADCAST
FOH
MONITOR
CONSOLE
M
H
1
0
1
2
3
4
5
6
7
8
9
10

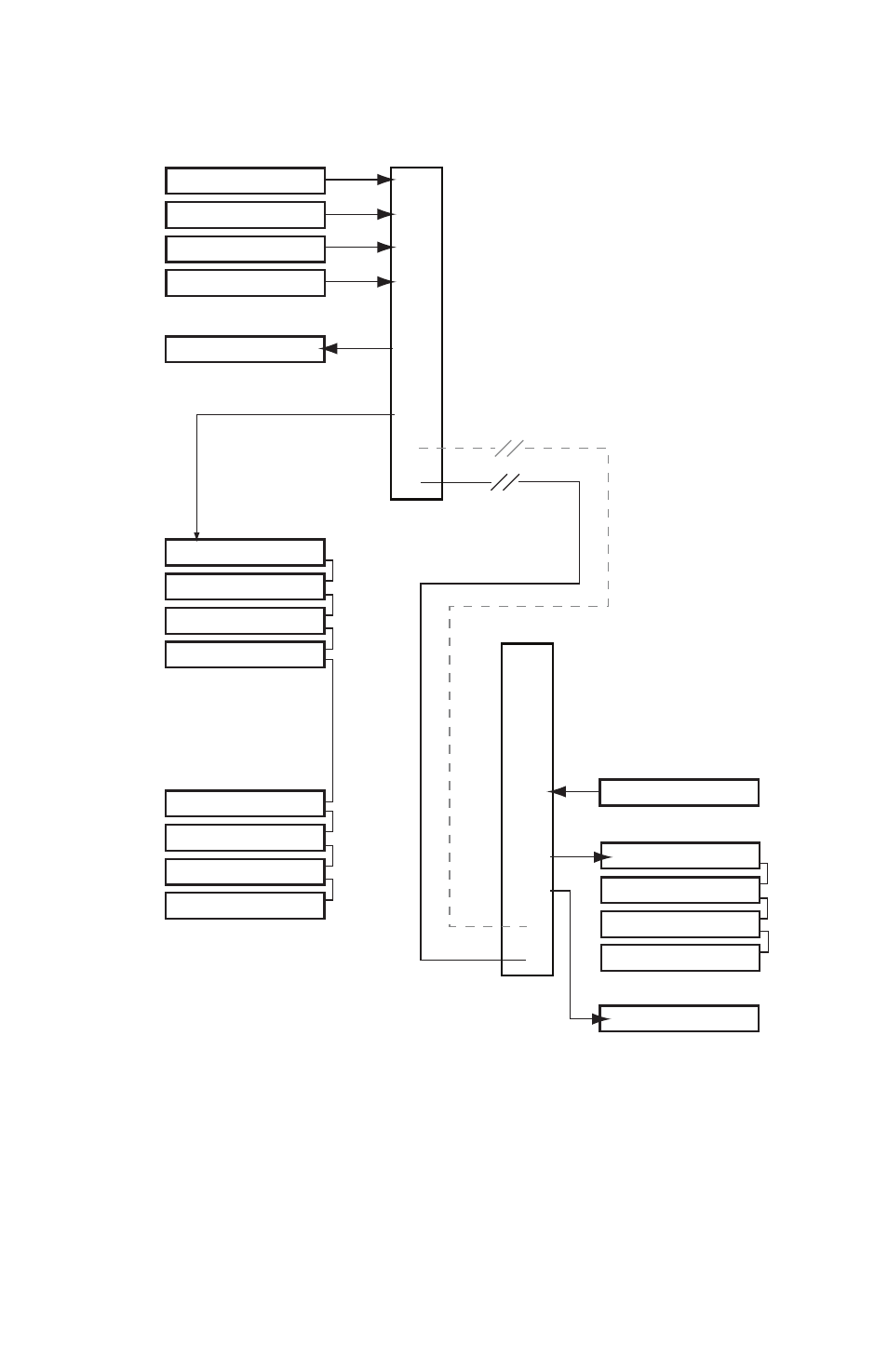

64 inputs on stage feed a monitor console and recording devices. The
front-of-house mix (FOH Returns) is sent to the broadcast area and to
amps and speaker processors on stage.
Ports 1-7 will output audio coming from the front-of-house mixer, either
monitoring content or audio for the speaker systems. Port 8 will output
