Stage foh, Mh 1 0 – Aviom MH10f User Manual
Page 30
MH0 c
oNFigurAtioNs
M
H
1
0
1
2
3
4
5
6
7
8
9
10
Stage Inputs 1-16
Stage Inputs 17-32
Stage Inputs 33-48
Stage Inputs 49-64
Stage Outputs 1-16
FOH Returns 1-16 Out
Pro16
Monitors 1
Pro16
Monitors 2
FOH Returns 1-16 In
Stage Outputs 17-32
Stage Outputs 33-48
Stage Outputs 49-64
ASI
STAGE
FOH
Monitor Sends 17-32
Monitor Sends 33-48
Cat-5e Cable

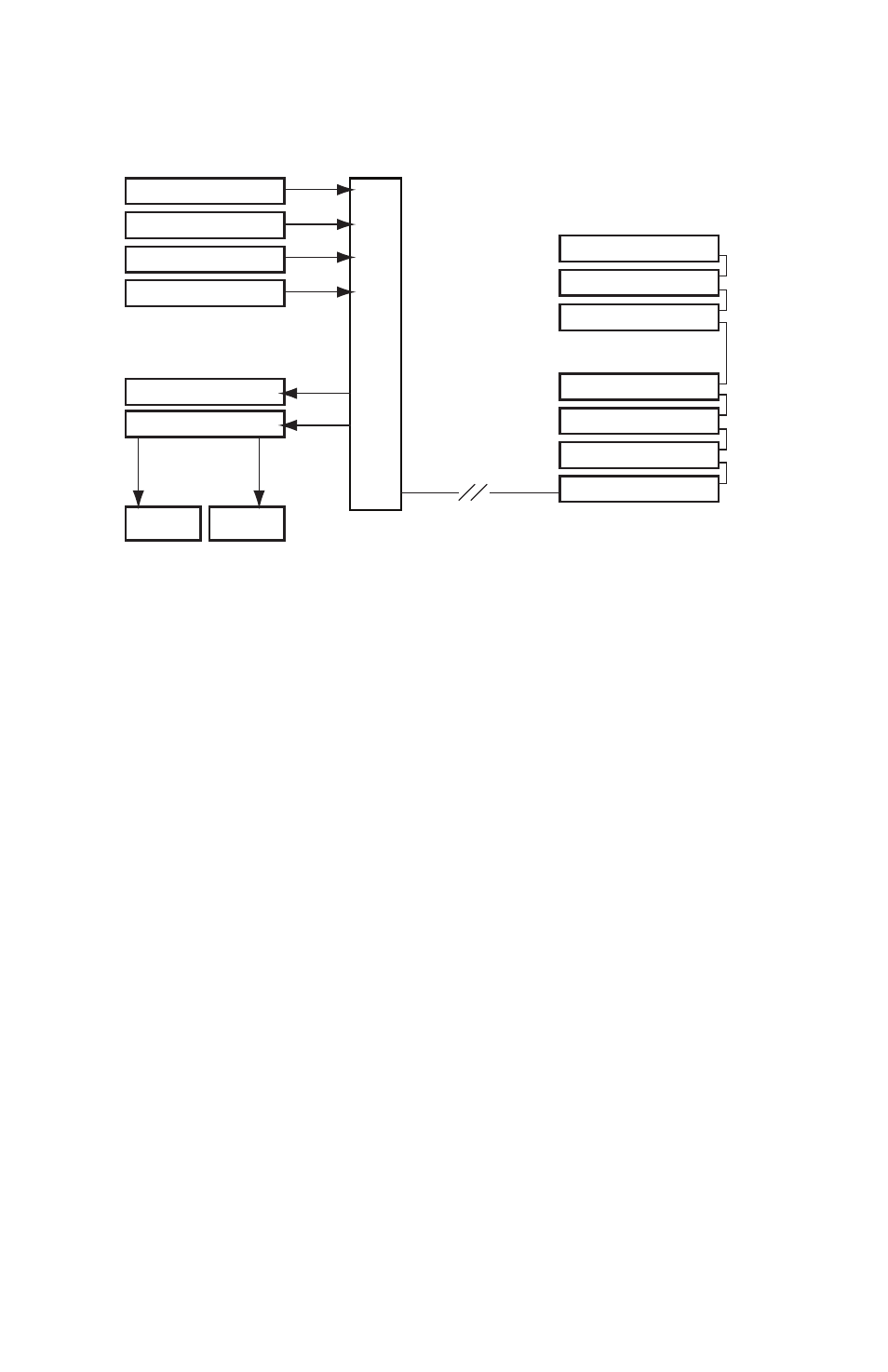

This 64x48 digital snake uses one MH10 Merger Hub. Input and
output modules at the FOH position are connected serially. The
ASI (connected to port 8) translates Pro64 data for use with Pro16
monitoring devices.
Again, any of the ports numbered 1-9 on the MH10 can be connected to
additional Pro64 devices for splits. Remember that any output devices
connected in series to any Pro64 device already connected to the MH10
can also output the content coming from the FOH engineer.
