The MH10f can be powered via its internal power supply or an optional
external 24 volt supply.
Both internal AC and external DC power sources can be connected
simultaneously.
A-Net Ports
Ten EtherCon jacks are provided for A-Net connections on the MH10,
numbered 1 to 10. The MH10f has eight EtherCon jacks. Connections
can use standard RJ45 cables or cables outfitted with the locking
Neutrik EtherCon connector.
In addition to the eight EtherCon jacks, the MH10f has two 100 Mbps
SFP fiber optic ports, which are numbered 9 and 10.
The actual functionality of the ten ports on a Merger Hub is determined
by the current network mode (Auto or Manual) and the setting of the
Manual Mode configuration when using Manual Mode.
In Auto Mode, all ten A-Net ports perform the same function.
Cables from any compatible Pro64 device can be plugged into any
available port. Multiple MH10 or MH10f units can be used simply by
interconnecting them using an available A-Net port. There is no need to
match MH10/MH10f port numbers (port 1 connected to port 1, etc.).

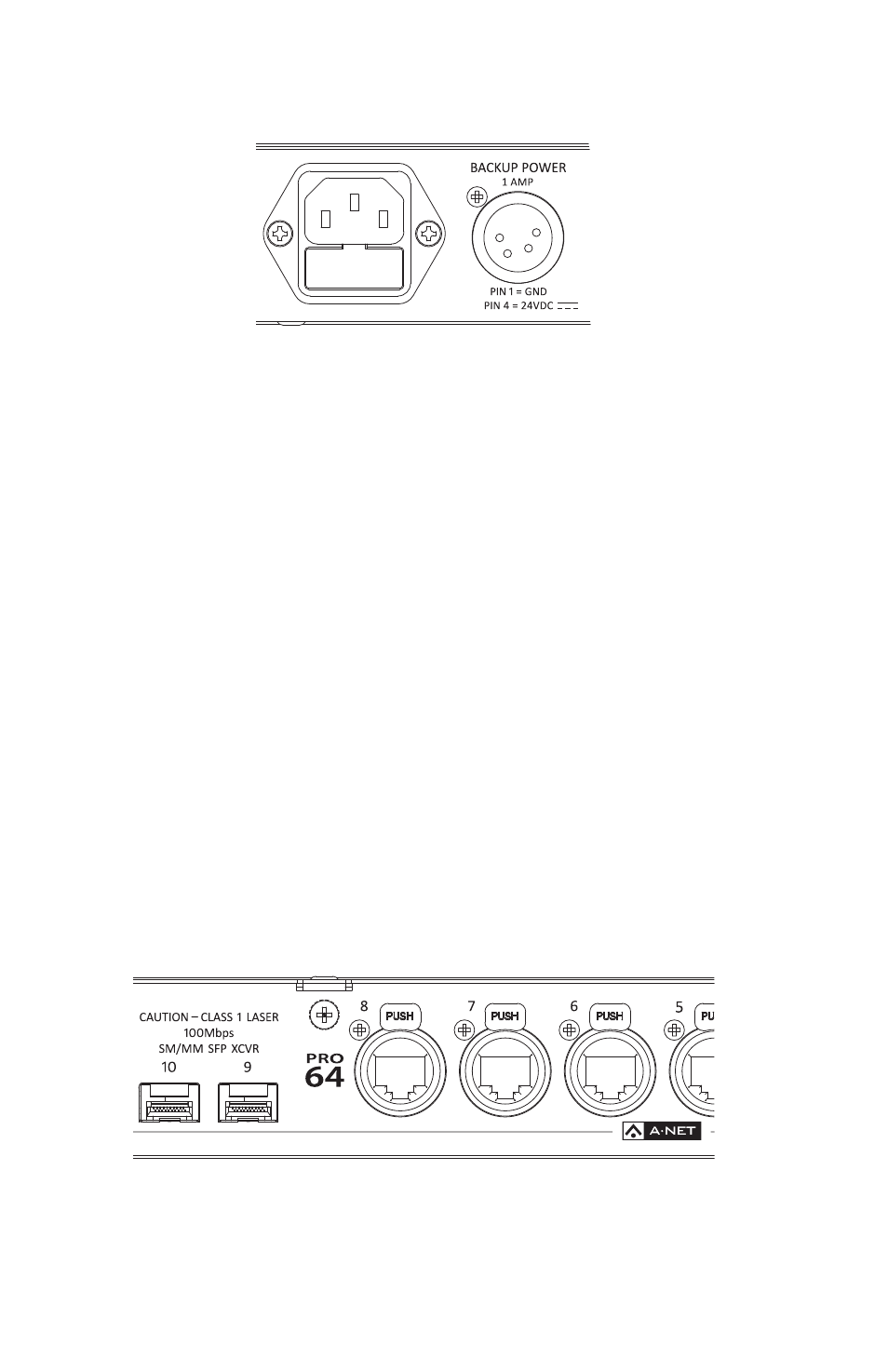

The MH10f (shown) has eight EtherCon and two SFP fiber connectors.
The ten A-Net ports on the MH10 each have EtherCon connectors.
