Operating Instructions
1. If so equipped, reset Meter to “0” (do not
reset while in use as this can cause
damage to the meter).
2. Remove dispensing nozzle from nozzle
boot.
3. Move the switch lever to the “ON”
position to power the pump (figure 5).
4. Insert the dispensing nozzle into the
container to be filled.
5. Operate the nozzle to dispense fluid;
release nozzle when the desired amount
of fluid has been dispensed.
Figure 5
“ON” position
Figure 6
“OFF” position
CAUTION! Always keep the nozzle in contact with the container being filled
during the filling process to minimize the possibility of static electricity build up.
6. Move switch lever to the “OFF”
position (Figure 6) to turn off the
pump.
7. Remove the dispensing nozzle
from the container being filled
and store it in the nozzle boot.
Pad Locking
Your Fill-Rite pump nozzle can be
pad locked to the pump for added
security. With the pump turned off,
and the nozzle in the stored
position, a pad lock can be
inserted through the locking link
and the nozzle handle opening.
This configuration prevents the
nozzle from being removed from
the nozzle cover
.
The locking link is located on the
nozzle side of the pump, and can
be pivoted into position to work
with a variety of nozzles (Figure 7).
Use the appropriate position and
hole to lock your nozzle securely
to your FR3200 series pump.

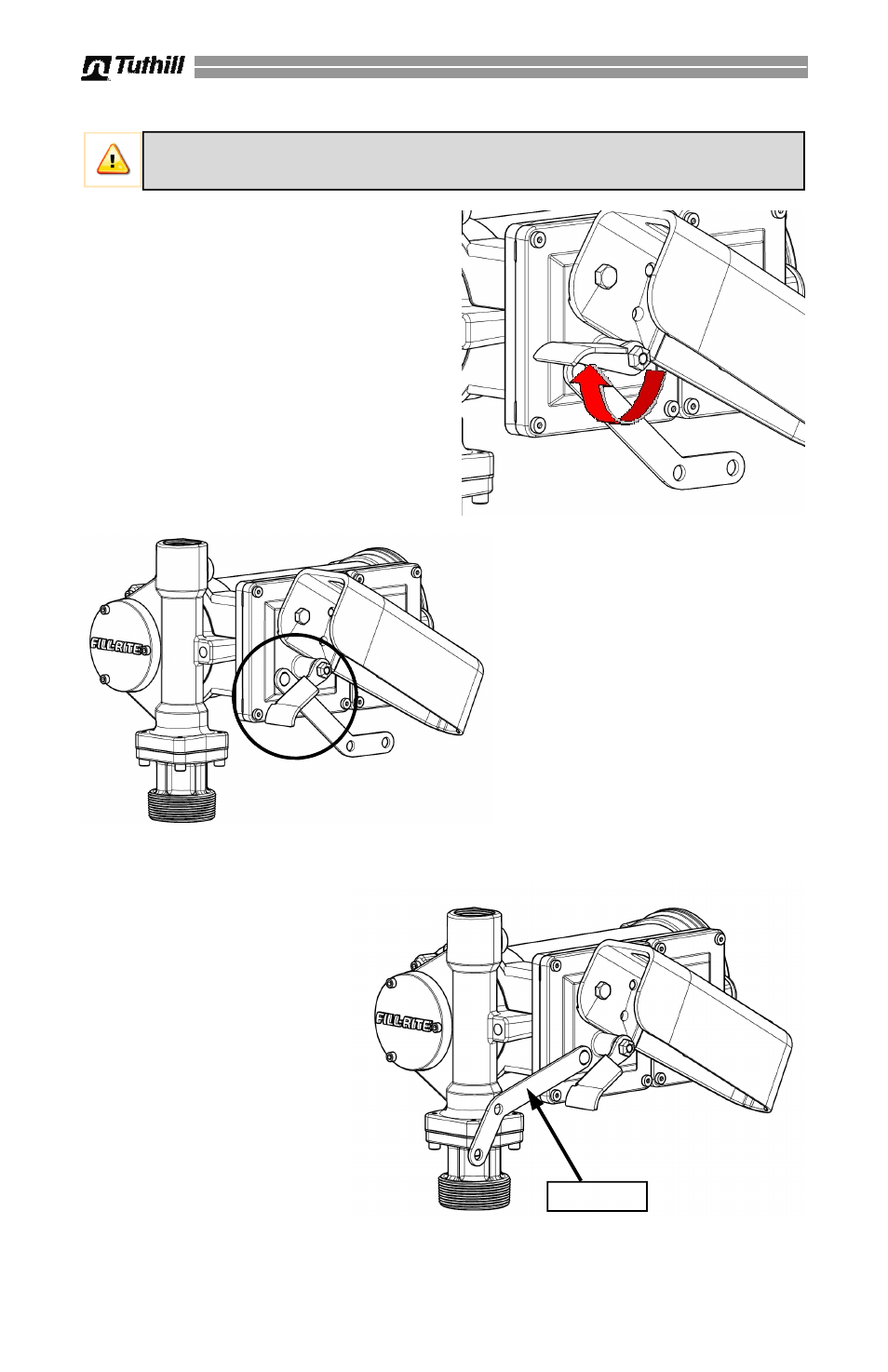

Figure 7
Locking Link
