Fill-Rite BD310 Series Fuel Transfer Pump - Manual (Page 3)

3
ITM. PART
NO. NO. DESCRIPTION QTY.

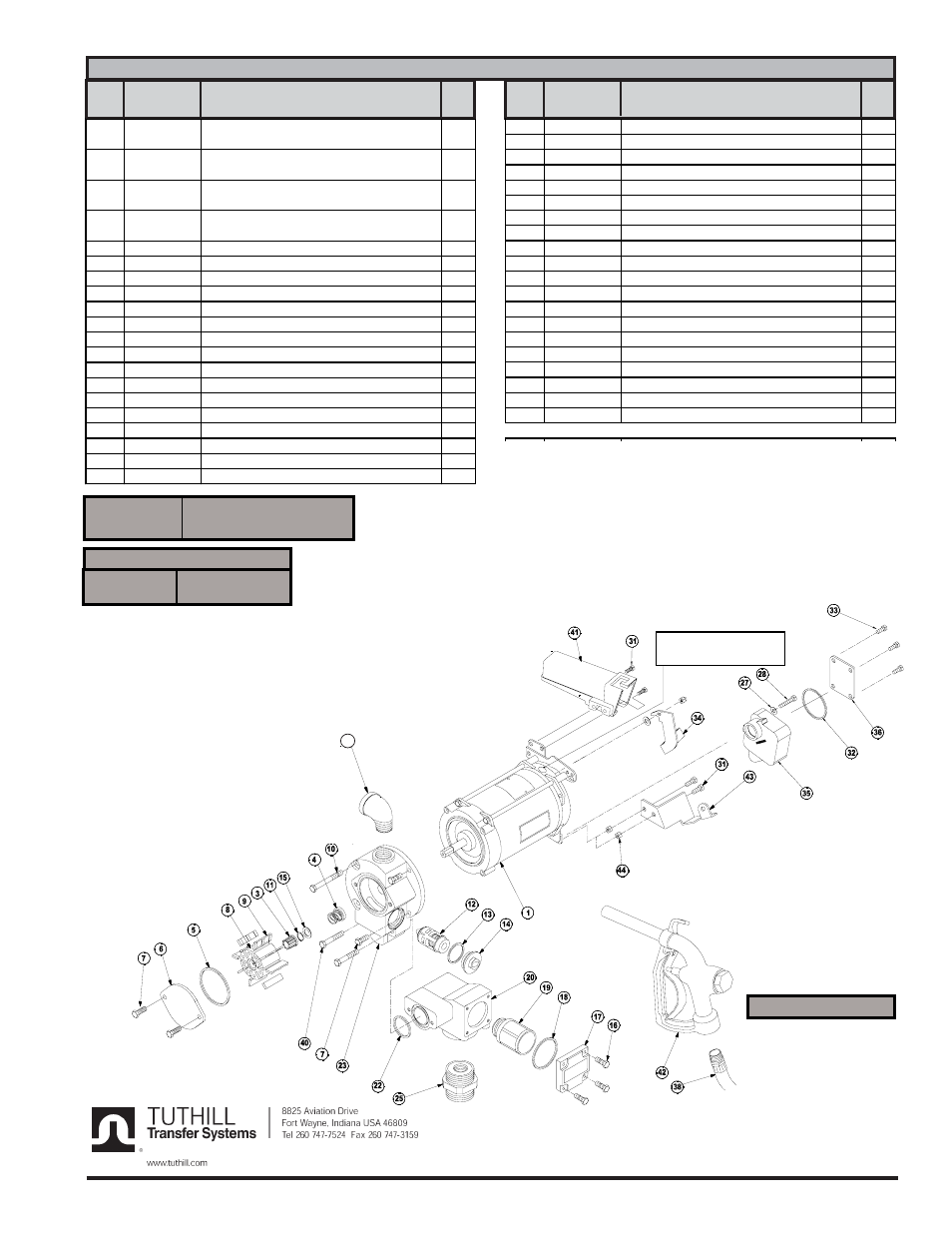

300 SERIES PUMP PARTS LIST
ITM. PART
NO.
NO. DESCRIPTION QTY.
ITM. PART
NO.
NO. DESCRIPTION QTY.
BD300KTH0712 Repair Kit (Includes items 3,
4, 5, 6, 8, 9, 12, 13, 18 & 22)
TH14 Pedestal Kit
BD901MK Meter Kit
A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S
***** Use Teflon® tape
*
*
Date of Manufacture
(Week-Year)
1 300G7376 Motor - 3/4 HP 115/230 VAC, 50/60 Hz 1
(Models FR310, FR311)
300G7375 Motor - 1/2 HP 115/230 VAC, 50/60 Hz 1
(Models FR300, FR301)
300G7638 Motor - 3/4 HP 115/230 VAC, 50 Hz 1
(Model FR310E)
300G8368 Motor - 0.55KW 230 VAC, 50/60 Hz 1
(Models FR311E, FR310J, FR311J)
3 300F7787 Rotor Insert 1
4 300KTH0034 Seal Assembly Kit(Includes Items 11&15) 1
5 300G9285 O-Ring Gasket Flurocarbon (-236) 1
6 700G7063 Rotor Cover 1
7 300G7296 3/8-16 x 3/4 HHCS 2
8 300G8379 Rotor 1
9 300H0532 Vanes 8
10 300F7746 3/8-16 x 3 HHCS 2
11 700F2688 Retaining Ring (Included w/Item 4) 1
12 300F7723 Bypass Valve Assembly 1
13 800F4381 O-Ring Flurocarbon 2-131 1
14 300F7731 Bypass Cap 1
15 30F4660 Seal Washer (Included w/Item 4) 1
16 700F2810 5/16-18 x 7/8 HHCS 4
17 300F7739 Check Valve Cover 1
18 400F0191 O-Ring Gasket Flurocarbon (-231) 1
20 300G8621 Lower Housing 1
23 300F7706 Pump Housing (Models FR300 & FR301) 1
300F8688 Pump Housing (Models FR310 & FR311) 1
25 300F7776 2" x 1 1/2" Tank Adapter 1
27 300G9432 Washer 1/4" Split lock 1
28 300G9273 10-32NC-2B X 1.50 SHCS 1
31 700F2810 5/16-18 x .875 HHCS 4
32 300G9129 O-ring 2-146 1
33 304F7904 1/4-20 1/2 HWHMS 4
34 300F7761 Switch Lever 1
35 300G8967 Junction Box 1
36 300G8971 Junction Box Cover 1
38 300F7773 1" x 12' Hose 1
39 800F4400 1" Street Elbow 1
40 300F7745 3/8-16 x 2 HHCS 2
41 300F7765 Nozzle Cover 1
42 BDH0709 1" Manual Nozzle Biodiesel 1
43 300F7759 Locking Link 1
44 700F2950 5/16 Lock Nut 2
BDH0708 1" Automatic Hi-flow Nozzle opt
1 300G 3 6 M 3/ HP 11 /230 VAC 0/60 H 1
BD300H0654 REV. 0
3
